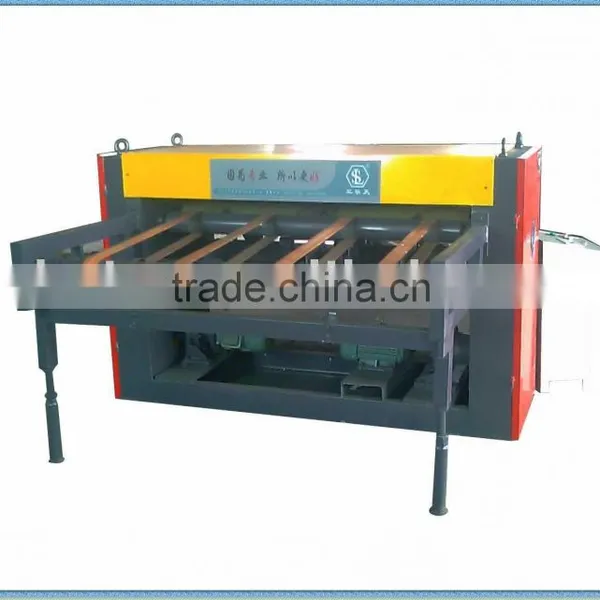

Plywood Machine

Name: Plywood Machine
Brand: Sanletian
SKU: 119382015
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Hebei, China

Brand Name:

Sanletian

Hebei Dahuayu Machinery Manufacturing Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hebei, China

Brand Name Sanletian

Model Number SLC1400C

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Plywood Machine
The conveyor belt connect with veneer peeling lathe, it can do the long-distance transportation.

Type	Max.Cutting Length	Max.Cutting Thickness	Max.Cutting Width	knife’ s Motor Power	Roller’s Motor Power
SLC1400C	1400mm	≤3.2mm	<1400mm	1.5KW	1.5KW
Type	Total Power	Power	Outer Measure		weight(kg)
SLC1400C	3KW	380V±5%.50Hz	2570×1920×1100mm		1000KG
Primary features	1.Equipped with Servo Control System 2.Cut different length veneer, the board quickly cutted at the beginning,then back to cut the normal setting board.The automatic conversion,for which the end long board is cutted into short one,can be adjustable. 3. With the veneer peeling lathe synchronization production, and they form the production-line. 4. The depth of cutting board is between 0.5mm-4.0mm, no adjustment. 5. The conveyor belt connect with veneer peeling lathe, it can do the long-distance transportation. 6. the error of board’s width is 1.5mm, that of board ‘s parallelism is only ±1mm. it’s precision is much better than manual labour.
Product brief introduction	The machine is fit for automatic venneer cutting for the plywood factory or wood processing factory. When continuous peeling veneers of spindleless peeling machine go into rack through a conveyor belt , with the chain transmission between the veneer pressing rack and veneer feeding rack,the veneers go into cutting place.The peeling knife will cut the veneer automatically.The cutted veneer will be sent from the rack to complete the whole process.
