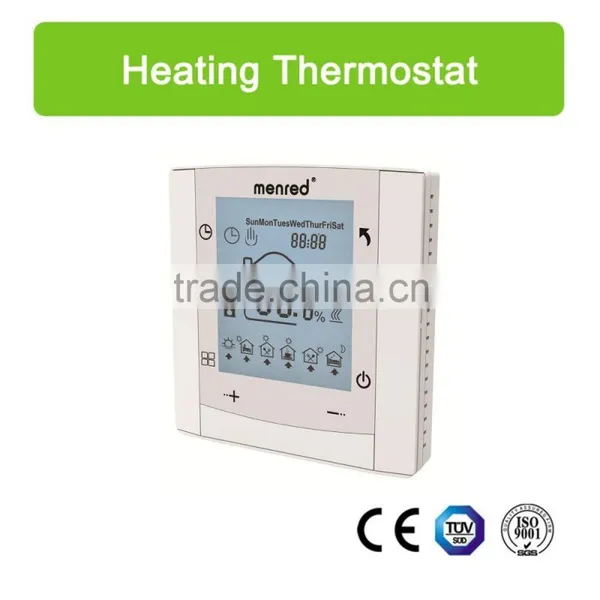

LS7...underfloor Heating System Digital Thermostat
US$ 17.76 - 17.76
MOQ: 320 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Menred
Model Number:
LS7
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RTC70.26 Electronic 16A Thermostats Floor Heating Cable ThermostatUS$ 5.88 - 5.88MOQ: 320 Pieces -
LS6.716 Electric Heating LCD ThermostatUS$ 17.76 - 17.76MOQ: 320 Pieces
-
MEN.APT-10 Heating ThermostatUS$ 10.50 - 10.50MOQ: 288 Pieces
-
MEN.APT-20 Digital Heating ThermostatUS$ 16.50 - 16.50MOQ: 288 Pieces
-
E3... Heating Thermostat With LCD SceenUS$ 12.83 - 12.83MOQ: 320 Pieces
Place of Origin
Zhejiang, China
Brand Name
Menred
Model Number
LS7
LS7... underfloor heating system digital thermostat
Introduction
LCD digital thermostat can select operation mode between manual and energy-saving control. It can be applied to electric heating control or electric valve control in water heating.
Features
> Simple and fast installation
> LCD display with big screen
> Temperature sensor in rotary type
> Low consumption
> Weekly programming
> Quick temperature setting
> Valve cleaning function( water heating)
Technical data
Voltage: AC230V 50HZ
Consumption: < 1W
Terminal Blocks: one terminal can be connected to 2X1.5mm² or 1X2.5 mm² wire at most.
Temperature Range: 5-90℃
Limit temperature range: 16-60℃
Ambient temperature: -10-50℃
Protection class: IP20
Selection Table
| Model Number | Current | Application |
| LS7.713 | 3A | Built-in sensor |
| LS7.723 | 3A | Built-in sensor, Potential-free output |
| LS7.716 | 16A | Built-in& floor sensor, Control and limit the temperature |
