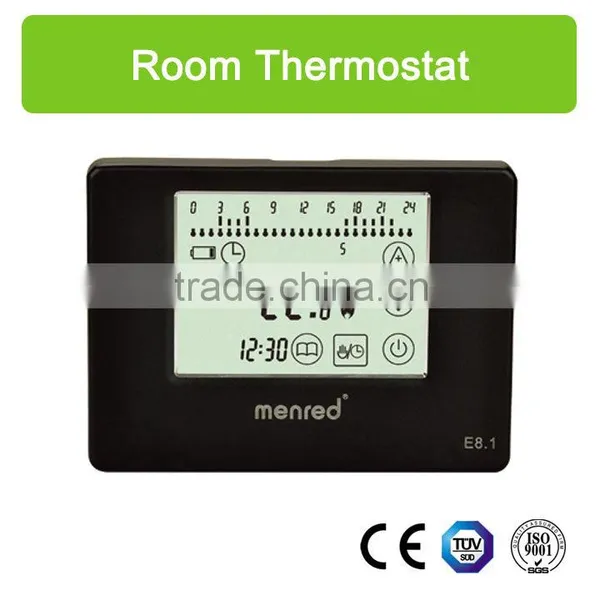

E8... room thermostat with batteries
Introduction
Touch screen thermostat. AL-MG alloy/plastic upper cover with large LCD screen and white backlight. Wall surface mounted.
Application
Apply to underfloor heating systems and direct electric heating systems...
Features
> one-to-one or many-to-one, a variety of solutions. A potential-free connected controlling port.
> Special for underfloor heating or boiler heating.
> Two size AA batteries to ensure the power for one heating season.
> Using magnetic latching relay, low power consumption.
> 24 events every day, 7-day programmable controller.
> Energy-saving temperature and comfort temperature selectable
> Parameter memory, anti-forzen function.
> Key-lock function, low battery indicator.
Technical data
Power supply: DC3V, 2 pieces size AA batteries
Measuring range: 0...95℃
Setting range: 5...90℃
Switching differential: 0.5-5℃ adjustable
Factory setting: ±1℃
Sensor: Internal NTC sensor
Measuring quantity: 1 pcs
Potential free output: Max5A (AC220V resistance load)
Wiring Diagram:
Selection Table
| Model Number | Housing color | Output Type |
| E8.1(black) | black | potential free output max. 5A |
| E8.1(blue) | blue | potential free output max. 5A |
| E8.1(red) | red | potential free output max. 5A |
| E8.2RF(white) | white | 433 MHz frequency output |
| E8.2RF(silver) | silver | 433 MHz frequency output |
