QC12Y-12X3200 Hydraulic Swing Guillotine Shearing Machine

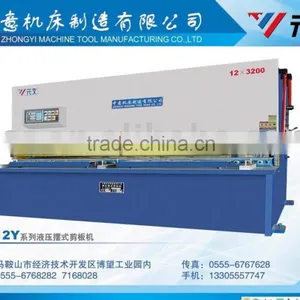

QC12Y-12X3200 Hydraulic Swing Guillotine Shearing Machine thumbnail-1

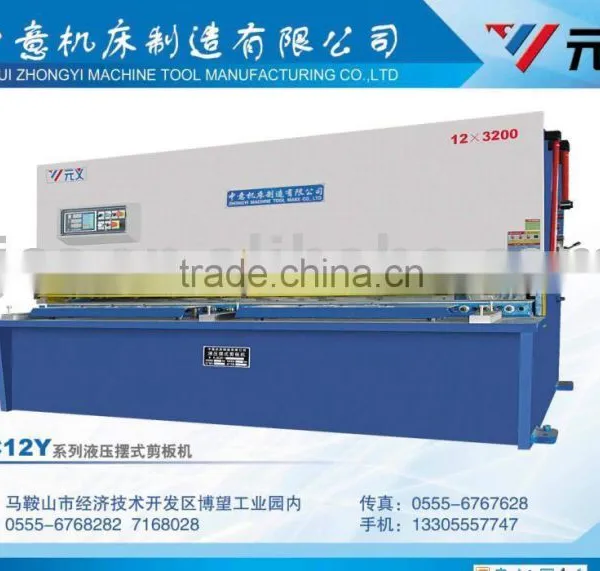

QC12Y-12X3200 Hydraulic Swing Guillotine Shearing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
yuanyi
Contact Supplier Request Quote Chat Now
Anhui Zhongyi Machine Tool Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name yuanyi
Model Number QC12Y-12x3200
Voltage your factory
Rated Power 18.5KW
Dimension(L*W*H) 4000x2100x1940
Weight 9.5T
Certification CE
Warranty 1 year

Specifications

hydraulic system
hydraulic guillltine shearing machine
cutting machine
metal shear
high in rigidity, sturdy durable

Hydraulic swing beam shear (QC12Y)

Detailed Description

  • Metal Shearing Machine
  • Performance:
  • The frame is entirely welded with steel plates, vibration to eliminate stress. With high strength and good rigidity.

     Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.With easy operation, reliable performance and nice appearance.

     There is indicator for adjusting the blade clearance, easily operation.

     There are safety fences in the working area to ensure the personal safety

     There are numerical display for cutting number and the length of back gauge..

Functions and Features

With steel sheet welded structure ,hydraulic drive system ,accumulator back stroke ,it has characters of convenient operation reliable performance,and beautiful appearance.

Clearance between blades has display plates for swift and stepless adjustment

With light-alignment device ,and be capable of stepless adjustment of stroke length of blade rack

Adopt barrier protection arrangement for personnel safety

Back gauge adopt E15 or MD11 digital control system,with characters of low noise and high precision



The frame is entirely welded with steel plates,and treated to relive stress by tempering.

Hydraulic drive.Return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.

The portable and prompt adjuxment of the blades gap and the value of gap are indicate by digital,convenient and fast.

Equipped with lighting-alignment,so as to align when shearing.The stroke of knife beam can be adjuxted in stepless mode.

Protection fence to ensure the operation safety.

The display devices of the backgauge value and the shearing times are on the front of the machine.

nc shearing machine,hydraulic swing beam shear,machine tool

1)Series QC12Y hydraulic swing beam shear adopts steel-welded structure,vibration to eliminate stress ,high rigidity ,sturdy and durable .

2)Hydraulic drive ,swing beam ,return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.

3)The position of lower blade can be adjusted to ensure the proper clearance .

4)Backgauge is adjusted by motor .The stroke of knife can be adjusted steplessly ,conveniently and fast.

5)Roller guide to ensure the quality of cutting sheet-metal.

6)Equipped with light-alignment ,so as to align when shearing .

7)Protection fence and the electric interlocker can ensure the operation safety in working area.

Models you can choose:

Model Maximum shearing thickness
mm		 Maximum shearing width
mm		 Shearing angle
mm		 Sheet strength
n/mm2		 Backgauge station
mm		 Motor Power
kw		 Overall dimensions
mm		 Weight
kg
QC12Y-4x2500 4 2500 130 450 600 4 3100x1405x1500 4300
QC12Y-4x3200 4 3200 130 450 600 5.5 3800x1600x1620 5800
QC12Y-4x4000 4 4000 130 450 600 5.5 4600x1700x1850 7500
QC12Y-6x2500 6 2500 130 450 600 7.5 3100x1580x1550 5800
QC12Y-6x3200 6 3200 130 450 600 7.5 3800x1600x1620 6800
QC12Y-6x4000 6 4000 130 450 600 7.5 4600x1700x1850 8500
QC12Y-6x6000 6 6000 130 450 600 7.5 6650x2500x1980 18000
QC12Y-8x2500 8 2500 130 450 600 11 3140x1590x1570 5800
QC12Y-8x3200 8 3200 130 450 600 11 3800x1750x1700 7500
QC12Y-8x4000 8 4000 130 450 600 11 4600x1900x1780 9600
QC12Y-8x6000 8 6000 130 450 600 11 6680x2550x1990 19800
QC12Y-12x2500 12 2500 140 450 800 18.5 3150x1980x1850 9500
QC12Y-12x3200 12 3200 140 450 800 18.5 3850x2040x1900 11500
QC12Y-12x4000 12 4000 140 450 800 18.5 4650x2380x1980 14600
QC12Y-12x6000 12 6000 140 450 800 18.5 6680x2470x2850 26000
QC12Y-16x2500 16 2500 220 450 800 18.5 3180x2150x1880 11500
QC12Y-16x3200 16 3200 220 450 800 18.5 3880x2450x2030 14700
QC12Y-16x4000 16 4000 230 450 800 18.5 4680x2650x2100 19000
QC12Y-20x2500 20 2500 230 450 1000 30 3180x2420x2020 14800
QC12Y-20x3200 20 3200 230 450 1000 30 3880x2680x2150 19500
QC12Y-20x4000 20 4000 230 450 1000 30 4680x3100x2250 25000
QC12Y-20x6000 20 6000 230 450 1000 30 6750x2350x3600 56000
QC12Y-25x2500 25 2500 3 450 1000 30 3280x2650x2300 19000
QC12Y-32x2500 32 2500 330 450 1000 37 3300x2850x2450 25000
