Introduction of product
The body of J23 series press is made of high-strength cast iron. The slipper uses
V-type guide rail and turnkey rigid clutch. There is a crushing-type protector

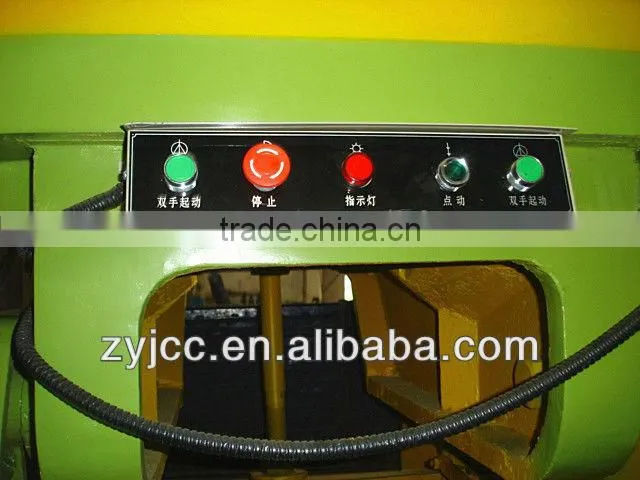

mounted on the slipper, which may protect the whole machine as it overloads. Operation of electrical equipment is controlled by button or footswitch. The electrical
equipment may carry out single and continuous operation. The machine may be altered to pneumatic operation according to needs of clients. Body of the machine may be inclined to a certain angle to let the workpiece slide down by its deadweight at the back of the machine. The machine has the advantages of high versatility, reliable performance and easy operation.
Detailed Description

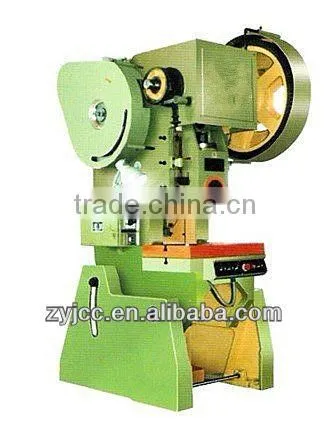

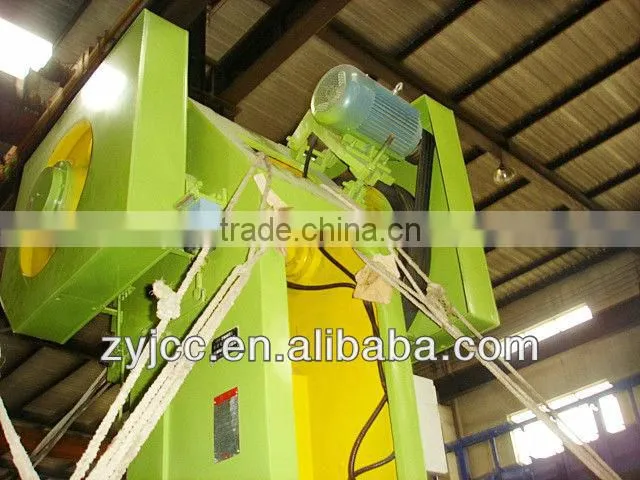

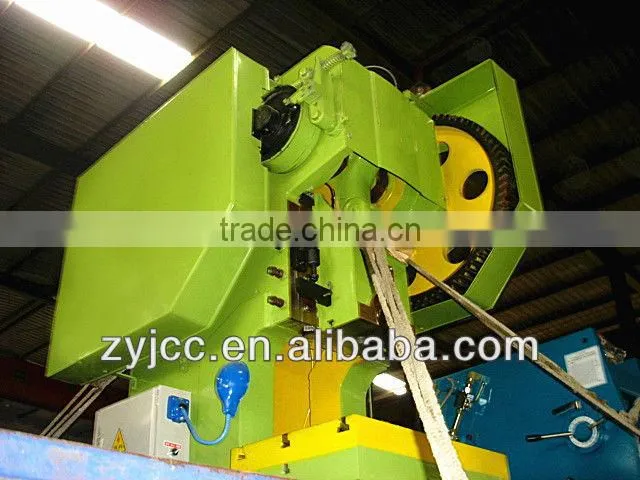

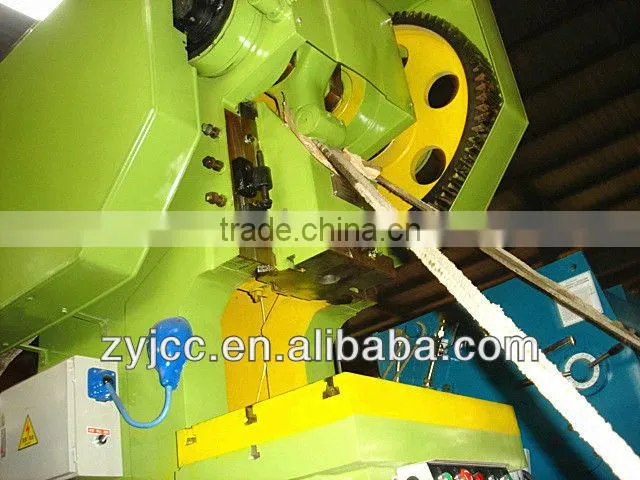

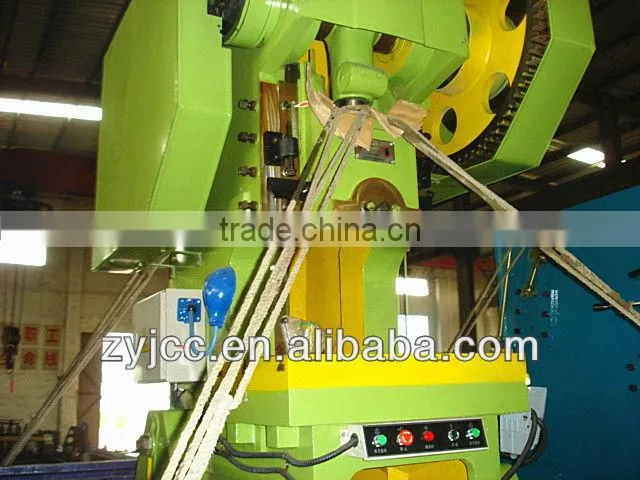

J23 series open-type inclinable press/press machine/press



Specifications:
1) Cast and inclinable frame, to ensure high rigidity and less deformation.

2) Turn-key and rigid clutch, flexible movement and reliable performance.

3) Crankshaft placed crosswise, V-type guides of the slide in high accuracy.

4) Press-collape block device, to ensure safety in press operation.
5) Emergency brake device, to control the slide stop any position within 135 if any occurrence such as the arms, any substances accessing in working area.
6) Photo electric protector, air cushion and other optional accessories can be equipped with the power press according to the users denands.


Main specifications
Model J23-8 J23-12 J23-16 J23-25 J23-30 J23-35 J23-40 J23-63 J23-80 J23-100 J23-160
Nominal pressure Kn 80 120 160 250 300 350 400 630 800 1000 1600
Slide stroke mm 40 50 56 60 70 80 90 120 120 130 140
Strokes per min 180 150 140 120 90 70 65 50 45 38 38
Max. blockade height  mm 140 150 170 190 210 220 230 280 400 480 480
Blockade height adjustment mm 35 40 40 50 65 70 80 100 100 100 100
Distance from block center to frame mm 85 120 130 160 170 170 210 300 300 380 380
Thickness of underlaying plate mm 50 55 60 70 70 70 80 90 90 100 120
Distances between columns mm 130 160 180 200 200 200 260 300 320 530 530
Worktable dimensions Front to Back mm 180 220 260 300 300 330 400 520 600 710 710
Left to Right mm 290 370 410 490 530 540 620 800 900 1080 1160
Dimensions of discharge opening in worktable mm φ80 φ100 120x100 150x130 160x140 160x140 180x218 250x275 340x400 360x430 375x440
Dimensions of ram bottom surface Front to Back mm 82 100 108 127 127 130 180 250 340 360 375
Left to Right mm 82 112 128 160 173 180 218 275 400 430 440
Dimensions of die shank hole Diameter mm φ22 φ25 φ32 φ38 φ38 φ38 φ42 φ50 φ60 φ60 φ60
Depth mm 40 45 45 50 50 50 70 80 80 80 90
Max. inclination degree ° 30° 30° 25° 25° 25° 25° 20° 20° 30° 30° 30°
Motor power Kw 0.75 1.1 1.5 2.2 2.2 3 4 5.5 7.5 11 15
Motor Resolution r/min 1390 1440 1440 1440 960 1440 1440 1440 1440 1440 1440
Gross weight Kg 320 500 750 1100 1500 1800 2300 4300 8000 12000 15000
