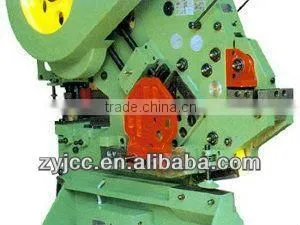

QA34 -16 Mechanical Ironworker , Ironworker Machine
US$ 3,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
J23 Series Open-type Tilting Power PressUS$ 800 - 9,000MOQ: 1 Set -
J23 Series Open-type Tilting Power PressUS$ 800 - 9,000MOQ: 1 Set
-
J23 Series Open-type Tilting Power PressUS$ 800 - 9,000MOQ: 1 Set
-
Mechanical Power Press J21,J23,JH21 Series Press Machine / Punching MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
High Quality Hydraulic Sheet Metal Cutting Machine , Hydraulic Shearing Machine PriceUS$ 1,000 - 50,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Anhui, China
Brand Name
yuanyi
Model Number
QA34-16
Voltage
380V/220V Optional
Power(W)
4KW
Weight
2830kg
Dimension(L*W*H)
2885*1290*2460
Certification
CE ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Features:
The machine adopts mechanical driving, the frame adopts cast steel, steel welded structure which has sufficient strength and rigidith, The machine is an ideal equipment for cutting square bar, angle round bar, Channel and joist, as well as punchine and notching.
Technial Parameters:
| Model | QA35-16 |
| Punching Pressure(T) | 63 |
| Max.cutting thickness of steel pltes(mm) | 16 |
| Plate strength(N/mm2) | ≤450 |
| Angle of Shear | 13 |
| A trip size(T×W)(mm) | 20×140 |
| Slider trip(mm) | 26 |
| Trips frequency(times/min) | 36 |
| Throat depth(mm) | 450 |
| Punch depth(mm) | 16 |
| Max.punching diameter(mm) | 28 |
| Main Motor Power(KW) | 4 |
| Overall diamensions(L×W×H)(mm) | 2885×1290×2460 |
Model you can choose:
| Model | Q35-16 | QA34-25 |
| Punching Pressure(T) | 63 | 110 |
| Max.cutting thickness of steel pltes(mm) | 16 | 26 |
| Plate strength(N/mm2) | ≤450 | ≤450 |
| Angle of Shear | 13 | 11 |
| A trip size(T×W)(mm) | 20×140 | 28×160 |
| Slider trip(mm) | 26 | 36 |
| Trips frequency(times/min) | 36 | 25 |
| Throat depth(mm) | 450 | 600 |
| Punch depth(mm) | 16 | 25 |
| Max.punching diameter(mm) | 28 | 35 |
| Main Motor Power(KW) | 4 | 7.5 |
| Overall diamensions(L×W×H)(mm) | 2885×1290×2460 | 1877×1945×725 |

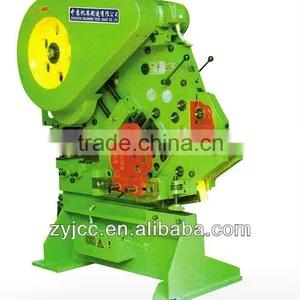

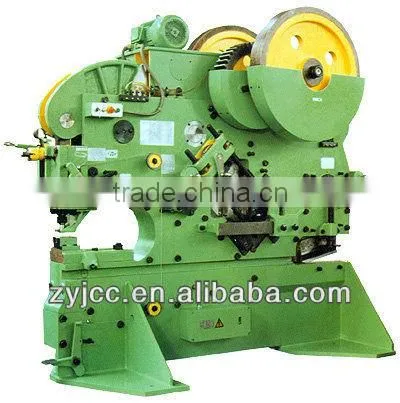

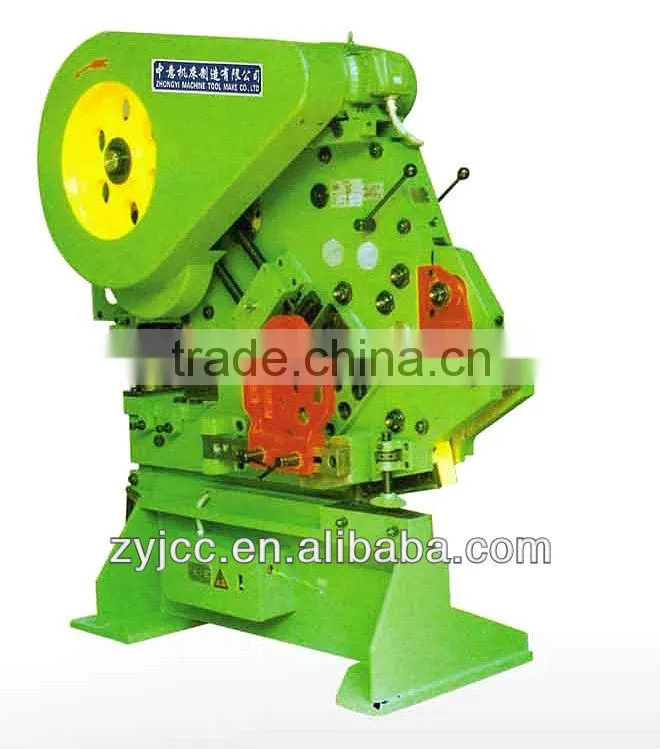

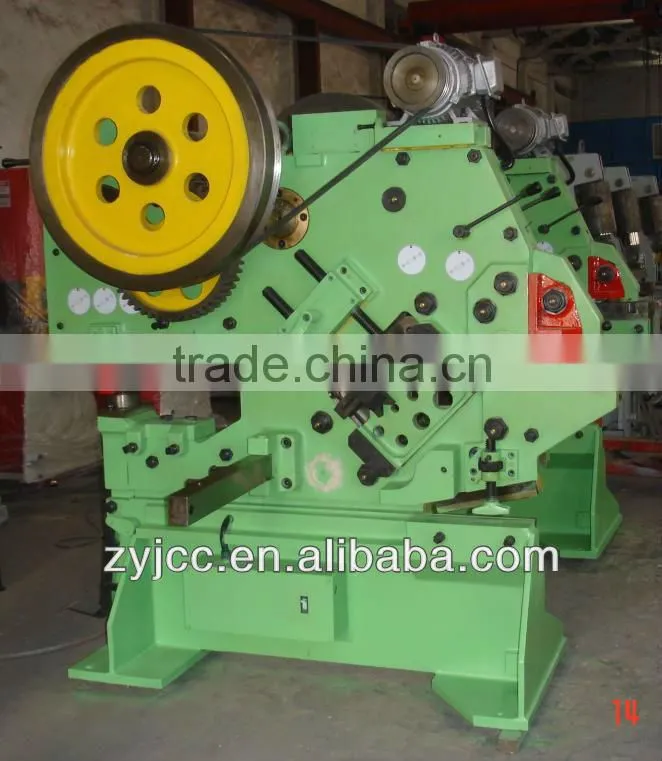

Pictures:
