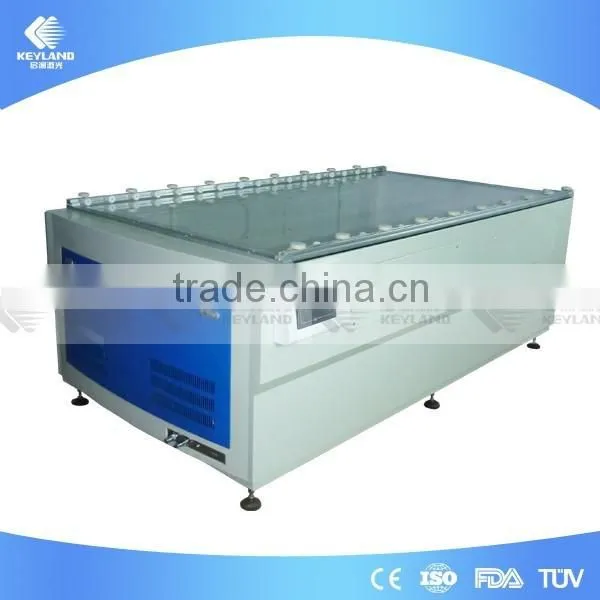

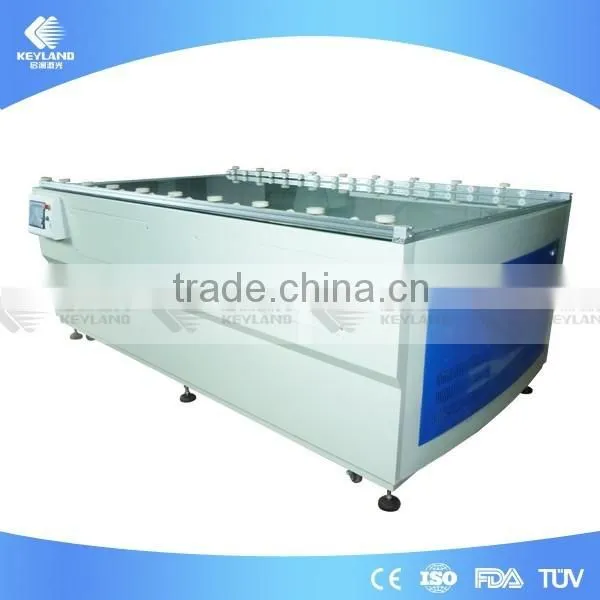

Keyland Small Solar Simulator (Can Customized according to request)
Also Called :Solar Modules Test Machine/Sun Simulator/ solar panel flash tester/I-V PV tester/ xenon lamp solar simulator/ solar panel simulator/ solar system simulator
Solar Panel tester used in:
1.Solar Panel Production Line
2. University /Lab ./ Research Institute and etc
What are Solar panel tester for :
Mainly used in automatic test and result record of solar mono-Si, poly-Si and a-Si cell module's Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh ( Electrical performance test)
**Keyland offers custom large area Sun Simulator Solar Flasher for testing, thin film (both CdTe and CIGS).
Solar panel tester 's Technology characters:
• A grade spectrum
• A grade unevenness degree of irradiance
• A grade instability of irradiance
• Flash pulse 10~30ms, continuous adjustable (100ms for customized)
• 4-line survey,14-bit 4-channel high-speed synchronous acquisition.
•10 parameters display
• 8000 data collecting dots
•Irradiance&Temperature compensating automatically
•Measurement parameter displays in tabulation and graphic way;
•Voice counts off and prompts;
•Counting prompt of flash times;
•24hrs continuous working;
•Working life of imported xenon lamp is 300, 000 times of flash
• Imported PLC control System
*Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.
(Software main interface)
(Exported EXCEL Document)
Type specifications | GTM-5A | GTM-ABB |
Lamp spectrum | In line with IEC60904-9 and JISC8933( Grade A) | |
Range of Light intensity | 100mW/cm2(continous adjustable 70-120mW/cm2) | |
Light intensity non-uniformity | ±2%( A grade) | ±3% |
Instability degree of irradiation | ≤ ±2%(A grade) | ±2% |
Test results consistency | ±0.5% | ±1% |
Test error of electrical proerties | ≤±1% | ≤±2% |
Single flash time | 10~30ms | 10ms |
Effective test range | 2000X1200mm/5w~300w | |
Power Supply | 220V ±10%, 5A/ 2KW/ 50-60Hz | |
Load time | 5 s | |
Light Pulse Duration | 10 ms~30ms | |
Data acquis. Speed per measurement | 20 µs | |
Reference Cell Range | 50 mV | |
Module measurements per hour | 700 | |
Measuring voltage | 0~200V (resolution 1mV) | |
Measuring current | 0~20A (resolution 1mA) | |
Test parameters | Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh | |
Solar panel tester Options:
Manual and automatical sliding tracks match the production line;
Special requests on customization of survey on various solar cell.
Keyland is manufacturer only and good feedback
from our Solar Clients about Solar panel tester .
About Keyland
Before quotation, would you please let me know some items following?
1.What kinds of solar module do you want to test by our Sun Simulator Solar Flasher ?
2.Do you demand semi-automatic or full automatic type?
Then, more details with good price will be sent . Also more industry solution will be supplied.
