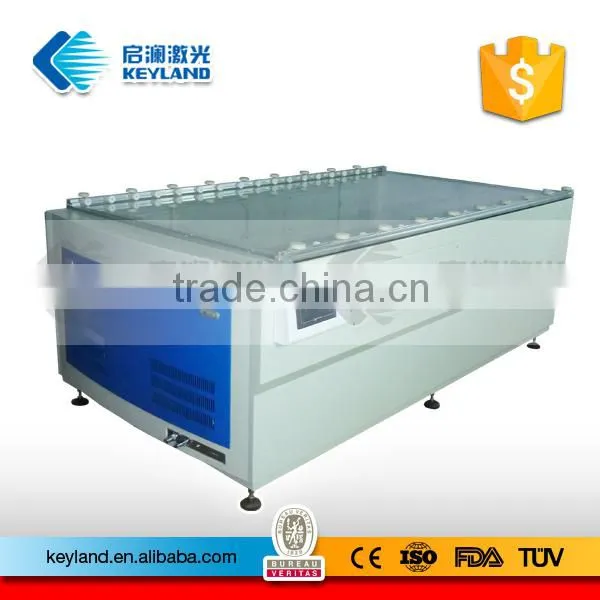

Keyland Sun Simulator Solar Module Tester in photovoltaic module production line
-Solar Modules Test Machine/Sun Simulator/ solar panel flash tester/I-V PV tester/ xenon lamp solar simulator/ solar panel simulator/ solar system simulator
In-line Solar simulator is the most productive in-line Sun simulator ,Xenon Lamp Solar Simulator in the industry.Also Solar Panel Tester is used in Lab. of university.
Solar simulator Application:
Mainly used in automatic test and result record of solar mono-Si, poly-Si and a-Si cell module
Keyland offers custom large area solar simulators for solar panel testing, thin film (both CdTe and CIGS).
Solar simulator Technology characters:
• A grade spectrum
• A grade unevenness degree of irradiance
• A grade instability of irradiance
• Flash pulse 10~100ms, continuous adjustable
• 4-line survey,14-bit 4-channel high-speed synchronous acquisition.
•10 parameters display
• 8000 data collecting dots
•Irradiance&Temperature compensating automatically
•Measurement parameter displays in tabulation and graphic way;
•Voice counts off and prompts;
•Counting prompt of flash times;
•24hrs continuous working;
•Working life of imported xenon lamp is 300, 000 times of flash
• Imported PLC control System
*Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.

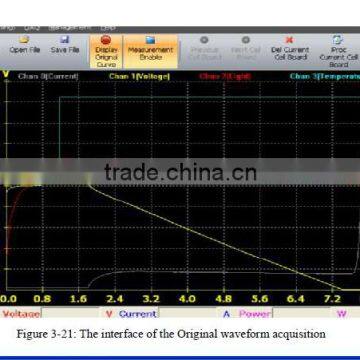

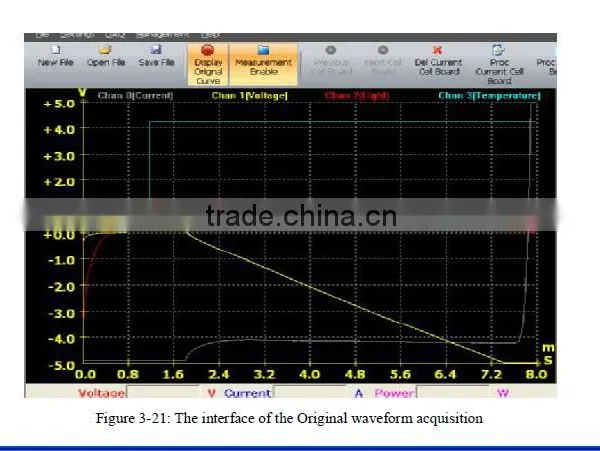

(Software main interface)
(Exported EXCEL Document)
Solar Simulator Options:
Manual and automatical sliding tracks match the production line;
Special requests on customization of survey on various solar cell.
Type specifications |
GTM-3A |
GTM-B |
Lamp spectrum |
In line with IEC60904-9 and JISC8933( Grade A) |
|
Range of Light intensity |
120mW/cm2(continous adjustable 20-120mW/cm2) |
|
Light intensity non-uniformity |
±2%( A grade) |
±3% |
Instability degree of irradiation |
≤ ±2%(A grade) |
±2% |
Test results consistency |
±0.5% |
±1% |
Test error of electrical proerties |
≤±1% |
≤±2% |
Single flash time |
10~100ms |
10ms |
Effective test range |
2000X1200mm/5w~300w |
|
Power Supply |
220V ±10%, 5A/ 2KW/ 50-60Hz |
|
Load time |
5 s |
|
Light Pulse Duration |
10 ms~100ms |
|
Data acquis. Speed per measurement |
20 µs |
|
Reference Cell Range |
50 mV |
|
Module measurements per hour |
700 |
|
Measuring voltage |
0~200V (resolution 1mV) |
|
Measuring current |
0~20A (resolution 1mA) |
|
Test parameters |
Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh |
|
Options:
Manual and automatical sliding tracks match the production line;
Special requests on customization of survey on various solar cell.
Sun simulator ,Xenon Lamp Solar Simulator ,iv test machine 's application filed:
1.Solar module production line
2. Research, school laboratory
About Keyland
PV Module Test Machine agent wanted all over the world.
Contact Lucia Lv freely; Our good quality,comprehensive service and competitive price will be sent with details.
Hope to help you expand your marketing
