Specifications
EVA Glass Laminating Machine for Solar Panel Laminating1.Control by panel
2.Oil-heated
3.High vacuum
4.Easy to operate

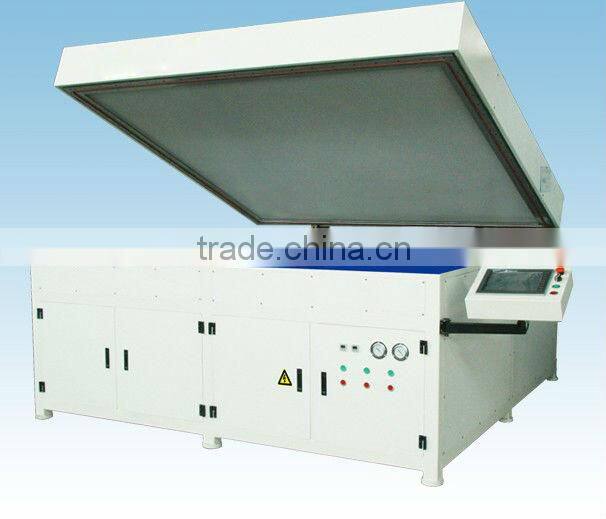

EVA Glass Laminating Machine for Solar Panel Laminating
|
Technical parameter |
Power:AC380V 3 Phase five line |
Control way |
Touch screen |
||
Mode of heating |
Oil |
Control Method |
AUTO/MAN |
||
Degree of vacuum |
200----20Pa |
Lid height |
Max 500mm |
||
Way of temperature control |
PLC Intelligent Temperature Control |
Temperature control precision |
≤±1°C |
||
Laminated cavity height |
20mm |
Temperature uniformity |
±1.5°C |
||
Compressed air pressure |
0.6----1.0MPa |
Compressed air flow |
0.42-0.8m³/min |
||
Evacuation time up to operating pressure |
5----6 minutes |
Laminating time |
2----4 minutes
|
||
|
Characteristic
|
Mode of heating |
High temperature thermal oil heating,Intelligent PID Control,Good temperature uniformity.
|
|||
|
Lamination pressure: Adjustable pressure,range0.02----0.1MPa
| |||||
|
Structure |
Feed in/ out mode |
Chain drive and locate system control in same time, efficient,full automatic control.With cleaning brush,clean the belt surface at any time.
|
|||
|
Way openings:Hydraulic chain lift arms,high balance,Secure and Reliable.
| |||||
|
Heating plate design:High manganese steel,flatness indeformable,oil by-hole loop structure,fast heat conduction,high heat efficiency.Small changes in temperature of the boards in laminating process.Smooth board,will not scratch the components, high formation, Laminate is not easy to pieces. | |||||
|
Design feature |
The overall structural design with high strength,fully meet the long term high temperature and pressure environment. Equipment components are well-known international manufacturers, low failure rate. Cover with unique design of anti-rubber fold, effectively extend the service life of rubber. Non-toxic environmental protection high temperature silicone rubber with high resistance to tear, replacement sheet is used quick snap feature, make more efficient and more convenient replacement sheet. The up flange design, easy to replace the rubber.Laminated platform above the border, sealing tape on the home and prolong life. Independent heating system, easy to observe, operation, maintenance. |
||||
