6.1 / 8.3 / 16 Megapixel Camera Electroluminescence EL Solar Panel Defect Testing Machine Quality Choice
US$ 12,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KEYLAND
Model Number:
KEL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/be appointed
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Keyland Electroluminescence Solar Module Inspection MachineUS$ 5,000 - 15,000MOQ: 1 Set -
Made in China Solar Module EL Defecting Testing MachineUS$ 5,000 - 55,000MOQ: 1 Set
-
Keyland Solar Module El Defecting MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Keyland Solar Testing Equipment El for Broken Solar Panel TesterUS$ 5,000 - 15,000MOQ: 1 Set
-
Keyland Solar Module El Test Equipment for Solar Panel Defect DefectorUS$ 5,000 - 15,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
KEL
Power
Electronic
Usage
Auto Testing Machine
6.1 / 8.3 / 16 Megapixel Camera Electroluminescence EL Solar Panel Defect Testing Machine
Application
KEYLAND KEL series solar module tester uses electroluminescence (EL) measurements to identify microcracks and other invisible defects in modules. The testers utilize cooled near-infrared CCD camera technology to image each solar cell in pv module.
| Defects | Welding spots | Microcrack | Mixed current grade | Cell processing defects | Row materials pollution | Low current EL testing(0.8A-8A) | Pseudo Soldering |
| Yes/No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Features and Benefits
- Reveals invisible defects such as microcracks, finger defects and low-current output areas in
modules
- Improves line yield by identifying defective modules prior to lamination
- Improves quality and reliability of final product
- Exceptional optical resolution in its class
- Flexible system configuration allows testing of framed or unframed modules, before or after
lamination
Software Functions
English interface
What is Specifications of Our Solar Module Testing Equipment?
| Operation table height | 950mm |
| Capture Mode | Single camera/ Dual camera optional |
| Caramer type | High Performance Cooled CCD Camera with Air cooling system |
| Module laying platform | Ultra toughened glass |
| Max testing area | 1200*2100mm / 48"x84" |
| Resolution | 8.3 Megapixels / 16 Megapixels |
| Sensitivity | can detect crack width less than 0.2μm |
| Exposure time | 0 ~ 9s continuously adjustable |
| Image acquisition time | 1-60s adjustable |
| Power supply | 220V 10A |
| Configuration | 1set machine frame |
| 1set SONY infrared camera | |
| 1set Industrial-grade near-infrared optical module | |
| 1set Computer | |
| 1set User manual | |
| Software functions | Barcode scanning input File name auto saved acc. to barcode Auto save defects classification easy to check |

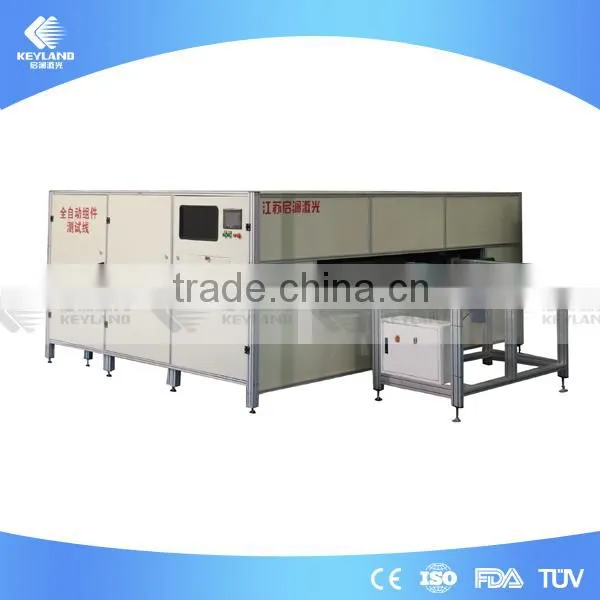

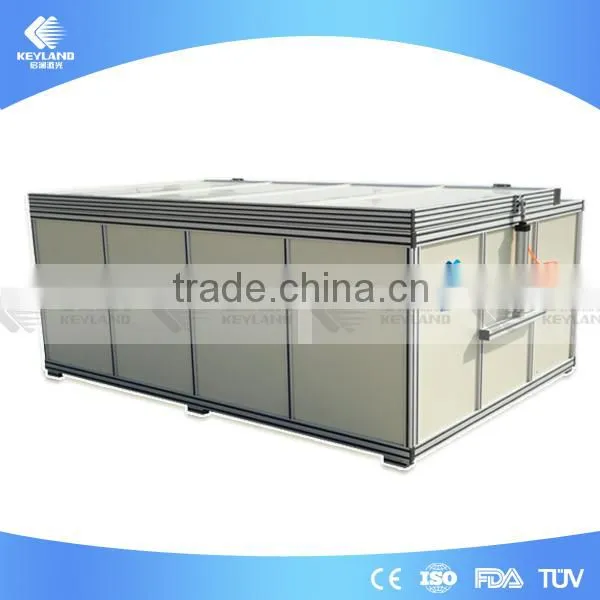

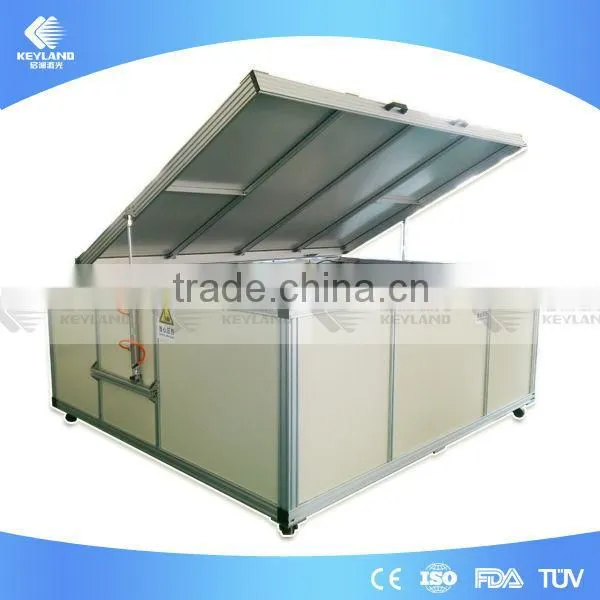

EL tester Photos
- Inline
- Offline

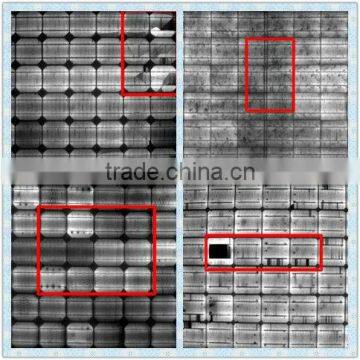

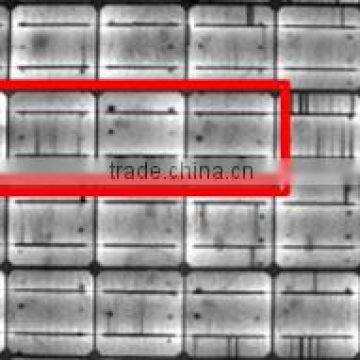

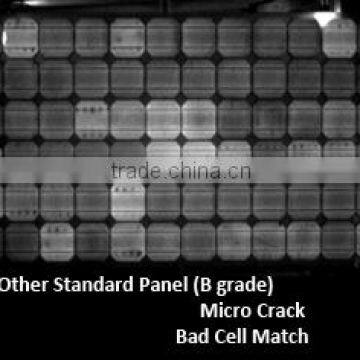

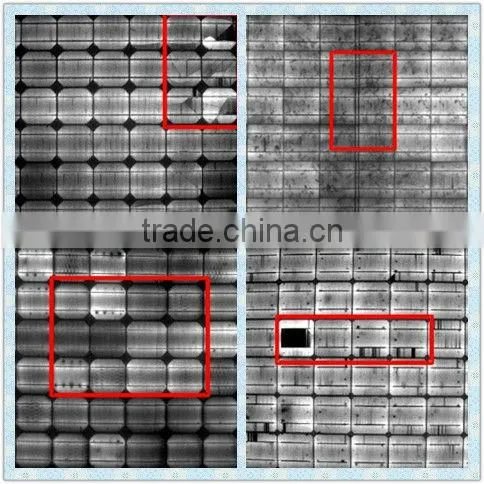

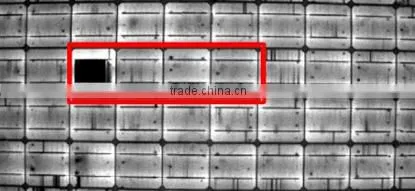

Work sample
DEMO VIDEOS
(copy the link to new tab to watch)
| EL tester demo video | http://youtu.be/TpCiaetuupY |
| EL operating demo | http://youtu.be/Dlddi2KaEJQ |

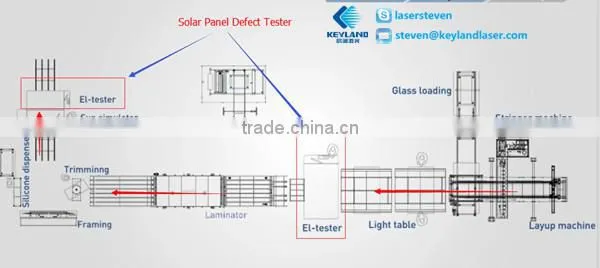

| Full automatic line | http://youtu.be/FyLiqsK0zCI |
