Solar Modules Inspection 8.3 / 16 Million Pixel Japan NIR Camera EL Solar Panel Defects Tester
for Crack Testing in Automatic / Manual Solar Panel Production

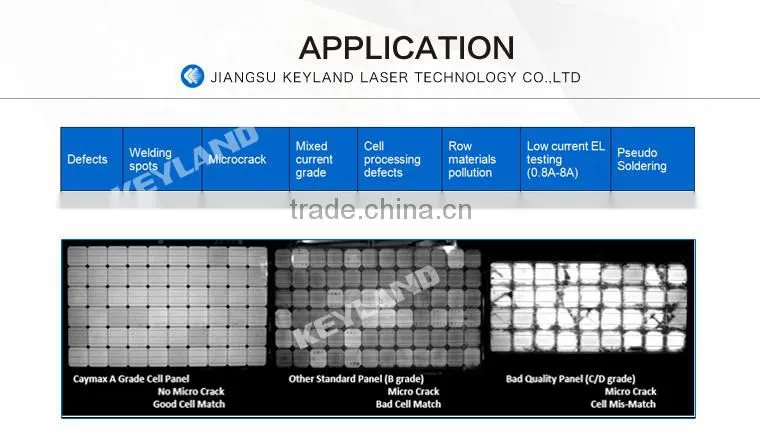

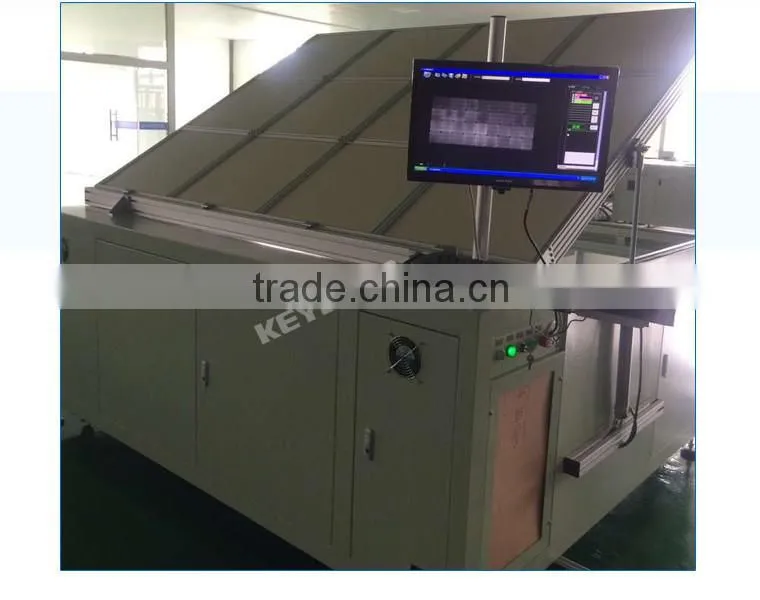

KEYLAND KEL series solar module tester uses electroluminescence (EL) measurements to identify microcracks and other invisible defects in modules. The testers utilize cooled near-infrared CCD camera technology to image each solar cell in pv module.
Testing scope : 1200x2000mm
Test Power: 0~20A 0~100V

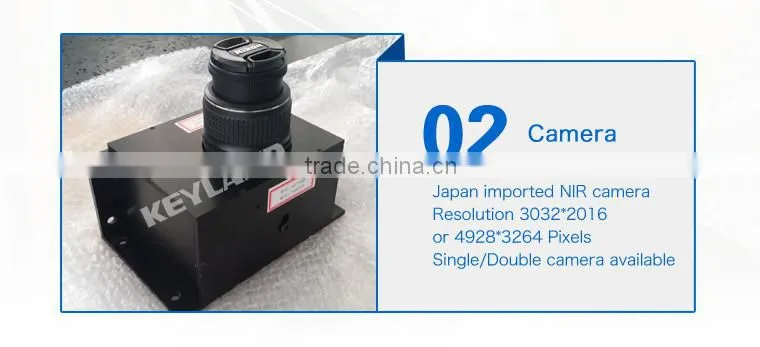

Camera:uses near-infrared 600W pixel optics camera(option)
Who need to use Keyland Solar Detector ?
- Solar panel production line
- Seller or re-seller of solar panels
- Lab. / R&D
- University
Keyland solar El defects Tester can be applied before and after lamination process ,
Defect Tester is an important and effective process monitoring and testing equipment.
Main technical characteristics:
- 1. High-sensitivity, high-resolution near - infrared camera
- 2. High signal-to-noise ratio cooled CCD sensor
- 3. Exposure time 1s to 60s (adjustable settings) to facilitate different testing needs
- 4. High transmittance lens apparatus
- 5. Short circuit protection, high-performance and stable constant current / voltage source
- 6. Unique probe design mode allows successful power modulelocations in the greater error
Option
1. Seamless joint with the assembly line, the detection process is fully automatic

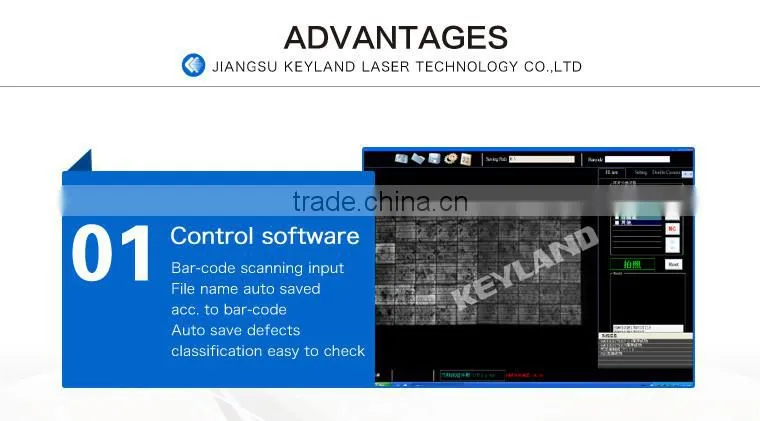

2. Automatically identify defects by software
Video by our Keyland Solar Defect Detector Machine :
http://youtu.be/or0tkRTmd4M
http://youtu.be/_wHzhUDjosM

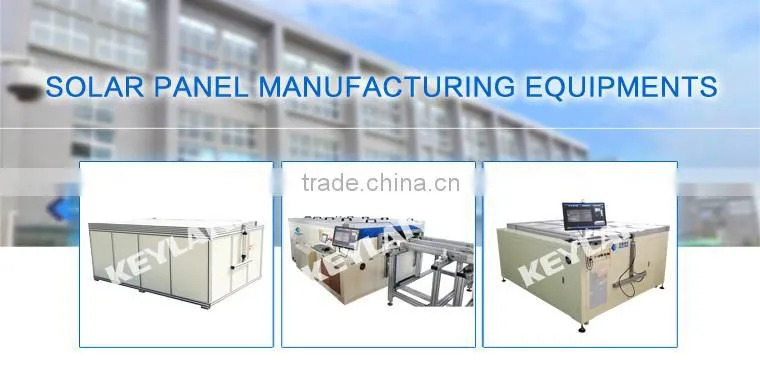

Keyland also manufacture solar panel making line equipments:
- Solar Cell Laser Scribing Machine
- Solar Cell Tester
- Solar Simulator for solar panel tester
- Solar El Defector / Solar EL PV Testing Machine
- Solar Framing machine
- Solar Laminator
- Solar HIPOT
- tester
CLICK "CONTACT SUPPIER" or "SEND MESSAGE"to send offer to me through alibaba.
