Sun Simulator Flash Lamp Solar Cell Test Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KEYLAND
Model Number:
GTC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Shenzhen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Efficiency Analyzer Solar Cell Sun Simulator Testing EquipmentUS$ 10,000 - 15,000MOQ: 1 Set -
Xenon Lamp Flash Solar Cell Sun Simulator Testing EquipmentUS$ 10,000 - 15,000MOQ: 1 Set
-
Touch Screen Flash Test Solar Cell Sun Simulator With PrinterUS$ 9,500 - 15,000MOQ: 1 Set
-
High Performance AAA Solar Cell Tester With Data PrinterUS$ 10,000 - 15,000MOQ: 1 Set
-
KEYLAND AM1.5 Solar Cell Tester AAAUS$ 10,000 - 15,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GTC
Power
Electronic
Usage
Auto Testing Machine
Sun Simulator Flash Lamp Solar Cell Test Machine
Application
The KEYLAND Solar Cell Test Machine measures current-voltage (I-V) characteristics of cells with dimensions up to 156 mm x 156 mm at 1 sun intensity. Using a flash lamp to simulating sun light to irradiate solar cells.

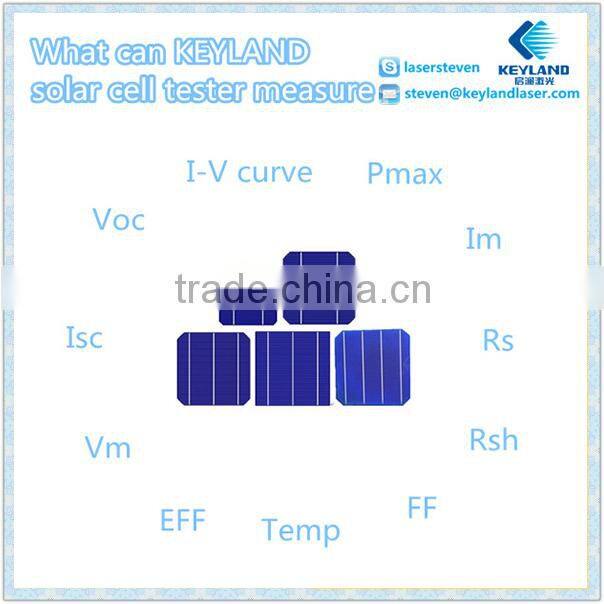

Measuring parameters
| SL | Parameters |
| 1 | I-V/P-V characteristics under illumination |
| 2 | Open circuit voltage (Voc) |
| 3 | Short circuit current (Isc) |
| 4 | Maximum power (Pmax) |
| 5 | Maximum Power Current (Im) |
| 6 | Maximum Power point Voltage (Vpm) |
| 7 | Module/Cell Efficiency (EFF) |
| 8 | Filling Factor (FF) |
| 9 | Series Resistor (Rs) |
| 10 | Shunt Resistor (Rsh) |
| 11 | Module temperature (Temp) |
| 12 | Intensity of illumination |
| 13 | Date and time of measurement |
| 14 | Serial number of module |
Features
- Simulating light comply to IEC60904-9/JISC8933 AM1.5.
- Made in Germany high power pulsed xenon lamp.(100,000 times flashing). It can keep records of flashing times.
- 14 high-speed synchronous acquisition card for data collection.
- Manual/Automatic input temperature compensation.
- Automatic Light intensity compensation.
- Manual input parameter compensation.
- I-V curve indicate the parameter measurement.
- Voice count off & voice prompt the test result.
Measuring data can be exported in excel and printed.
Specs
| Model | GTC-5A | GTC-B |
| Solar simulator | Comply to IEC60904-9/JISC8933 | |
| Light intensity | 100mW/cm²(20-120mW/cm² adjustable) | |
| Degree of ununiformity | ≤±2% | ≤±3% |
| Degree of instability | ≤±2% | ≤±2% |
| Degree of test result conformity | ≤±0.5% | ≤±1% |
| Error tolerance of electrical properties | ≤1% | ≤±2% |
| Pulse width | 10-30ms | 10-30ms |
| Effective inspection range | 200x200mm, 0.1W-5W | |
| Testing voltage | 0-0.8V (resolution 1mV) measuring range 1/16384 | |
| Testing current | 0-20A (resolution 1mA) measuring range 1/16384 | |
| Testing parameters | Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh | |
| Light output direction | Vertical downwards | |
| Measurement mode | Four-wire measurement | |
| Measurement interval | 3s/pc | 5s/pc |
| Measurement temperature | 15-35°C | |
| Measurement parameters | Isc, Voc, Pmax, Vm, Im, Ir, FF, EFF, Temp , Rs, Rsh | |
| Equipment dimension | 600*750*1720mm | |
| Optional accessories |
Double grid line/ three grid line / Zero grid line Automatic sorting reminder Printer |
|

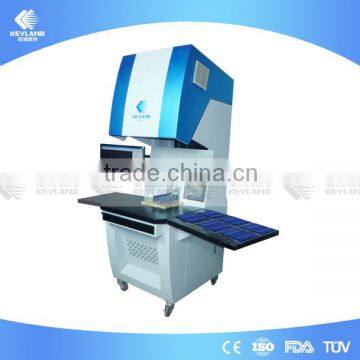

Photos
Work sample
DEMO VIDEOS
| Solar cell testing sorting machine | http://youtu.be/R5b5yHnWsNA |
| Solar cell tester operation | http://youtu.be/Uga3IZI4D7s |
Company View
Contact
More details about KEYLAND Solar Cell Test Machine please contact us.
