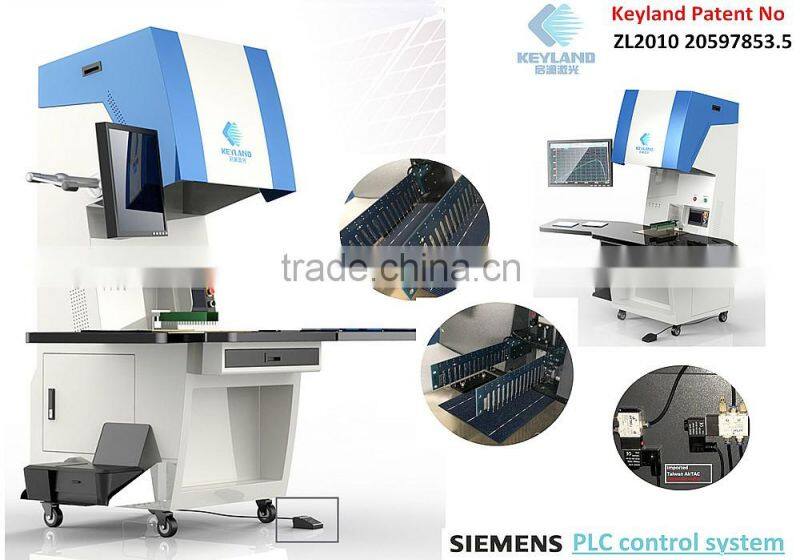

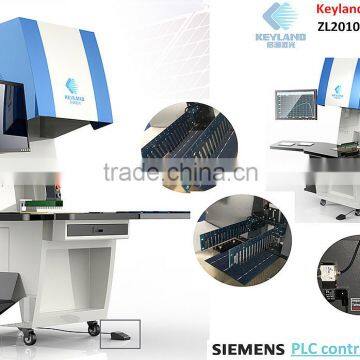

Keyland 10ms Sun Simulation for Solar Cell Testing
4-Grid-Line Reverse Current Solar Cells Testing
Sun Simulation for solar cell testing is Mainly used in automatic test and result record of solar mono-Si, poly-Si solar cell
Testing Range:0.1-5W 200mm*200mm
Xenon lamp liftspan is ≥100,000 times
ONline Full Automatic Solar Cells tester an be supplied according to your full solar line
Spec. of Sun Simulation for solar cell testing :
Model |
GTC-3A |
GTC-AAB |
Lamp Spectrum |
In line with IEC60904-9 and JISC8933( A Grade ) |
|
Light intensity |
100mW/cm2 (continuous adjustable range 20-120W/cm2) |
|
Light intensity non-uniformity |
≤±2% A grade |
≤±3% |
Instability degree of irradiation |
≤±2% A grade |
≤±2% |
Test result consistency |
≤±0.5%A grade |
≤±1% |
Test error of electrical properties |
≤2% |
|
Single flash time |
10-30ms |
|
Effective Test range |
200x200mm/0.1-5W |
|
Measuring voltage |
0~0.8V(resolution 1mV) |
|
Measuring current |
0~20A(resolution 1mA) |
|
Test Parameters |
1sc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh |
|
Options of Sun Simulation for solar cell testing :
To satisfy the test requirements of double grid lines,3-grid-line,0-grid-line ,4-gfrid-line.
Technology characters of Sun Simulation for solar cell testing :
A grade spectrum;
A grade unevenness degree of irradiance;
A grade instability degree of irradiation;
A grade test error,
A grade repeat test error;

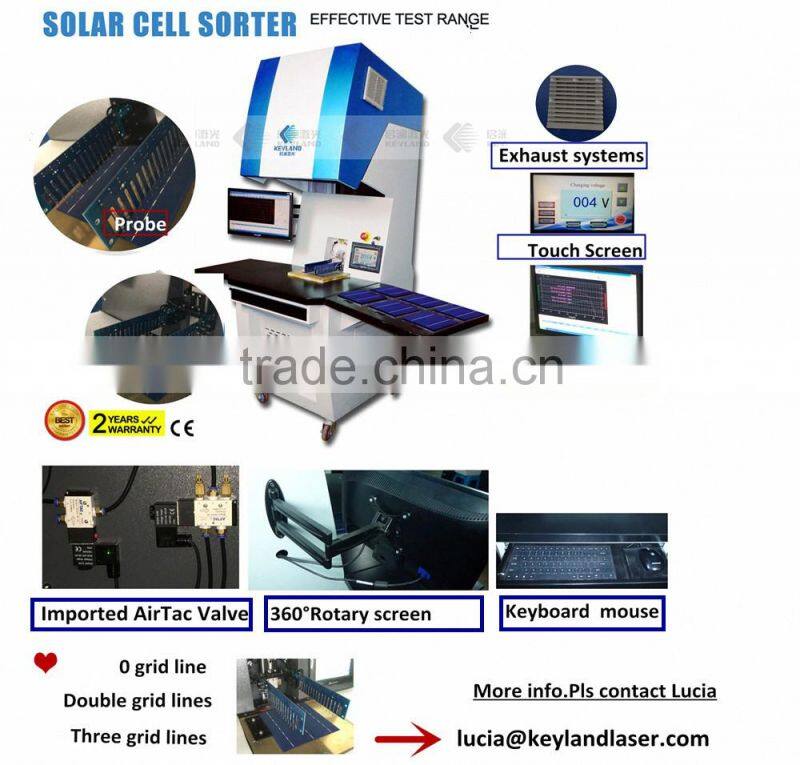

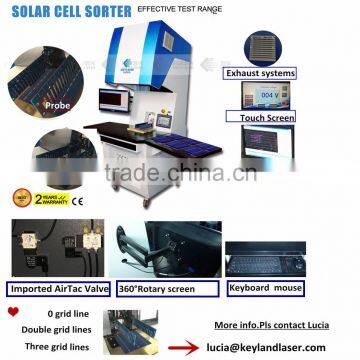

HMI and PLC intelligent control,touch screen control;
Built-in host,industrial integration design,and more in line with the industrial application environment;
360 degree freely show frame,facilitate date collection.
Pneumatic and buffering contact, front probe contact, back contact
4-line survey,14-bit 4-channel high-speed synchronous acquisition
10 parameters display;8000 data collecting dots
Irradiance&Temperature compensating automatically
Measurement parameter displays in tabulation and graphic way;
Voice counts off and prompts; Counting prompt of flash times;24hrs continuous working;
By the way, we also manufacture a series solar panel production line machines:
Service & Train of Sun Simulation for solar cell testing in our clients factories
Video by our Keyland solar Equipments
Video by our Solar Panel Making Line VIDEO FROM YOUTOBE
Step 1 | |
solar cell tester and sorter |
http://youtu.be/MSrkobsylco |
Step 2 | |
Solar cell scribing Processing |
http://youtu.be/pAb8eW0Qby0 |
Step 3 | |
Full Automatic Solar tabbing ans string |
http://youtu.be/UpK_Qm7I27Y |
Ribbon cutting |
https://youtu.be/XAVlA2d4Ki8 |
Solar cell string welding |
http://youtu.be/c3D-lOTIPLc |
Solar cell single welding |
http://youtu.be/zjmC9HVnfDs |
Solar cell bus bar welding |
http://youtu.be/OP7KP_5mcwI |
Step 4 | |
EVA TPT cutting |
https://youtu.be/watySlfaQCI |
Solar EVA TPT Laying |
http://youtu.be/OiTKxQjAet4 |
Automatic layout |
https://youtu.be/QGgPz2zc7pM |
Step 5 | |
Solar EVA TPT Laying |
http://youtu.be/OiTKxQjAet4 |
Inspection |
https://youtu.be/4lF5AyGP22I |
Solar Trimming |
http://youtu.be/-dMiAQzDHCs |
Step 6 | |
Solar Lamintor |
|
Step 7 | |
solar simulator |
http://youtu.be/cS1d4i1Y4G8 |
Automatic solar simulator and EL tester |
http://youtu.be/or0tkRTmd4M |
Full Automatic Solar EL Tester |
http://youtu.be/_wHzhUDjosM |
Step 8 | |
Solar Framing Machine |
http://youtu.be/kqK8VpAvAxo |
Glue on Solar Module |
http://youtu.be/Q2P5d5Mt5PM |
Junction box installation |
http://youtu.be/Keim3fiX4bs |
|
Terminal box filling glue machine Junction box gluing machine |
http://youtu.be/IJgVnVhSVHg |
Keyland OverSea Service
Welcome to contact Lucia Lv for more details
We will design suitable solar line project with competitive cost to you .
Hope to buid cooperation
NEWS♥
1.Our own 300MW solar panel making line has built in LA USA NOW.
2.1MW Solar panel production line has built in Turkey
3.5MW Solar panel manufacturing line has built in India
Why Choose Keyland for solar equipment & Line?
1. On-site engineers :More than 5 years for solar field
2.Engineers Professional /Understand-English
3.We are BIG manufacturer,but not trading company.
4.Our service is not only for on-site service,but our warranty is lifespan.
Professional Solar Line Solution-Professional Engineer Team
To help you build a low cost /steady /hi- efficient project.
5.Be care, absconding with money's small trading companies.
Cooperation with us ,your business in safe; Your money in safe.
