Product Details
Place of Origin: | Guangdong, China | Brand Name: | ASEP | Model Number: | AP-500 |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 385*240*145mm |
Weight: | 7KG | Input Voltage: | 145V~280V | Output Voltage: | 220V±10% |
Type: | DC/AC Inverters | Output Frequency: | 50Hz | Output Current: | about 9 A |
Product Description
500W Power Dc To Ac 12V/220V Inverter With Charger
Item No. | AP-500 | AP-1K | AP-2K | AP-3K | AP-5K | |
Series Name | Off-Grid Inverter | |||||
Rated Capacity | 500W | 1KW | 2KW | 3KW | 5KW | |
Input | ||||||
DC Input Voltage | Nominal DC input voltage | 12VDC | 24VDC | 48VDC | 48VDC | |
Backward noise current | ≤10% | |||||
AC Input Voltage | AC input voltage | 145V-280V 50Hz | ||||
maximum input current | 7A | 12A | 18A | 35A | ||
AC Output | ||||||
Output Voltage | 220V±10% | |||||
Output Frequency | 50Hz | |||||
Output Waveform | Pure Sine Waveform | |||||
Waveform Distortion | ≤5% | |||||
Dynamic Reaction Time | ≤40MS | |||||
Power Factor | 0.9 | |||||
Protection Methods | ||||||
Overload Capability | 120% Fullload lasting for 10S | |||||
Overload protection | √ | |||||
Short Circuit Protection | √ | |||||
Functions | ||||||
Invert Efficiency | ≥83% | ≥85% | ≥90% | ≥90% | ||
Transfer Time | ≤6MS | |||||
Rechage | Intelligent Recharge will adjust automacticly according to the battery capacity. Maximum 12A. | |||||
Batteries Protection | Automatic testing,Over discharge protection,Overcharge protection, Intelligent management | |||||
Physical | ||||||
Shipping Weight | 7KG | 12KG | 24KG | 29KG | 43KG | |
Shipping Width | 385MM | 385MM | 515MM | 515MM | 435MM | |
Shipping Height | 240MM | 240MM | 383MM | 383MM | 220MM | |
Shipping Depth | 145MM | 145MM | 245MM | 245MM | 430MM | |

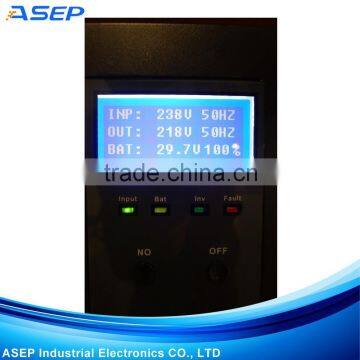

Display Monitor | LCD(Standard),Displaying Utinity Power condiction, inverting condiction,load capacity and battery capacity | |||||
Environmental | ||||||
Operating Temperature | 0℃~40℃ | |||||
Operating Relative Humidity | 0%~90% Non Condencing | |||||
Conformance | ||||||
Regulatory Approvals | ISO9001 | |||||
Standard Warranty | 1 YEAR |
Features:
- 1. Pure sine wave Output, applicable in various field
- 2. More stable, safer industrial online system
- 3. CPU with dual core, Better performance.
- 4. Availability of wide range of input voltage, AVR available
- 5. Protection against overload, short circuit, over/lower voltage, over-heat
- 6. LED+LCD display, evident showing
- 7. Extended batteries group available for prolonging back-up time
- 8. Intelligent battery management with over-charge and over-discharge protection

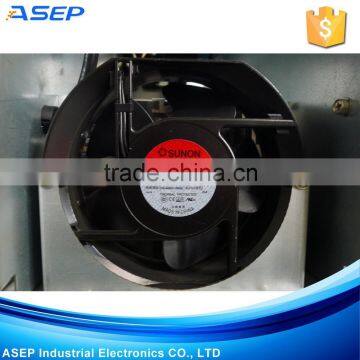

- 9. Temperature controller adjusting cooling ventilation, reducing noise
- 10. High efficiency of transferring, diminishing energy loss, increasing stability
Product Advantages
After-sales service
A. Remote Technical Support (those with WIFI module installed);
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided.
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
