Desktop double head fabric invitation card flatbed 50w laser cutting / cuting machine / equipment 1390 1612 1325 best price
with 6040 1060 1390 1410 1612 1318 1325 Model
laser engraving cutting machine / laser cutting machine / laser engraving machine / laser cutter / laser engraver / laser cutter machine
600x400mm ,1000x600mm ,1300x900mm ,1400x1000mm ,1600x1200mm ,1300x2500mm working scope
Laser cutting machine is suitable for leather MDF Wood Acrylic nonmetal cutting / Engraving / hollowing.
Laser machine styles :
|
|
|
| Large scale laser machine | Laser engraving cutting machine | Auto feeding laser cutting machine |

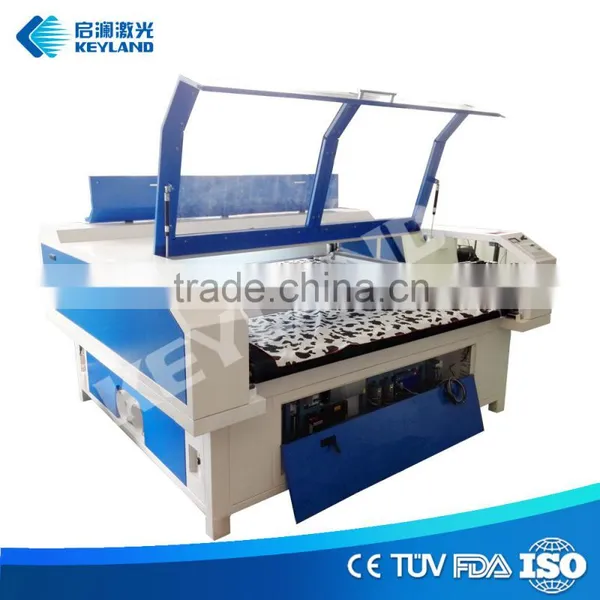

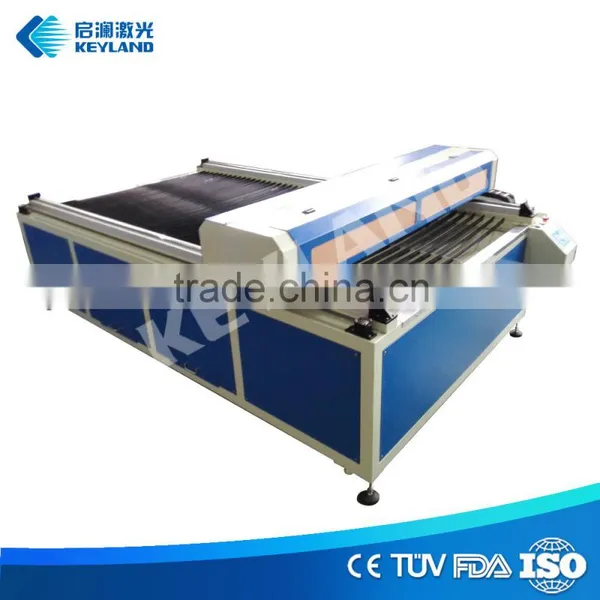

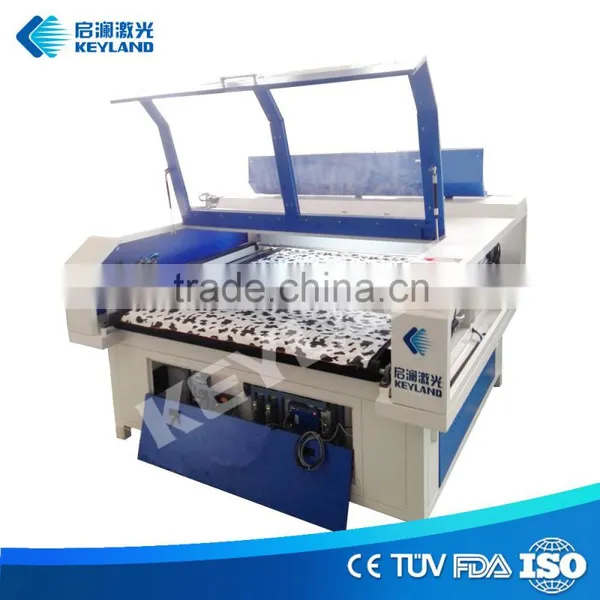

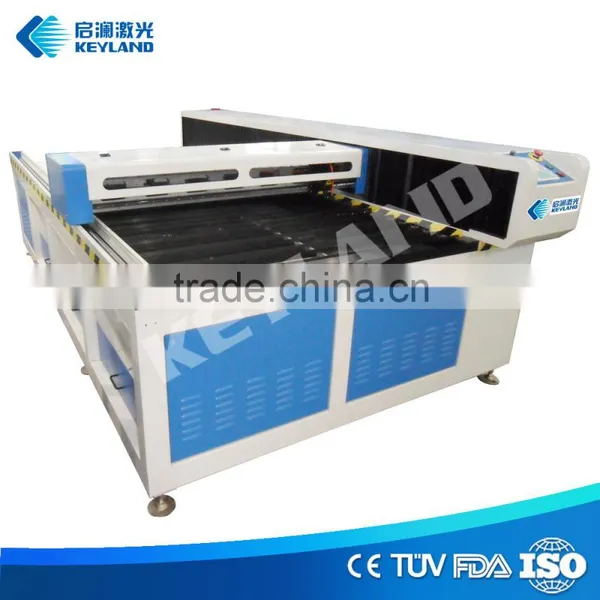

Actual photos of machine:
Application :
Function :
Laser cut , engrave , hollow nonmetals for all characters with smooth edge and fine result
Industry :
Keyland laser engraving cutting machine is widely applied in garment industry , advertising , decoration , moel manufacturing and handicraft industry .
Exact materials can be used by keyland laser cutting machine :
Category |
Engraving |
Cutting |
|
Fabric Denim , leather , polyester , cotton , nylon , pongee , suede , jeans ,satin , corduroy , chiffon , tulle , fleece |
yes |
yes |
Wood Plywood , bamboo , veneer , mdf , polymeric materials |
yes |
yes |
|
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester , sheet , insulation layer |
yes |
yes |
Organic Acrylic , rubber , resin , epoxy |
yes |
yes |
Paper Packaging materials , tin foil , card , cardboard , chipboard |
yes |
yes |
Composite Double color plate organic board |
yes |
yes |
|
Stone Ceramic , tile , marble ,granite , slate , gravestone , porcelain , tombstone , ceramic plate |
yes |
no |
|
Other Nonmetals process materials , coating materials , plating materials , spraying materials |
yes |
no |
Laser engraving cutting machine technology parameters :
Model |
KQG-6040C |
KQG-1060C |
KQG-1390C |
KQG-1612C |
||||
Laser |
CO2 glass sealed laser tube or RF metal sealed laser tube optional |
|||||||
Laser power |
40W/60W/80W |
60W/80W/100W/130W/150W |
||||||
Work platform size |
6000×400mm | 1000×600mm| 1300×900mm | 1600x1200mm |
|||||||
Engraving speed |
1-1000mm/s |
|||||||
Cutting speed |
1-500mm/s |
|||||||
Worktable |
honey-comb or slatted optional |
|||||||
Precision |
≤±0.025mm |
|||||||
Graphic format |
PLT,BMP,DXF,DST,TIF |
|||||||
Working temperature |
0-45 degree C |
|||||||
Motor type |
Stepper Motor |
|||||||
Water Cooling |
Water chiller |
|||||||
The Whole Set |
1PCS CO2 laser cutting machine 1PCS Water chiller 1PCS Air pump 1PCS Fan blower |
|||||||
Spare parts |
Laser tube, Focal lens, Reflector lens(3PCS) |
|||||||
Electricity |
220V/50hz/1kva 110V60HZ 220V60HZ |
|||||||
G.W |
275KG |
260KG |
432KG |
470KG |
||||
Benificails you can get from Keyland laser cutting machine
1. Laser cutting
Compact & smart unit.Easy to install,operate and maintenance
*DSP control/USB on& off working
* Software has installed before shipping,all has ajusted
2.Top quality of parts
--Professional control software , supported by Win 7 / 8 / 10 , vista
--Imported USA mirrors & lens
Focus lens ,the focus length is about 50.5 and 63.5 for option,which are suitable for cutting ,engraving and marking
--Taiwai HIWIN Guide rail
3.Longer warranty and after service
Lifetime of service & technology supports
Durable parts and good operating software are be used in our machines
Optional auxiliaries
-- Auto focus
adjust the working platform and workpiece to a suitable space automatically
-- Red pointer
Easy and fast to align
-- Zaxis
(motorized up down working table)-suitable for thickess of workpiece 's processing
--Rotary for tubes , CCD camera , dual lasers
--Rotary device
cylinder shape engraving
--Auto feeding
widely applied in fabric cutting
Auxiliary equipment of laser cutting machine
1. Blowing nozzle--- Debris being transferred in the process
2.Hydraulic protection,exclusion of dust and smoke
3. Universal Wheels --easy to move machine
4. Water Chiller---make laser tube longer lifetime
5. Air pump.fan exhust
Samples show:
Laser cutting wood
Laser cut fabric
Laser cut acrylic
Following is our some video by our laser machine:
Leather Laser cutting http://youtu.be/Q7T5lSL-pHA
Double head Laser cutting http://youtu.be/nYVDQuZE6wQ
Fabric laser cutting http://youtu.be/cAaG9gG9Urg
Acrylic laser cutting http://youtu.be/ZRdTl10M4vE
Rubber laser cutting http://youtu.be/of9dzxI6jjk
Paper laser cutting http://youtu.be/JEnlsej-4OU
Double color plate laser engraving cutting http://youtu.be/8FkfIfvjufE
Stone laser engraving http://youtu.be/M3xrHQCeJTA
