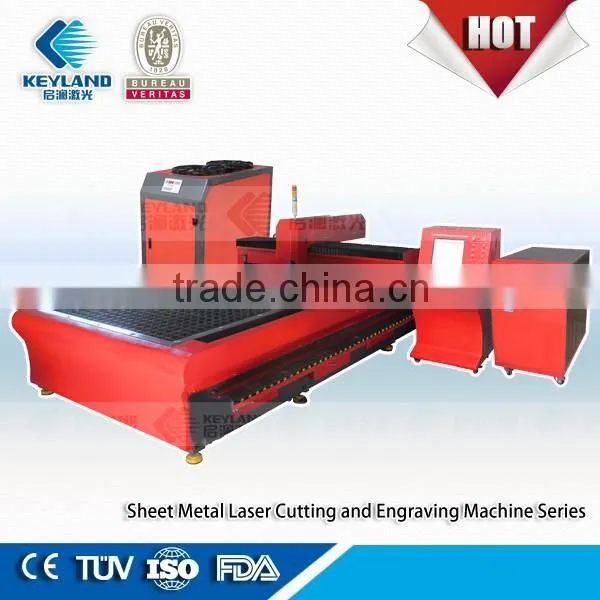

Yag Laser Machine of Cut KQG-1530M
YAG Laser Cutting machine is suitable for cutting stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, copper, brass, aluminium, gold, silver, titanium, metal sheets, metal plates, metal pipes, etc.
YAG laser cutting machine is suitable for sheet metal processing, metals ironware components and parts, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal sign letters, elevator panel cutting, etc.
Specifications:
YAG lamp pump solid laser generator
Japanese servo system
High precision ball screw driving system

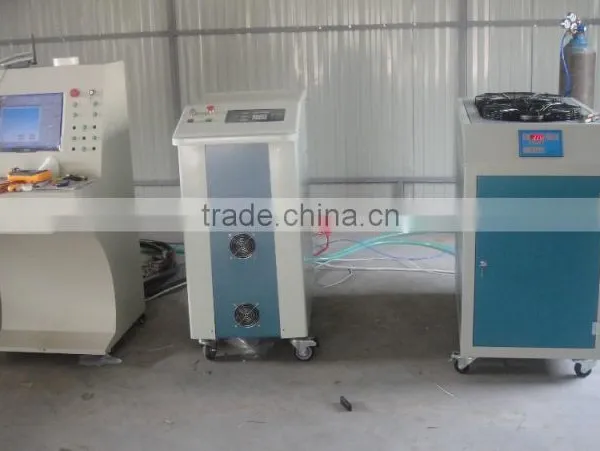

Professional water chiller for laser system
Offline control system (Support format: DXF, DWG, AI, PLT, etc.)
Auto following focus system
Nesting software
Low investment
Type Specification |
KQG-Y500/600-1530 |
Laser wave length |
1064nm |
Max. laser power |
500W/600W |
Chiller |
5P/7P |
Travel area |
1500mmx3000mm |
Pulse frequency |
1--600HZ |
Minimum line width |
0.15mm |
Working Power |
380V/50HZ/100A |
Max speed |
moving:5500mm/min; cutting:2500mm/min |
Max Cutting thickness |
Stainless steel 4mm, Carbon steel 8mm |
Floor space |
5x5m |
Weight |
4000KG |

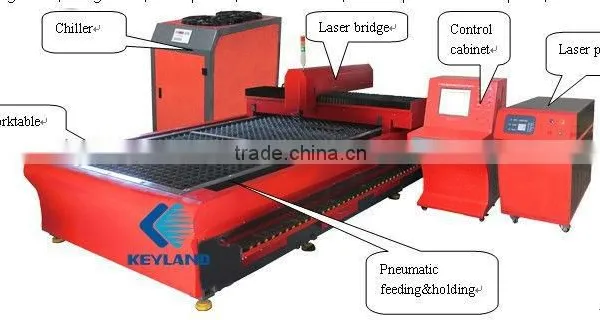

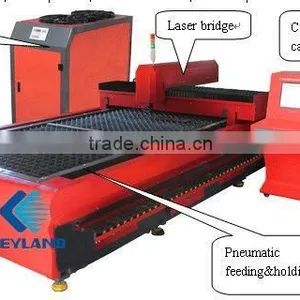

Features of metal laser cutting machine :
1. Thick steel plate frame with strong deformation resistance ability, stable
performance and nice appearance.
2. To cut any intricate graphics with high speed and precision. No secondary treatment.
3. Dynamic focusing device for continuous and automatic focus cutting uneven material.
4. Universal wheel and pneumatic loading device for loading and unloading easily, saving labor power and avoiding material scratched.
5. Following bottom exhaust system, making the whole processing without fumes.
6. Digital operation panel and mobile controller, easy to use.
7. Advanced technologies of smart nesting, fast digitizing and auto-recognition ensure material saving and high efficiency.
8. Rotary attachment (integrated or detached type optional) for positioning punching, slotting and cutting metal pipes.
9. Stainless steel less than 6mm and mild steel less than 8mm, you can just use air to laser cut (no required oxygen gas). Good cutting effect, maximizing reducing use-cost.
Demo video on Youtube:
/watch?v=IUNUDtzm-JU
Sample:
Warranty:12-month for the whole set.
Delivery time:in 15 days
