Specifications
1.Imported key components; 2.High precision:the positioning accuracy of 0.05mm,repeat positioning accuracy of 0.02mm;Sheet Metal Laser Cutting and Engraving Machine Series 500W / 600W
Specification:
| Product Name | Sheet Metal Laser Cutting and Engraving Machine Series | |||
| Type Sepcification | KQG-1325C | KQG-1530C | ||
| Laser wave length | 1064nm | |||
| Laser Power | 500W | 600W | ||
| Working platform size | 3000*1500mm | |||
| X/Y axis positioning accuracy | ±0.05mm/m | |||
| X/Y axis fast-moving speed | 10m/min | |||
| X/Y axis max cutting speed | 4m/min | |||
| Min cutting line width | 0.2mm | |||
| Max cutting thickness | stainiess steel 3mm,carbon steel 6mm | |||
| Chiller | 5P | |||
| Floor Space | 4*5m | |||
Applications :
Metal processing, precision cutting,precision instruments,medical equipment,eyeglasses and cloks,craft gift, Auto parts, instruments,and metal-related industries; Adpat to the cutting material:stainiess steel, carbon steel,aluminum,copper, titanium,etc..
Technoligy Characters :
1.Imported key components; 2.High precision:the positioning accuracy of 0.05mm,repeat positioning accuracy of 0.02mm; 3.Kerf narrower:kerf width is generally 0.10-0.20mm; 4.Smooth cutting surface: control in Ra 12.5; 5.Speed: cutting speed up to 4.5m/min,the maximum positioning speed is up to 10m/min; 6.No Workpieve thermal deformation,can process any graphics, you can cut the tubing and other profiles; 7.No mold, computer programming,can be products of different shapes for the entire board material cut; 8.Maximize the utilization of materials, increase the speed of new product development.

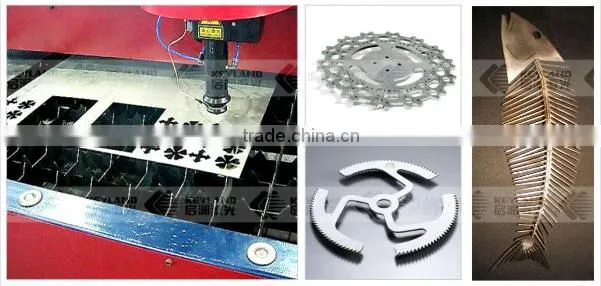

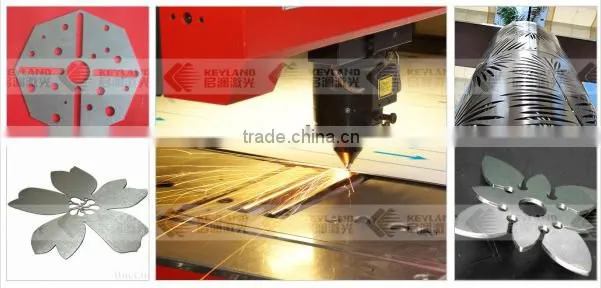

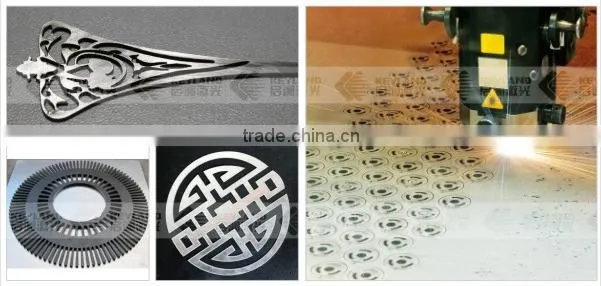

Sample Show
Company Introduction:
