Specifications
1.1325, 1530 metal laser cutting machine2.CNC 5mm Stainless steel
3.Taiwan ball screw, guide rail
4.Japan servo motor

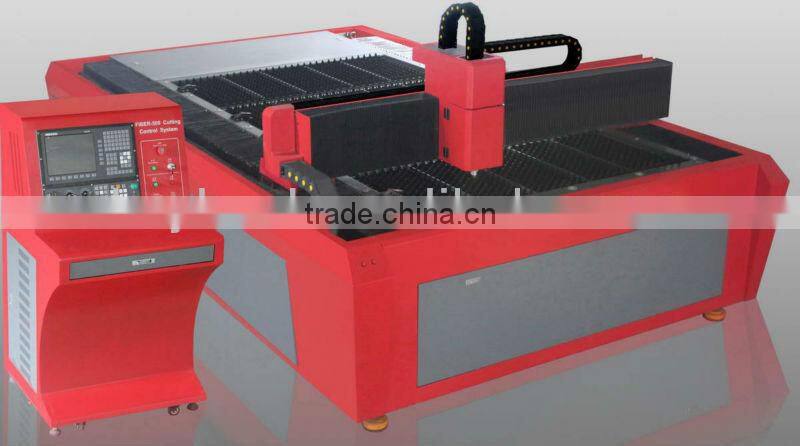

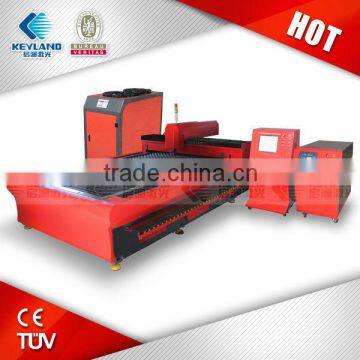

High Power 500W 650W CNC metal laser cutting machine For sale
Features:
1. High accuracy: be suitable for various precision metal cutting;
2. Ball screws and servo motors : Be sure the high efficacy .
3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, further process is unnecessary;
4. Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for serial production.
5. Fast speed:100 times higher than traditional linear cutting;
Demo video on Youtube:
/watch?v=IUNUDtzm-JU

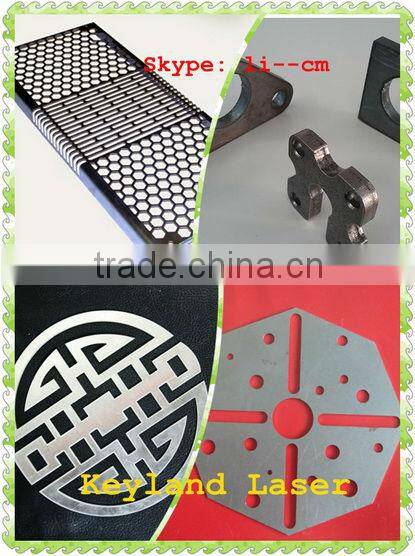

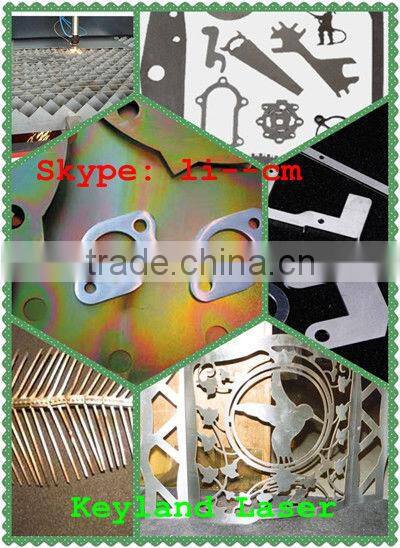

Applicable material:
Stainless steel, carbon steel, alloy steel, spring steel, Aluminum alloy, copper plate, Aluminum plate, gold, silver, Titanium, other metal plates and metal pipes, and so on.
The main configuration:
S/N |
PARTS |
CONFIGURATION |
QTY |
1 |
2D Cutter Mainframe |
capacitor Auto following cutting head |
1 set |
imported servo motor |
2 sets |
||
imported ball screw |
1 set |
||
imported guide rail |
2 sets |
||
basement subassembly |
1 set |
||
Gantry type subassembly |
1 set |
||
650W laser source |
1 set |
||
2 |
Laser Power |
23KW |
1 pc |
3 |
Laser Chiller |
7P |
1 pc |
4 |
Computer control panel |
Computer main box |
1 pc |
17" LED monitor |
1 pc |
||
panel cabinet |
1 pc |
||
Movement control card |
1 set |
||
Control panel |
1 set |
||
5 |
Net Saw-teeth Worktable |
Mainframe |
1 pc |
Scrap box |
2 pcs |
The main technical parameters
Type Specification |
GSC-Y1530 |
Laser wave length |
1064nm |
Max. laser power |
650W |
Chiller |
7P |
Travel area |
1500mmx3000mm |
Pulse frequency |
1--600HZ |
Minimum line width |
0.15mm |
Working Power |
380V/50HZ/100A |
Max speed |
moving:6000mm/min; cutting:3000mm/min |
Max Cutting thickness |
Stainless steel 8mm, Carbon steel 10mm |
Suitable materials |
Stainless steel, Carbon steel, Aluminium plate, Copper plate, Titanium plate,etc. |
Floor space |
5x5m |
Weight |
4000 KG |
Laser power:
The internal part of Model pulse laser power is real numerical controlled power. The user can programme on a variety of laser waveforms and parameters through the keyboard, and thus this laser power can meet the needs of almost all metal cutting, and it is the ideal configuration of multi-function laser cutting machine..

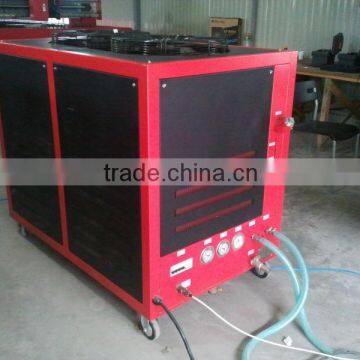

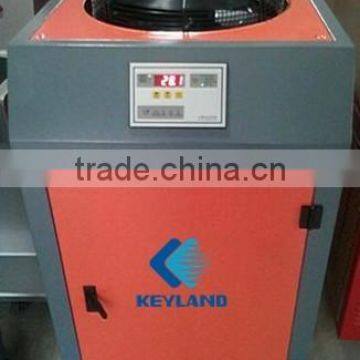

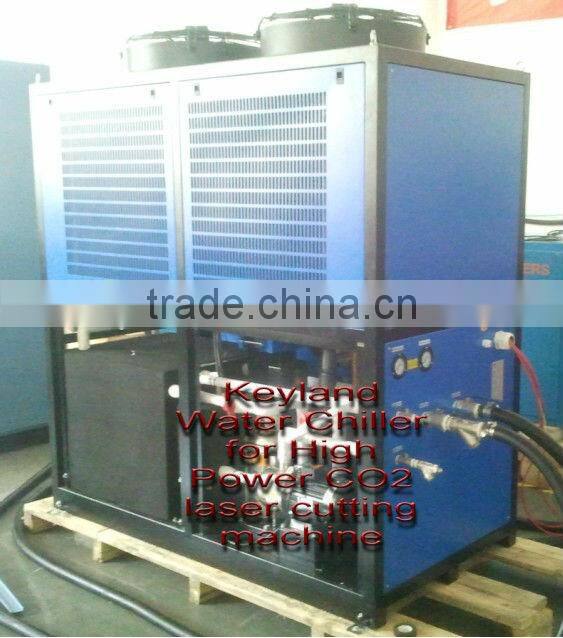

Water Compressor Chiller:
This water chiller adopts high power 5P water chiller, and it can cool the laser system continuously, adjust the temperature automatically, ensures working for a long time. The temperature of the water can be kept within plus-minus 5 degree. The constant temperature of water can keep the laser power stable, work more steady and fast.

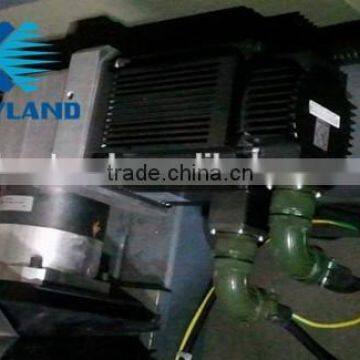

Motors and Drivers:
This system adopted with two 2000W imported Japanese servo motors and drivers, assuring constant and stable movement.
Pneumatic Transmissioning & Holding:
The feeding and holding system, which are drived by an air compressor, Thus the customers can work on stainless steel plate easily and accurately.

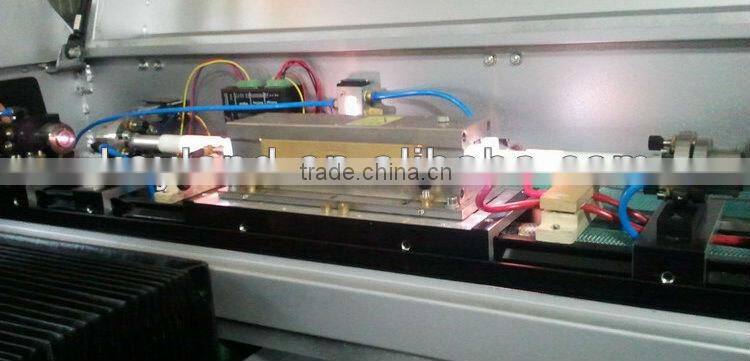

Germany Technology YAG Generator and Sealed Laser Optic system:
The generator consist of YAG crystal rod,golden chamber,xenon lamp: lifetime of Xenon Lamp is about 500-600 hours, low cost and comparatively economic;Precise and rational design, optical, adjustment for easy lamp and rod replacement
The solid-state laser cutting machine make use of cantilever structure therefore just move beam body to edge during adjustment of laser path, the operator can replace the side lights and rods behind the beam body.
Laser Auto focusing Servo head:
Our solid laser cutting machine uses USA technology auto focusing cutting head. Cutting head laser nozzle locking ring touch the metal sheet materials surface, cutting head move up and down, and it can achieve same focal cutting. The cutting head has high sensitivity, stable running and good reliability.When cutting metal sheet.
Cutting software Interface:
The cutting software can support many formats, such as dxf.,plt.,dsb.,bmp.,png.,ico., cur., tif., tga., pcx., wmf., emf., jbg., pnm., ska., ras.,etc.

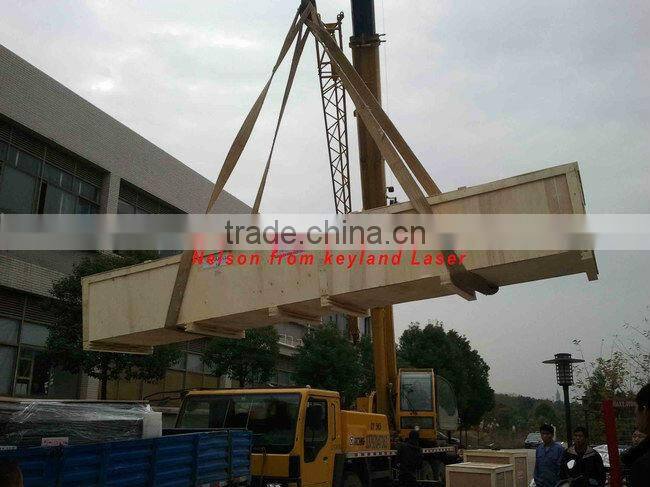

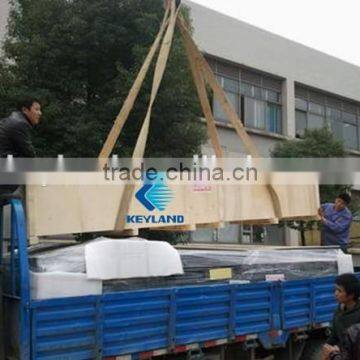

Laser Metal cutting machine packing:
Fiber , CO2 Laser Metal Cutting Machine For More precision application:

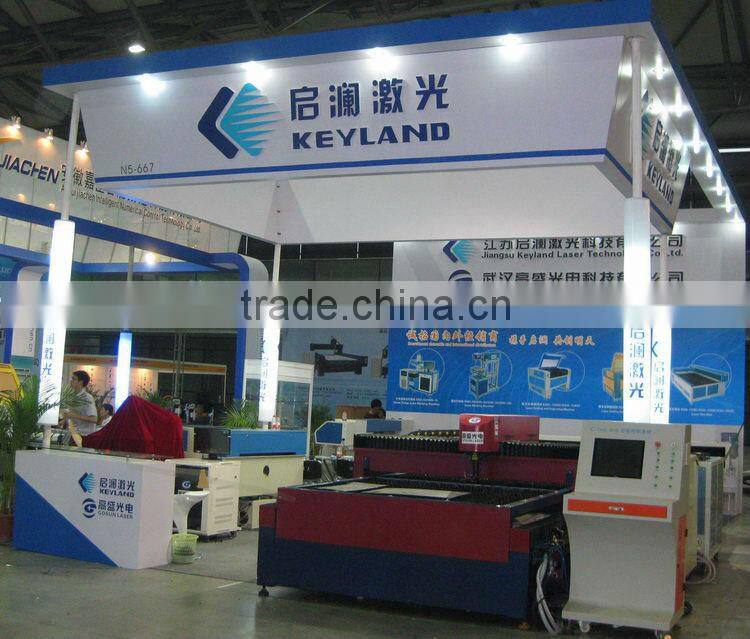

Keyland Laser Co's Laser Metal cutting machine on Fair:
| Guarantee&Aftersales service: |
| guarantee for one year |
| 24 hour technical support by email or calling |
| User-friendly english manual for machine using and maintaining |
