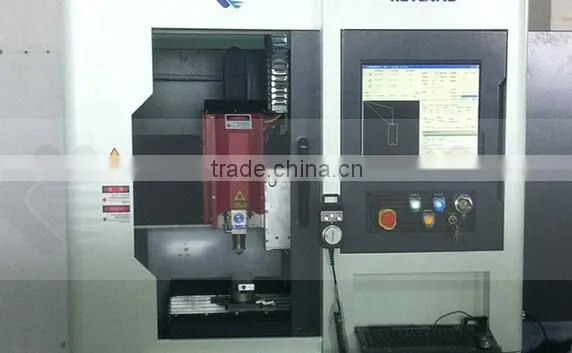

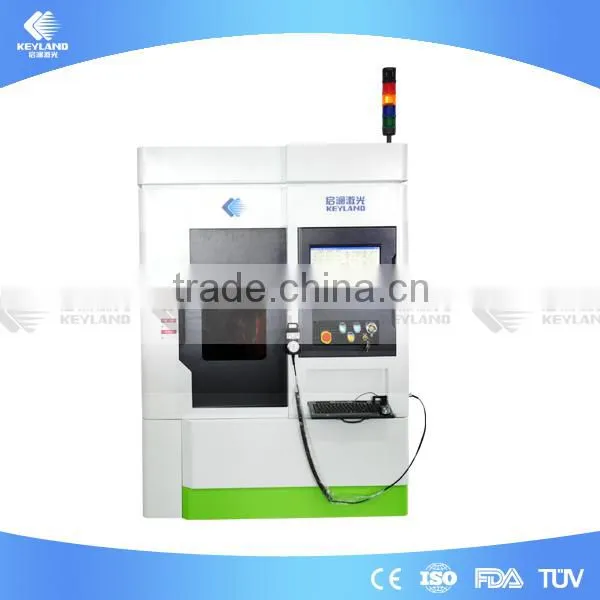

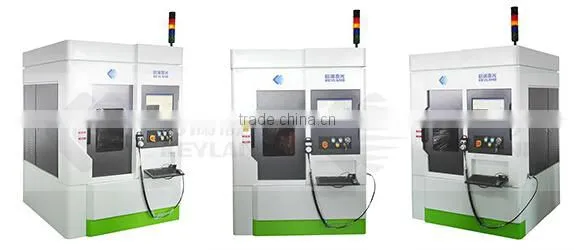

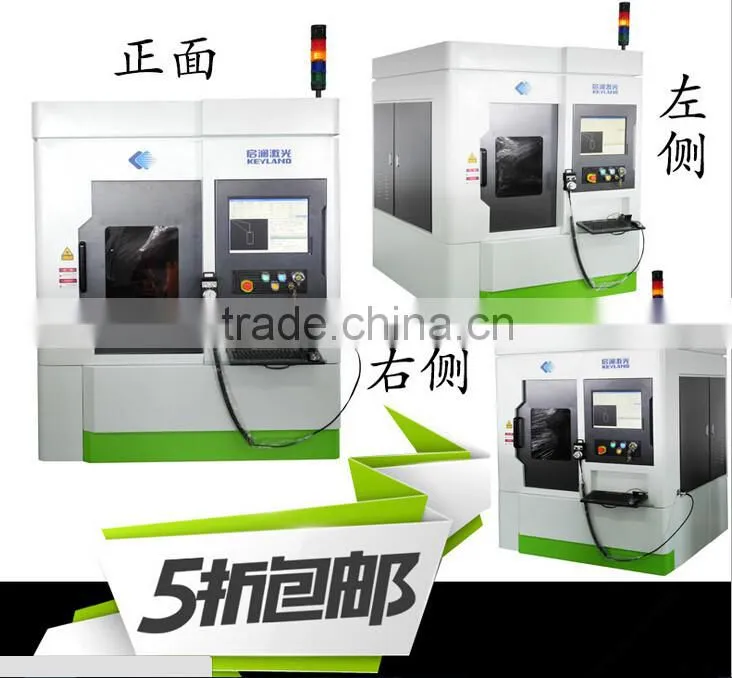

Keyland Sapphire Mobil Phone HOME Button Cover Button Laser Cutting Machine
Cutting folloing materials:
- Sapphire, ceramic substrates,
- alumina,Aluminum nitride,Zirconia,Oxide glass,
- Silicon nitride,Silicon carbide,
- stainless steel, aluminum, copper, titanium, alloy, carbon steel, etc.
Application industries:
Industry: Main used in smart watches, smart phones, LED lamps, electronic components, instruments, thin-walled metal products and other industries.
Character of Sapphire Laser Cutting Machine:
1.Fully enclosed-one design, ergonomic control panel, Simple Novel appearance
2. Work process sealed, special absorbing dust removal facilities, to avoid dust pollution of the environment
3. Machine using granite bed, the whole beam column structure designed to ensure system accuracy and stability
4.X / Y / Z axes with whole hermetic cover,Machine key parts of a multi-polar seals and special anti-rust treatment,Ensure the reliability of the machine age and usage
5. The system is equipped with an automatic oil lubrication system filtration to ensure the accuracy and reliability of the motor system
6. Using professional positive pressure air source treatment and pneumatic alarm system to ensure consistency of cutting effect
7.Special custom laser cutting head using a positive pressure seal means,Reduce processing environment damage laser cutting head, effectively extending its life
8. Using non-contact processing, no stress for processing materials, can be processed and shaped micro-pores, no supplies, low cost
9. Special custom tooling, taking into account the negative pressure adsorption convenient waste collection
10. Rangefinder CCD camera using assisted positioning system, improve the workpiece positioning accuracy
11. Small Laser processing heat high precision, can be cut and shaped porous drilling
Parameter of Machine:
Item |
Parameter |
Testing Way |
|
|
System accuracy
|
Positioning accuracy (X / Y / Z-axis) |
±0.003mm |
|
|
Repeat positioning accuracy (X / Y / Z-axis) |
±0.003mm |
|
|
Working platform flatness |
0.05mm |
|
|
X / Y / Z-axis linear motion degree |
0.01mm |
|
|
X-axis and Y-axis perpendicular degree |
0.015mm |
|
|
Z axis and X Y axis verticality |
0.015mm |
|
|
Working stroke |
X Axis 400mm |
|
|
|
Y Axis 400mm |
|
|
|
Z axis 300mm |
|
System Size |
Working table size |
X axis 300mm |
|
|
|
Y Axis 300mm |
|
|
Size of Dimensions |
L1390mm |
|
|
|
W1325mm |
|
|
|
H1926mm |
|
|
Laser
|
Laser Power |
150W |
|
|
Laser wavelenth length |
Infrared 1640nm |
|
Processing Performance |
Fast moving speed (X / Y / Z-axis) |
12m/min |
Software |
|
Max. Cutting speed (X / Y / Z-axis) |
3m/min |
Software |
Precision |
Square dimensional accuracy |
0.02mm |
Two-dimensional coordinates Instrument |
|
Roundness |
0.015mm |
Ballbar |
Lubrication Systems |
Lubrication pump capacity |
1L |
|
|
Flow |
120-140cc/min |
Flowmeter |
|
Pressure |
1.5-1.7Mpa |
Pressure gauge |
System Power |
Total voltage |
AC380V/50Hz |
|
|
Total power Of Machine |
5KW |
|
|
Auxiliary gas requirements
|
Pressure |
2Mpa |
|
|
Pressure |
0.5Mpa-0.7Mpa |
Pressure gauge |
|
Flow |
150L/min |
Flowmeter |
Vacuum requirements |
Pressure |
Above -0.06Mpa |
Pressure gauge |
|
Flow |
100L/min |
Flowmeter |
Environmental requirements |
Temperature |
+15℃~+30℃ |
|
|
Humidity |
<50% |
|
System |
Control software |
windowsXP |
|
Weight of Machine |
|
200kg |

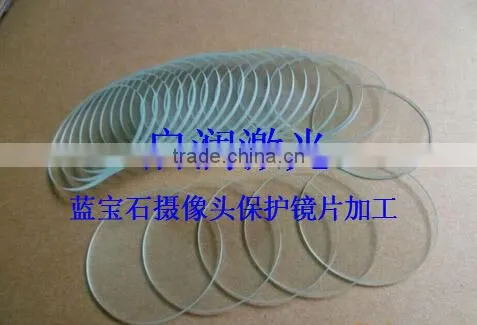

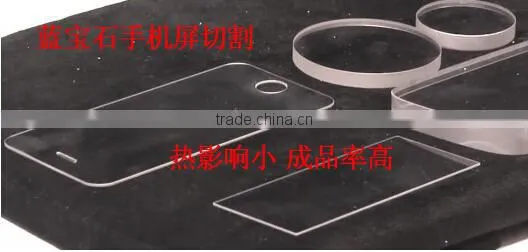

Cutting Sample :
About Keyland
Before quotation, would you please let me know some items following?
1.What materials do you want to mark on by our laser cutting machine?
2.What max. cutting cope ?
3.How about your expect cutting performance?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Notice:
Laser Cutting machine agents wanted all over the world.
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful.
Ms Lucia await for your inquiry about Keyland laser machine.
You can contact me through following way:
1. CLICK "CONTACT SUPPIER" or "SEND MESSAGE"to send offer to me through alibaba.
2.Ms Lucia's online contact way: Whatsapp:0086 186 7291 7139
Skype:lvlucia
QQ:593670706
Email:lucia (at)
3.Also YOUTOBE :keylandlaser
Facebook:keyland laser
To know more about our company new trends ,laser machines' working processing.
