Keyland 10Watts 20Watts 30Watts 50Watts Optical Mini Portable
Laser Meta Engraving with Barcode Marking
Lucia Lv will give your best offer !!
How to Choose Suitale Fiber Laser engraving Machine ?

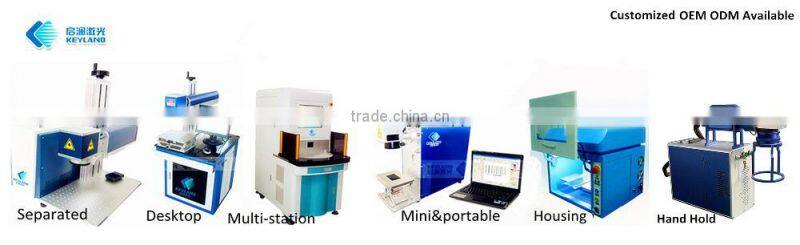

1.Types
Now we have Separated/ Desktop/ Multi-station/ Mini portable/ Housing/ Hand-hold ,also can customized accordingly.
2.Actual Need
♥Volume-produce or Small amount Marking /engraving
If meet with production line,Flying marking engraving or our muti-station are recommend.
♥For small or big workpiece's marking engraving
If for big workpiece with different direction marking/engraving , hand-hold is good for choise.
♥If Convenient & Portable are more important to you.
Mini& portable type is very good , Take it away ~←
↑Exact request, pls contact Lucia Lv for industry solution guide .
3.Engraving Performance
When you use the machine, Surely hope to mark the expect marking /engraving performance and can up to your request.
Now 10W 20W 30W 50W fiber laser power with different field mirrors.
PLS tell us your expect marking engraving request, we can guide you ;Also can do sample marking /engraving to you by free charge .
Technology Spec | |
Model No | GMF-10/20/30/50 |
Laser power | 10Watts 20Watts 30watts 50watts |
Power supply | AC 110v - 240v |
Wavelength | 1064nm |
Laser medium | Optical fiber |
Marking area(option) | 70mm*70mm,110mm*110mm,160mm*160mm,200mm*200mm |
Marking speed | 0-8000mm/s |
Marking depth | 0~1mm(According to materials) |
Min line width | 0.01mm |
Min marking character | 0.1mm*0.1mm |
Cooling way | Air Cooling |
Laser Head | High Speed Galvo Head |
Repeatability | 0.0025 mm |
Indicator | Red dot pointer |
Software | Ezcad |
Control | PC based via USB connection |
Operating system | Windows 7/8/XP |
Applicable Materials | Metal: Stainless Steel, Carbon Steel, Aluminum, Alloy, Copper, etc. Non metal: Engineering Plastics, Silicon Wafers, ABS etc |
Applicable Industries | Electronic part and component, Electrical appliance, Telecommunication product, Moto spare parts, Instrument and meters, Aviation and aerospace, Military products, Solar PV, Bathroom accessories, Handware tool, Gold & Silver hallmarking etc. |
Configuration List | |
Laser | fiber laser |
The power control cabinet | Optical fiber portable control cabinet |
Optics system | Scan galvo lens |
| F - θ lens group |
| Beam expander |
| Red dot pointer |
Control system | Dell Laptop |
| Foot switch |
Cooling system | Air cooling |
Work table | X, Y, Z axis adjustable table |
| Automatic conveyor (Optional) |
Rotary add-on (optional) | Max clamping radius 40mm Max clamping length 100mm Max clamping weight 1kg |
Protect function |
Under-voltage protection |
Overcurrent protection |
Emergency stop |
Software |
|
Vector files: |
|
Image files |
|
Before quotation, would you please let me know some items following?
1.What materials do you want to mark on by our laser engraving machine?
2.What max. marking engraving scope
3.How about your expect marking engraving performance?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Notice:
Laser marking machine agents wanted all over the world.
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful.
Ms Lucia await for your inquiry about Keyland laser machine.
You can contact me through following way:
1. CLICK "CONTACT SUPPIER" or "SEND MESSAGE"to send offer to me through alibaba.
2.Ms Lucia's online contact way: Whatsapp:0086 186 7291 7139
Skype:lvlucia
QQ:593670706
Email:lucia (at)
3.Also YOUTOBE :keylandlaser
Facebook:keyland laser
To know more about our company new trends ,laser machines' working processing.
