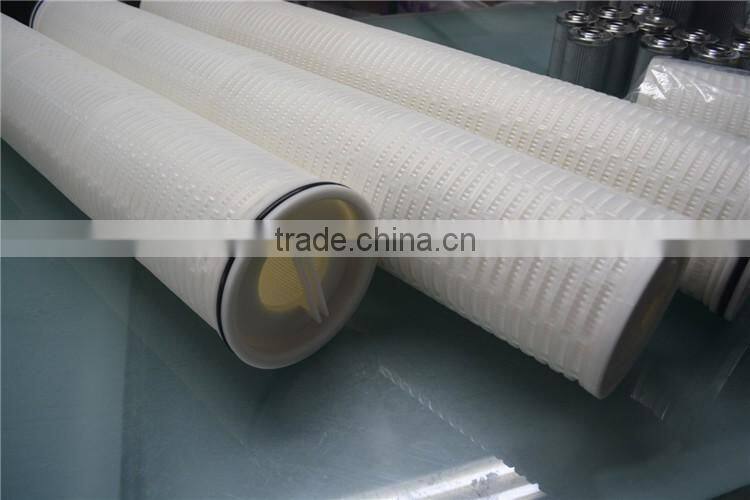

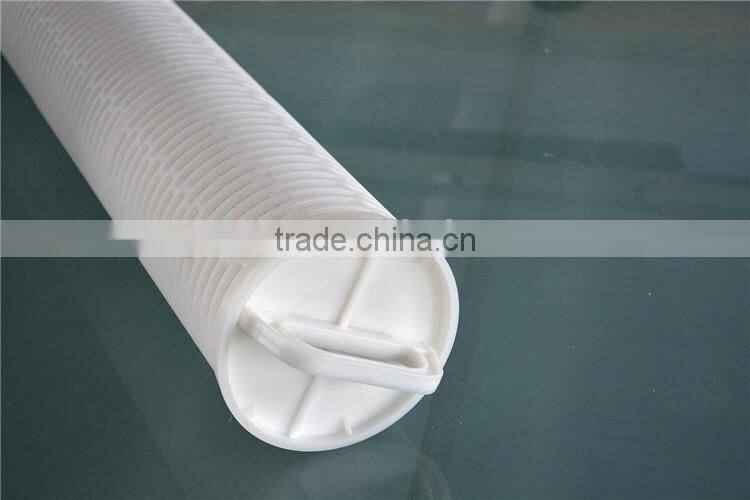

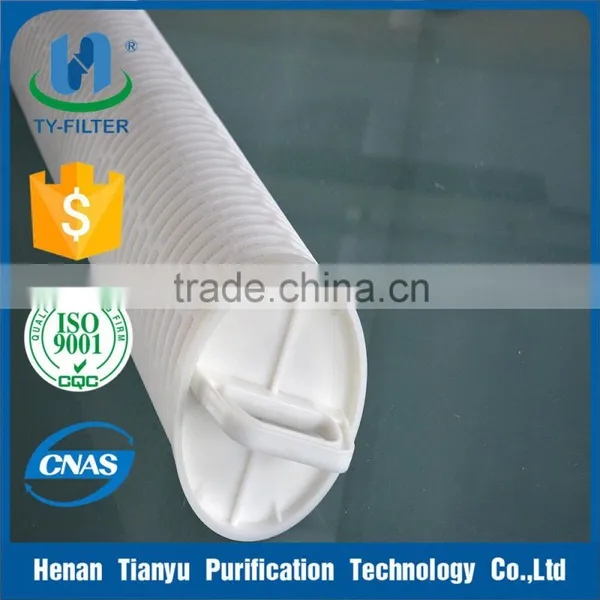

40 Inch 3M Water Filter
Application:
Industrial : | Municipal water, RO Pre filtration, reclaimed water, coolant, nozzle protection, boiler condensate |
Chemical: | Quench water, aqueous salt solutions, final products |
Petrochemicals: | Water flooding, produced water, enhanced oil recovery, completion fluids, amine sweetening,final products |
Electronics: | RO pre filtration, process water |
Food and Beverage: | Process and blending water, bottled water |
Pharmaceutical: | Process water |
Product Features:
*Fewer cartridges and less time to assemble
*Handle Design makes change fast,easy and safe
*High surface area pleated design provides low pressure drop and long service life
*Polypropylene cartridges comply with FAD grade
*40" type could achieve flow rate 110m3/h
Performance Specifications:
Filter Grades:
Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
Dimensions(nominal):
Cartridge Length: | 20" (508mm) /40" (1016mm)/60" (1524mm) |
Cartridge Max.OD: | 6.5"(165mm) |
Material of Construction:
Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
Support: | Polypropylene |
End Caps: | Glass Fiber Reinforced Polypropylene |
O-ring Seal options: | EPDM,NBR,Viton, |
Max. Operating Differential Pressure:
Polypropylene: | 3.44bar@82°C,50psi@180°F |
Glass Fiber: | 3.44bar@121°C,50psi@180°F |
Suggestion Flow: | 20" 660LPM 40" 1300LPM 60" 1900LPM |
Our products through the following test:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Henan Tianyu Purification Technology Co.,Ltd was founded in 1999,which located in Xinxiang city--Filter industrial concentration area. We are a high-tech enterprise which specializing in the production of filters, filter elements, filtration equipment, hydraulic components,dust removal filter cartridge,etc. We have 10 senior engineers ,with 16 years of experience in design research and development of purification industry . We can provide the best products and solutions for your purification system.If you choose us,we are sure we can give you the best service and help you save your money.
Packaging Details:Neutral packing.Carton inside,wooden case outside.Or custom-made according to the request.
Delivery Details:Generally,7 working days after received your payment.But if you are urgent,we can give you the best delivery time to meet your demand.
