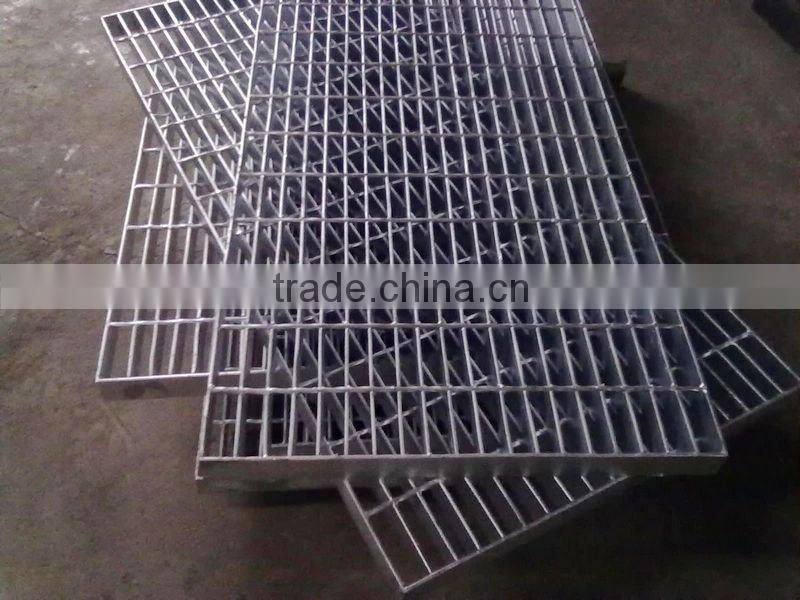

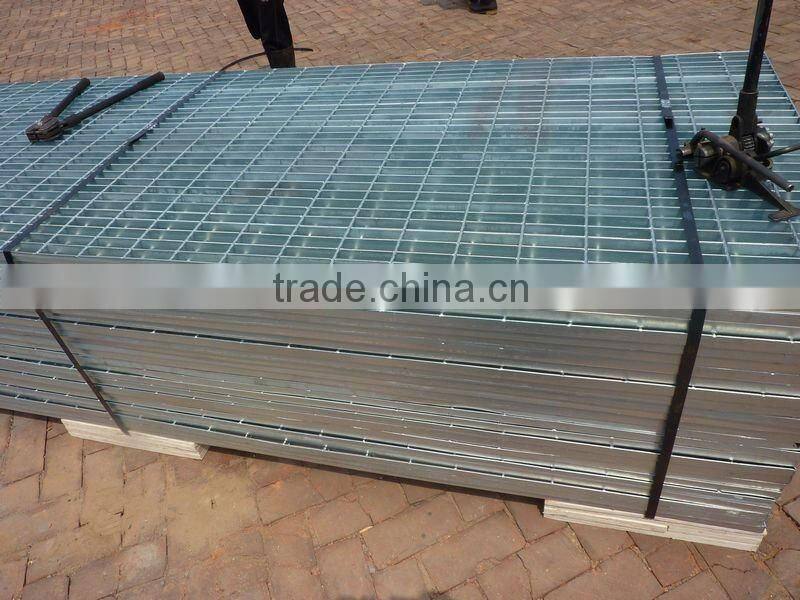

Stainless Steel Bar Grating

Anping Huade Hardware & Mesh Co., Ltd.

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

HD-gratings

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name HD

Model Number HD-gratings

Material Stainless Steel

Specifications

Stainless Steel Bar Grating
galvanzied,plain,untreated...
bearing bar pitch:30.40.60mm

Stainless Steel Bar Grating

Hot dip galvanized steel grating(hot sale)/30x3 galvanized steel grating/serrated bearing bar grating

1. Standard Description:

No	Item	Description

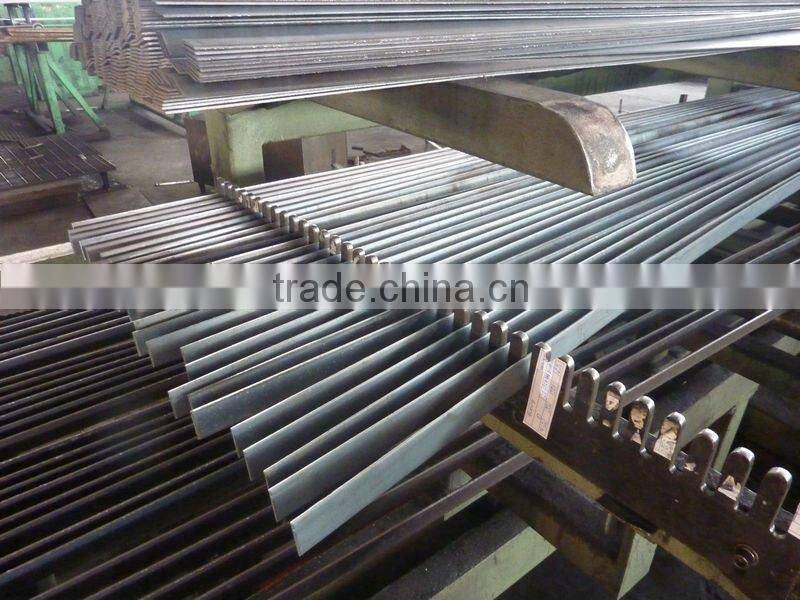

1	Bearing bar	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2	Bear bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3	Cross bar pitch	38,50,76,100,101.6mm
4	Material	Q235,A36,SS304
5	Surface treatment	Black, hot dipped galvanising, paint
6	Standard	China: YB/T 4001.1-2007
		USA: ANSI/NAAMM(MBG531-88)
		UK: BS4592-1987
		Australia: AS1657-1985

2.Specification of bearing bar loadwidth×thickness

Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar loadwidth×thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar loadwidth×thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
