stainless steel grates

Specifications

stainless steel grates
1>Bearing bar pitch:30-60mm
2>Cross bar pitch;50,100mm
3>Plain,Serrated,I-shape...

stainless steel grates





Material: carbon steel, stainless steel



Information:

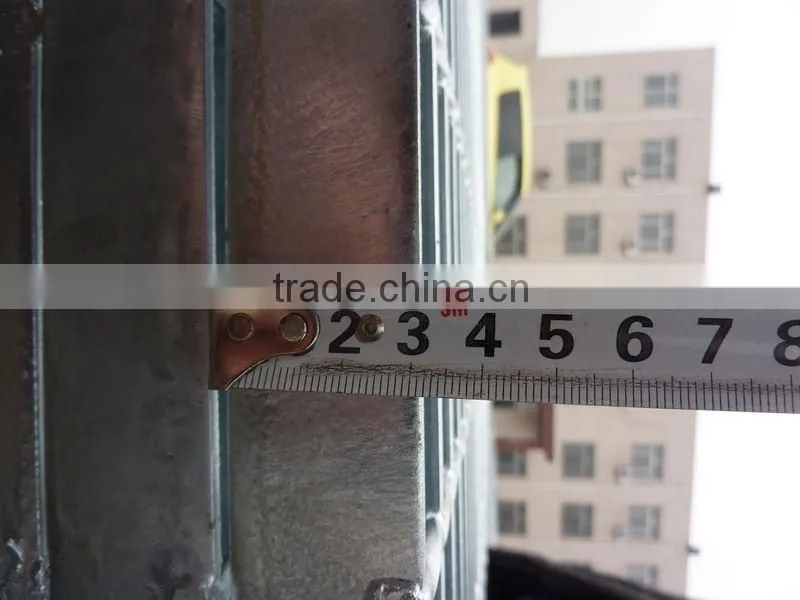

1) the pitch of the grating between bearing bars is 30mm. It's most widely used typy in industrial field. Among notmal types, it has the strongest resistance to surface lash.

2) the pitch of steel grating between bearing bar is 40mm. It's the most economical and lightes type. It's the best choice for you on occasions that the clear span is small.

3) the pitch of the steel grating between bearing bar is 60mm and the pitch between cross bars is 50mm. It's developed specially for mining industry. It solves the problem of mineral splash on the plate. So it's often appointed to use in processing works of mining industry.

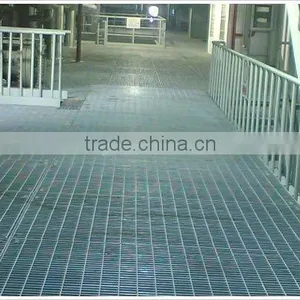

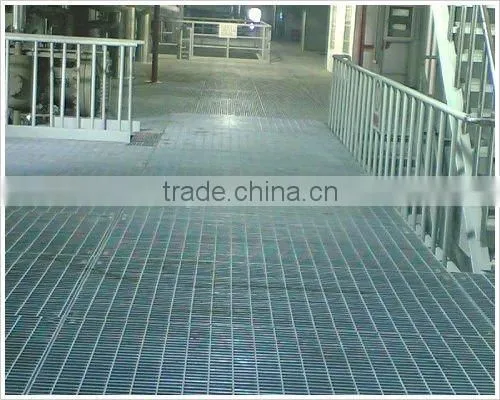

4) the pitch of the steel grating 30mm between bearing bars and 100mm between cross bars is the most popular type used home and abroad. It's proper for many applications such as walkways, platforms, etc.



NO.	bearing bar	cross bar	width×thickness
			20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
NO.	bearing bar pitch	cross bar pitch	width×thickness
			32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
