Specifications
Steel grating weightlargest production capability
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592

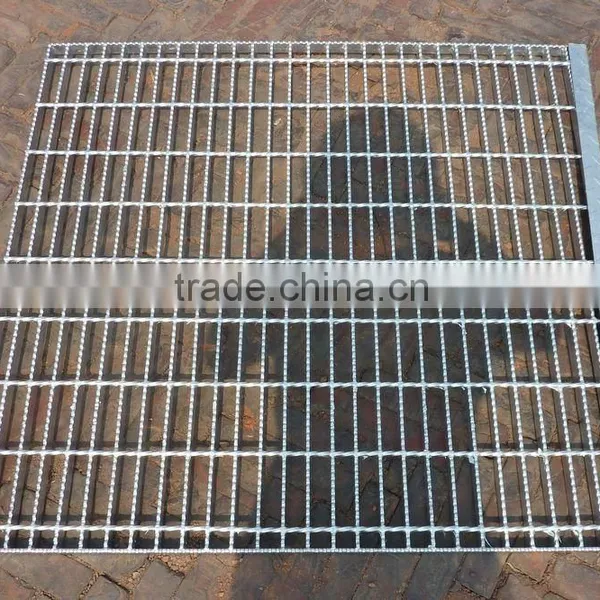

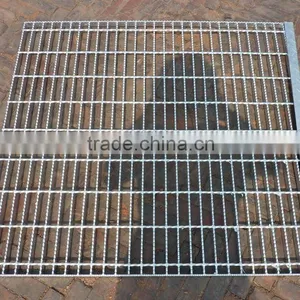

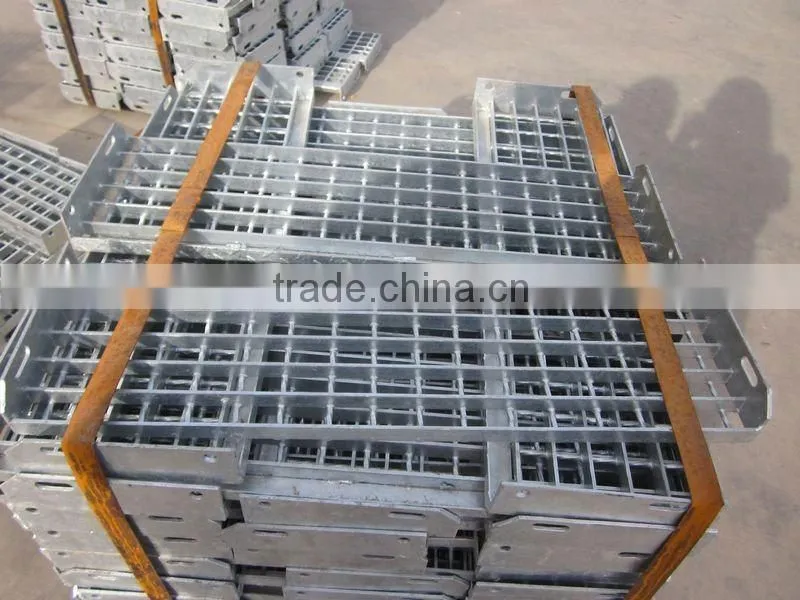

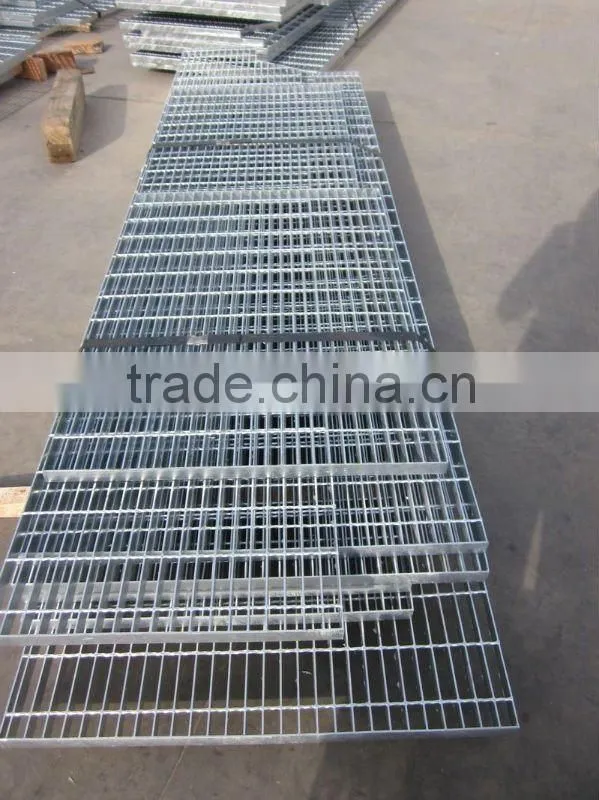

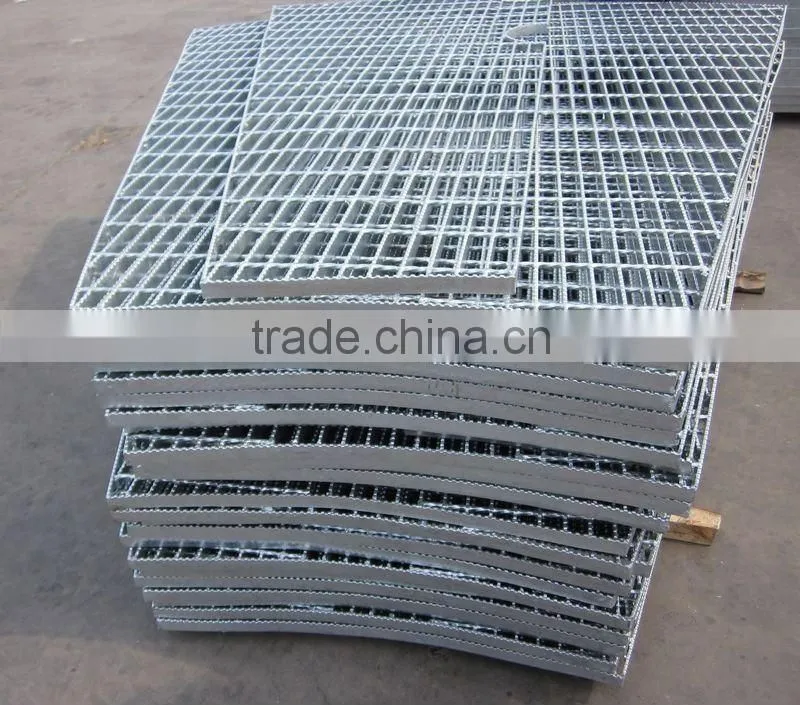

Steel grating weight
1) material:carbon steel or stainless steel
2) cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.
3) Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by we can produce high quality gratings with firm welding,smooth surface and high strength.
4) Surface process of gratings: there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.
No |
Item |
Description |
1 |
Bearing bar |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
2 |
Bear bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
3 |
Cross bar pitch |
40,45,50,76,100,101.6mm etc |
4 |
Material |
ASTM A36,A1011,A569,Q235,275 |
5 |
Surface treatment |
Black, hot dipped galvanising, paint |
6 |
Standard |
China: YB/T 4001.1-2007 |
USA: ANSI/NAAMM(MBG531-88) | ||
UK: BS4592-1987 | ||
Australia: AS1657-1985 |
