Concertina Razor Wire/Stainless Steel Razor Barbed Wire

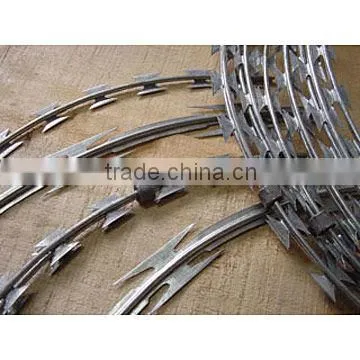

Concertina Razor Wire/Stainless Steel Razor Barbed Wire thumbnail-1
Concertina Razor Wire/Stainless Steel Razor Barbed Wire photo-1
US$ 600 - 900 MOQ: 2 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
huade wire mesh
Model Number:
HD - BTO22.21
Contact Supplier Request Quote Chat Now
Anping Huade Hardware & Mesh Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name huade wire mesh
Model Number HD - BTO22.21
Material Iron Wire
Surface Treatment Galvanized
Type Barbed Wire Coil
Razor Type Cross Razor

Specifications

concertina razor wire
Material: Galvanized blade, stainless steel blade.
General Use: Razor Barbed Wire mainly serves

 concertina razor wire razor  wire

is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor barbed wire can be installed on farm, building and other fields.
Material: Galvanized blade, stainless steel blade.
General Use: Razor Barbed Wire mainly serves in protecting of grass boundary, railway, highway, etc
Note: Can be made according to the actual dimension of customer; the special product is manufactured according to the drawing.

Model

Figure of mould

thickness of razor



centerline diameter

length of razor



width of razor

Distance between razors



BTO-12



0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-18



0.5±0.05

2.5±0.1

15±1

15±1

33±1

BTO-22



0.5±0.05

2.5±0.1

22±1

15±1

34±1

CBT-60



0.6±0.05

2.5±0.1

60±2

32±1

96±2

CBT-65



0.6±0.05

2.5±0.1

65±2

21±1

100±2


External diameter

Ring Numbers



Standard covering length

Model

Remarks

450mm

33

8M

CBT-60.65

Single coil

500mm

41

10M

CBT-60.65

Single coil

700mm

41

10M

CBT-60.65

Single coil

960mm

53

13M

CBT-60.65

Single coil

450mm

112

17M

BTO- 12.15.20 .22

Cross type

500mm

102

16M

BTO- 12.15.20 .22

Cross type

600mm

86

14M

BTO- 12.15.20 .22

Cross type

700mm

72

12M

BTO- 12.15.20 .22

Cross type

800mm

64

10M

BTO- 12.15.20 .22

Cross type

960mm

52

9M

BTO- 12.15.20 .22

Cross type


By the way, if you didn't find the model you need, you can tell me more about that. We believe that we will try our best to satisfy you.
