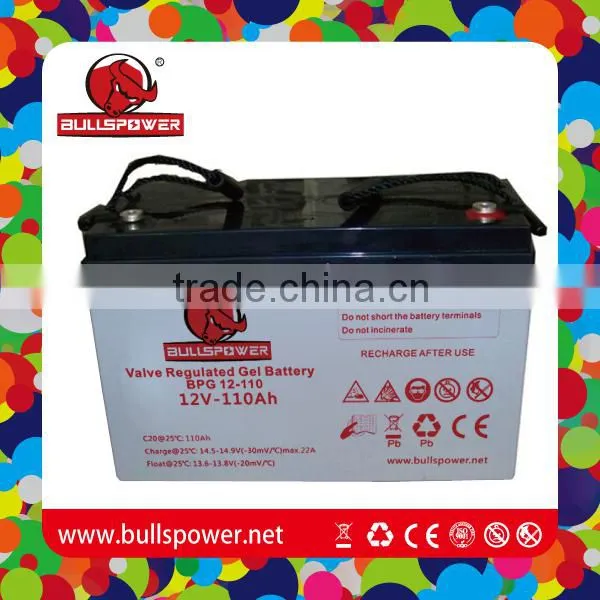

Solar System Sealed Lead Acid 12v 110ah Gel Battery

Solar System Sealed Lead Acid 12v 110ah Gel Battery thumbnail-1
Solar System Sealed Lead Acid 12v 110ah Gel Battery photo-1
US$ 110 - 150 MOQ: 1 Pallet
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bullspower
Model Number:
BPD12-110
Contact Supplier Request Quote Chat Now
Huizhou Wisdom Power Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bullspower
Model Number BPD12-110
Usage Other, Emergency power systems/Auto control system
Voltage Other, 12v
Sealed Type Sealed
Maintenance Type Free
Size 330*171*219mm
Weight 31.5KGS
Nominal Capacity 110Ah

Specifications

Solar system sealed lead acid 12v 110ah gel battery
Maintenance Type: Free
15days delivery time
Long life
Clean environment

Solar system sealed lead acid 12v 110ah gel battery

All of our products must pass 55 QC inspection points before shipment.



Product Description
BULLSPOWER Deep Cycle Series Batteries are specifically designed with revolutionary heavy duty plate AGM technology with high percentage tin alloyed.Batteries are ideal for applications that require sealed batteries with heavy duty cyclic capability or for backup power & storage. They are recommended for motive power applications.



Extra Features:

1.Superior Deep Cycle Design with high percentage tin

2.High Power Density

3.Thick Plates and High-density

4.Active paste material, and a slightly stronger acid

5.Typically discharge 60 to 70% or more of the battery capacity

6.Plate/grid structure longer, resisting the normal degradation found in cycling condition

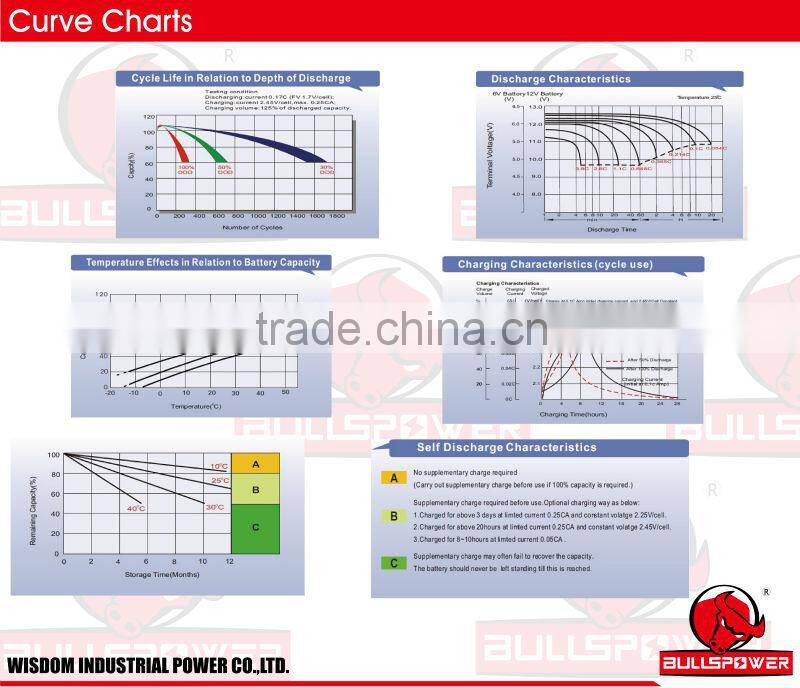

Parameters :

Capacity                                   77°F(25ºC)

20 hours rate(5.89A 10.8V)

117.7Ah

10 hours rate(11A 10.5V)

110Ah

5 hours rate(19.31A 10.5V)

96.53Ah

1 hour rate(71.06A 9.6V)

71.06Ah

Internal Resistance

Full charged battery 77°F(25ºC): 5.9mΩ

Operating Temperature Range

Discharge:-20 to 60 ºC

Charge:-10 to 60 ºC

Storage:-20 to 60 ºC

Self-Discharge

3% of capacity declined per month at 20ºC(average)

Max discharge current77°F(25ºC):1650A(5S)

Charge                           (Constant Voltage)

Float:13.6 to 13.8V/77°F(25ºC)

Cycle:14.4 to 14.7V/77°F(25ºC)

Max Current: 22A





Similar Products



BATTERY TYPE Nominal Voltage 20Hr Capacity to 1.80Vpc External Dimension Weight Terminal
Length Width Height Total Height Approx (± 3%) Type
(V) (Ah) mm Inch mm Inch mm Inch mm Inch kgs Ibs
BPD6-200 6 200 306 12.05 168 6.61 220 8.66 225 8.86 30.5 67.24 M8
BPD6-210 6 210 260 10.24 180 7.09 247 9.72 252 9.92 30 66.14 M8
BPD6-220 6 220 306 12.05 168 6.61 220 8.66 225 8.86 32 70.55 M8
BPD6-225 6 225 243 9.57 187 7.36 275 10.83 275 10.83 31.5 69.45 M8
BPD6-310 6 310 295 11.61 178 7.01 354 13.94 360 14.17 46 101.41 M8
BPD6-380 6 380 295 11.61 178 7.01 404 15.91 410 16.14 55.3 121.92 M8
BPD6-420 6 420 295 11.61 178 7.01 404 15.91 424 16.69 56.8 125.22 M8
BPD8-200 8 200 260 10.24 182 7.17 295 11.61 301 11.85 39.5 87.08 M8
BPD12-20 12 20 182 7.17 77 3.03 167 6.57 167 6.57 5.7 12.57 T1/L1
BPD12-24 12 24 165 6.50 126 4.96 174 6.85 174 6.85 7.2 15.87 T1
BPD12-38 12 38 197 7.76 165 6.50 170 6.69 170 6.69 12.2 26.90 L6/M5
BPD12-40 12 40 197 7.76 165 6.50 170 6.69 170 6.69 13 28.66 L6/M5
BPD12-42 12 42 197 7.76 165 6.50 170 6.69 170 6.69 14.2 31.31 L6/M5
BPD12-55 12 55 229 9.02 138 5.43 208 8.19 212 8.35 17.5 38.58 L7/M6
BPD12-65 12 65 350 13.78 166 6.54 173 6.81 173 6.81 21 46.30 L8/M6
BPD12-80 12 80 259 10.20 169 6.65 208 8.19 212 8.35 22.5 49.60 L9/M6
BPD12-90 12 90 307 12.09 169 6.65 208 8.19 227 8.94 26.3 57.98 L9/M6
BPD12-100 12 100 329 12.95 172 6.77 214 8.43 217 8.54 31 68.34 L10/M8
BPD12-120 12 120 406 15.98 173 6.81 208 8.19 236 9.29 36 79.37 L11/M8
BPD12-150 12 150 485 19.09 172 6.77 240 9.45 240 9.45 46 101.41 L12/M8
BPD12-200 12 200 522 20.55 240 9.45 219 8.62 244 9.61 63 138.89 L13/M8
BPD12-250 12 250 520 20.47 269 10.59 220 8.66 232 9.13 71 156.53 L13/M8
