C.P. Full-flow Brass Ball Valve M.F.with Lever Handle
US$ 0.5 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C.P. Mini Ball Valve M.M. With Black HandleUS$ 0.5 - 3MOQ: 100 Pieces -
C.P. Mini Ball Valve F.F. With Black HandleUS$ 0.5 - 3MOQ: 100 Pieces
-
C.P. Full-flow Ball Valve F.F. With Lever Handle and Drain Off-cockUS$ 0.5 - 3MOQ: 100 Pieces
-
C.P. Full-flow Brass Ball Valve F.F. With Square Cap 13*13US$ 0.5 - 3MOQ: 100 Pieces
-
C.P. Full-flow Ball Valve With Union ConnectionUS$ 0.5 - 3MOQ: 100 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Hydraulic
Material
Brass
Temperature of Media
Normal Temperature
Media
Water
Port Size
1/2",3/4",1",1"1/4,1"1/2,2"
Place of Origin
Zhejiang, China
Model Number
6371MF
Brand Name
Safewell
Specification of our Ball Valve:
| Name | Full-flow Brass Ball valve |
| Size: | ½" . ¾" . 1", 1¼" .1½" . 2" |
| Material | 58-3A or CW617N or DZR |
| Working Pressure | ½" . ¾" . 1": 1Bar≤P≤24Bar 1¼" .1½" . 2": 1Bar≤P≤40Bar |
| Working Temperature | -20°C≤T≤120°C |
| Suitable Medium: | Water, Non-Causticity Liquid & Saturated Steam |
| Threads | BSP or NPT |
| Finish | Nickle Plated or Yellow Brass |
| Place of Origin | Zhejiang China(Mainland) |
| Delivery Port | Ningbo or Shanghai,China |
| Delivery Time | 30days |
| Terms of payment | L/C ,T/T |
| Supply ability | 3000 per day |
| Minimum order | 100PCS |
| Package | White Box then Standard Export Carton & Pallet.If customer has special requirement.It is available to provide the colorful package according to the design of customers |

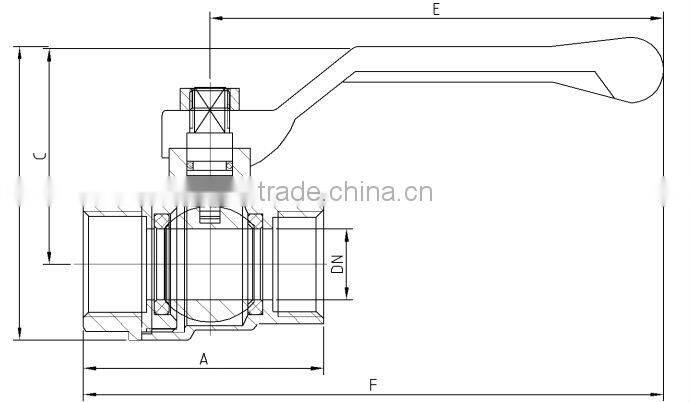

Size |
A |
B |
C |
DN |
E |
F |
1/2" |
48 |
57 |
42 |
14 |
85 |
110 |
3/4" |
56 |
66 |
50 |
19 |
85 |
113 |
1" |
65 |
75 |
52 |
24 |
98 |
130 |
1"1/4 |
78 |
90 |
68 |
31 |
115 |
155 |
1"1/2 |
95 |
110 |
80 |
39 |
130 |
178 |
2" |
102 |
123 |
85 |
50 |
132 |
183 |

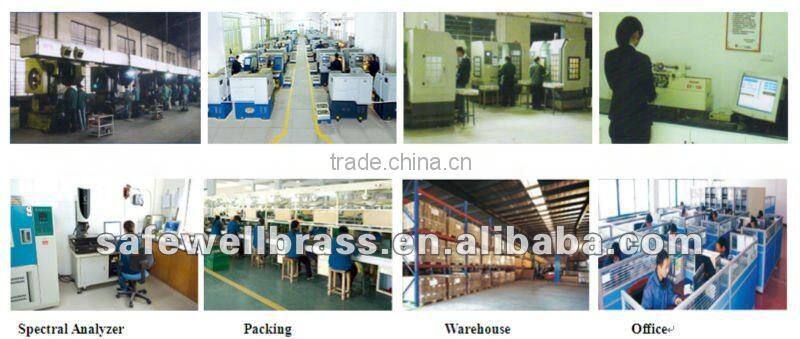

Introduction of Production Line
