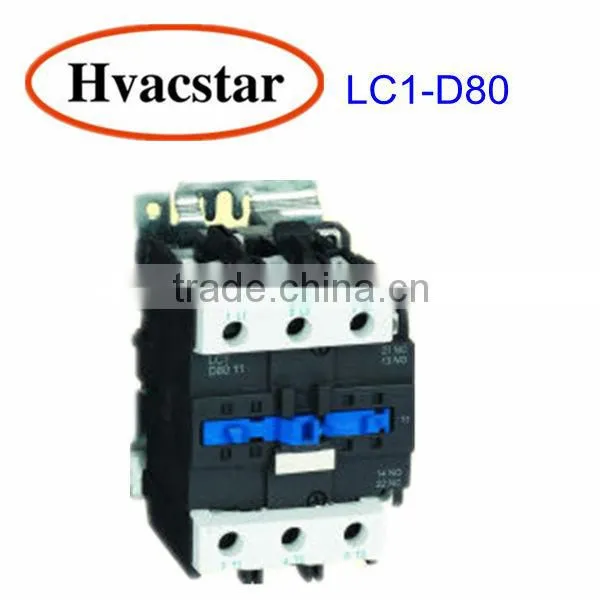

Cjx2-d80 AC Magnetic Contactor

Cjx2-d80 AC Magnetic Contactor thumbnail-1
Cjx2-d80 AC Magnetic Contactor photo-1
US$ 1 - 30 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Hvacstar or OEM
Model Number:
LC1-D80 AC magnetic contactor, LC1-D80 AC magnetic contactor
Contact Supplier Request Quote Chat Now
Mingguang Hecheng Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Hvacstar or OEM
Model Number LC1-D80 AC magnetic contactor, LC1-D80 AC magnetic contactor
Electricity Type Other, AC, AC
Number of Pole Other, 3, 3
Phase Other, 3, 3
Main Circuit Rating Voltage Other, 690v, 380v
Main Circuit Rating Current Other, 100a, 80a

Specifications

LC1-D(JX2) series AC contactors are suitable for frequency 50/60Hz rated insulation voltage up to 1000V

Product details





  LC1-D(JX2) series A.C. contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9-330A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent starting/stopping & controlling A.C. Motors. It is used in combination with thermal relay to compose a magnetic motor starter.

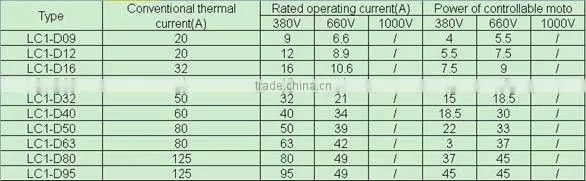

Specification:





Type   LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32
Rated working current (A) AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current (A)   20 20 32 40 50
Electrical life AC4 x 104 20 20-15 20-7 15-7 15-7
AC3 x 106 2 2 2 2 2
Mechanical   20 20 20 20 20
Number of the contact   3P+NO
3P+NC





Type   LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working
current (A)		 AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 11 15 18.5 22 25
380/400V 18.5 22 30 37 45
415V 22 25 37 45 45
440V 22 30 37 45 45
500V 22 30 37 55 55
660/690V 30 33 37 45 45
Rated heat current (A)   60 80 80 125 125
Electrical life AC4 x 104 10-7 7 7-6 7-5 7-5
AC3 x 106 2 2 1.6 1.6 1.6
Mechanical   20 20 20 10 10
Number of the contact   3P+NC+NO











cjx2-d80 AC magnetic contactor

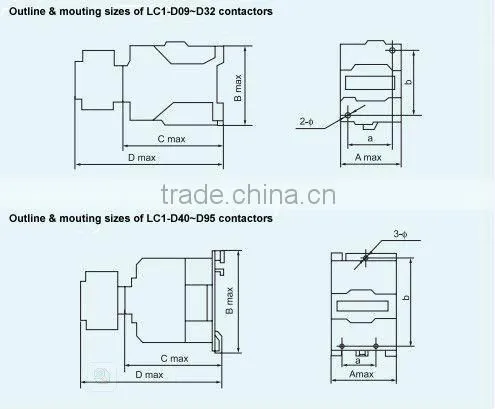

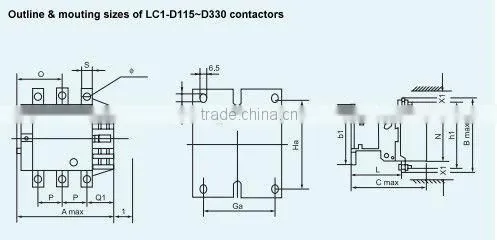

Outline and installation dimension:



cjx2-d80 AC magnetic contactorcjx2-d80 AC magnetic contactor



cjx2-d80 AC magnetic contactorcjx2-d80 AC magnetic contactorcjx2-d80 AC magnetic contactorcjx2-d80 AC magnetic contactor
