Home > Products > New Products > New design hydraulic coconut oil press
New design hydraulic coconut oil press
- 10 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | MEILI | Model Number: | Y31 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
hydraulic coconut oil press1.simple operation
2.two kinds of operations
3.various uses
4.hydraulic coconut oil press

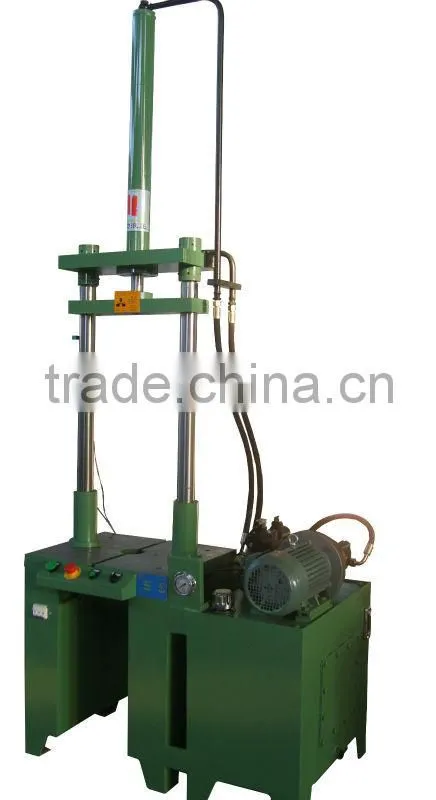

New design hydraulic coconut oil press
Type | Unit | 2.5T | 4T | 6.3T | 10T | 16T | 25T | 40T | |
Nominal force | KN | 25 | 40 | 63 | 100 | 160 | 250 | 400 | |
Max pressure of liquid | Mpa | 5 | 7.9 | 8 | 8.1 | 13 | 20.3 | 25 | |
Max opening height | MM | 300 | 390 | 450 | 500 | 550 | 600 | 600 | |
Ejector force | KN |
|
|
|
|
|
| 63 | |
Table size | F.B | MM | 400 | 400 | 400 | 400 | 450 | 450 | 450 |
L.R | MM | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Ejector Stroke | MM |
|
|
|
|
|
| 120 | |
Slide speed | Idle stroke down | MM/S | 42 | 45 | 45 | 45 | 45 | 45 | 42 |
Working | MM/S | 0-42 | 0-45 | 0-45 | 0-45 | 0-45 | 0-45 | 10 | |
Return | MM/S | 77 | 77 | 81 | 81 | 80 | 80 | 70 | |
Outline dimensions | L.R | MM | 560 | 560 | 580 | 650 | 650 | 750 | 1484 |
F.B | MM | 725 | 780 | 935 | 1100 | 1140 | 1200 | 1350 | |
Height | MM | 1450 | 1630 | 1675 | 1800 | 1800 | 2100 | 2406 | |
Table height above the floor | MM | 700 | 710 | 700 | 710 | 710 | 710 | 700 | |
Diameter of blank-holding hole | MM | 70 | 70 | 80 | 80 | 100 | 100 | 100 | |
Motor power | KW | 2.2 | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | |
Total weight | T | 0.5 | 0.75 | 1 | 1.3 | 2 | 2.3 | 2 |
