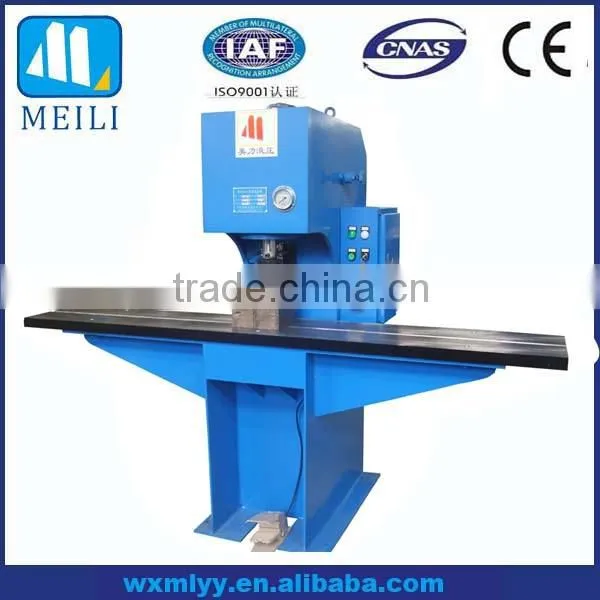

YW41-MEILI-hydraulic Press

Name: YW41-MEILI-hydraulic Press
Brand: MEILI
SKU: 119263377
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

MEILI

Model Number:

YW41

Wuxi Meili Hydraulic Pressure Machine Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name MEILI

Model Number YW41

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

hydraulic swing arm cutting press
1.simple operation
2.directional sensitivity and effciency
3.with new design

Type		Unit	4T	6.3T	10T	16T	25T	40T	63T
Nominal force		KN	40	63	100	160	250	400	630
Max pressure of liquid		Mpa	7.9	8	8.1	7.9	20.3	22.6	24.7
Max opening height		MM	105	105	140	130	130	300	300
The velocity of the spindle nose	Down	MM/S	45	45	45	45	45	49	53
The velocity of the spindle nose	Return	MM/S	75	86	75	75	105	88	95
Max stroke of the piston rod		MM	45	45	120	45	120	200	200
Depth of throat		MM	110	120	130	110	140	240	300
Table size	F.B	MM	300	450	350	300	350	400	500
Table size	L.R	MM	1000	1000	1600	1000	1600	2000	2000
Table height above the floor		MM	800	800	800	800	900	900	900
Motor power		KW	2.2	3	4	2.2	5.5	5.5	7.5
Outline dimensions	F.B	MM	740	920	920	740	920	1150	1460
	L.R	MM	1000	1000	1600	1000	1600	1800	2000
	Height	MM	1400	1520	1665	1400	1745	1950	2130
Total weight		T	0.8	1	1.2	0.8	2.5	1.8	4.5

Type		Unit	100T	160T	200T	315T	400T	500T
Nominal force		KN	1000	1600	2000	3150	4000	5000
Max pressure of liquid		Mpa	26.3	26	25	25	25	25
Max opening height		MM	450	500	500	600	600	600
The velocity of the spindle nose	Down	MM/S	26	25	25	25	22	20
The velocity of the spindle nose	Return	MM/S	48	58	50	55	52	53
Max stroke of the piston rod		MM	320	320	500	500	500	500
Depth of throat		MM	350	380	380	380	400	450
Table size	F.B	MM	2000	2000	2000	2000	2000	2000
Table size	L.R	MM	500	600	600	600	600	600
Table height above the floor		MM	980	1000	1000	1000	1000	1000
Motor power		KW	5.5	7.5	15	22	22	22
Outline dimensions	L.R	MM	2000	2000	2000	2000	2000	2000
	F.B	MM	1550	1650	1650	1800	1800	1800
	Height	MM	2700	2800	3000	3200	3500	3700
