Home > Products > YW41 straightening hydraulic machine > Straightening hydraulic machine

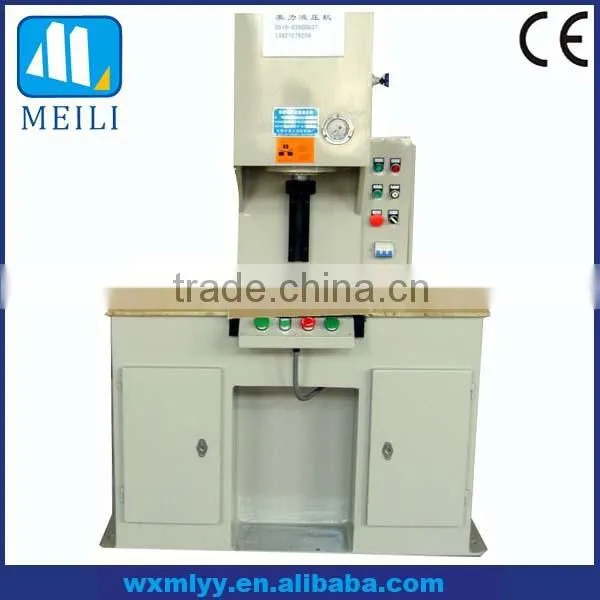

Straightening hydraulic machine
- 10 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | MEILI | Model Number: | YW41 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
hydraulic swing arm cutting press1.simple operation
2.directional sensitivity and effciency
3.with new design
Being connected hydraulic swing arm cutting press
Type | Unit | 100T | 160T | 200T | 315T | 400T | 500T | |
Nominal force | KN | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | |
Max pressure of liquid | Mpa | 26.3 | 26 | 25 | 25 | 25 | 25 | |
Max opening height | MM | 450 | 500 | 500 | 600 | 600 | 600 | |
The velocity of the spindle nose | Down | MM/S | 26 | 25 | 25 | 25 | 22 | 20 |
Return | MM/S | 48 | 58 | 50 | 55 | 52 | 53 | |
Max stroke of the piston rod | MM | 320 | 320 | 500 | 500 | 500 | 500 | |
Depth of throat | MM | 350 | 380 | 380 | 380 | 400 | 450 | |
Table size | F.B | MM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
L.R | MM | 500 | 600 | 600 | 600 | 600 | 600 | |
Table height above the floor | MM | 980 | 1000 | 1000 | 1000 | 1000 | 1000 | |
Motor power | KW | 5.5 | 7.5 | 15 | 22 | 22 | 22 | |
Outline dimensions | L.R | MM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
F.B | MM | 1550 | 1650 | 1650 | 1800 | 1800 | 1800 | |
Height | MM | 2700 | 2800 | 3000 | 3200 | 3500 | 3700 |
