JS SOLAR - Full Certified 240/250/260W Poly Solar Panel

Name: JS SOLAR - Full Certified 240/250/260W Poly Solar Panel
Brand: JS SOLAR
SKU: 119259451
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

JS SOLAR

Specification:

Normal

Jiangsu Jiasheng Photovoltaic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name JS SOLAR

Specification Normal

Application Commercial

Output Voltage (V) 36V

Specifications

standard size panel
N0.1 Quality Vs. Cost
covered by UL, TUV, IEC, CSA, CE, MCS, ISO9001/14001
good price and performance

JS SOLAR - TUV CE CEC UL MCS Certified 240/250/260W Poly Solar Panel

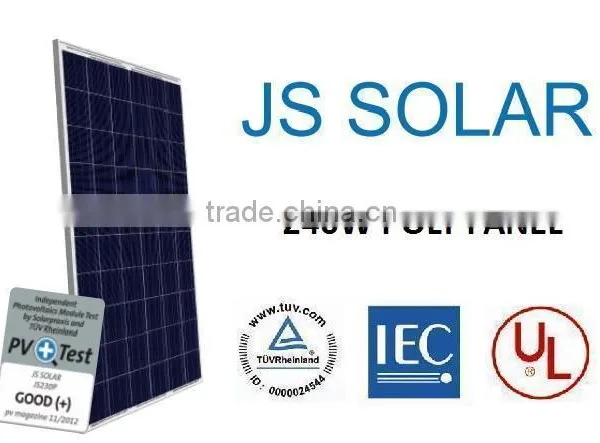

Product show

Electrical Characteristics

	JS240P	JS250P	JS260P
Optimum Operating Voltage (Vmp)	30.10V	30.48V	30.32V
Optimum Operating Current (Imp)	7.96A	8.24A	8.39A
Open Circuit Voltage (Voc)	36.60V	36.80V	37.00V
Short Circuit Current (Isc)	8.70A	8.85A	9.00A
Maximum Power at STC (Pmax)	240W	250W	260W
Module Efficiency	14.75%	15.37%	15.93%

Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	15 A
Power Tolerance	0/+3%

STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;

Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%

Mechanical Characteristics

Solar Cell	Poly-crystalline silicon 156 × 156 mm (6 inches)
No. of Cells	60(6 × 10)
Dimensions	1640 × 992 × 40mm
Weight	20.0 kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP67 rated (3 bypass diodes)
Output Cables	TUV (2Pfg1169:2007), UL 4703, UL444.0 mm2, symmetrical lengths (-) 900mm and (+) 900 mm
Connectors	MC4 compatible
Mechanical load test	5400Pa
Resistance	277g steel ball falls down from 1m height and 60m/s wind

Temperature Characteristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.45 %/°C
Temperature Coefficient of Voc	-0.32 %/°C
Temperature Coefficient of Isc	0.06 %/°C
