Poly Solar Panel 255W With 156*156 Solar Cell for Solar Energy System Home/commercial Use Covering TUV, IEC, UL, MCS, CE, CSA,

Poly Solar Panel 255W With 156*156 Solar Cell for Solar Energy System Home/commercial Use Covering TUV, IEC, UL, MCS, CE, CSA, photo-1
Negotiable MOQ: 20 Feet (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
JS Solar
Model Number:
JS 255P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name JS Solar
Model Number JS 255P
Specification Normal
Application Commercial

Specifications

Solar panel
Certificates:TUV,CE, IEC,UL,MCS,PV Test,etc.

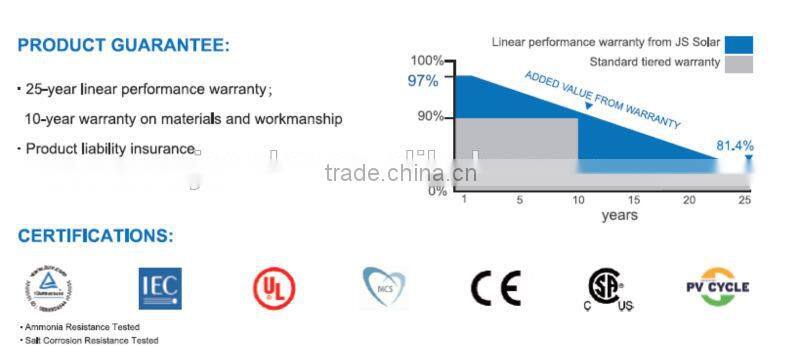

Warranty: 25 years' liner performance warranty

Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use

covering TUV, IEC, UL, MCS, CE, CSA





JS Solar introduction:



JS Solar has specialized in solar module field for several years. We have solar automatic production line with annual capability 600MW.



The largest Advantage: JS Solar is one of the top five global solar power companies which passed PV test of Mono/poly panels. (PV test is a test TÜV arranged in Germany’s Market. TÜV just collected panels randomly in Germany’s Market to do this test.)

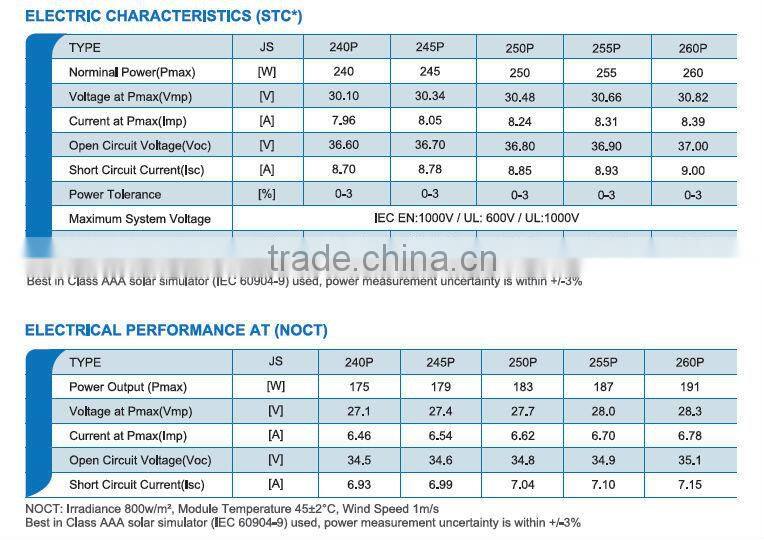

Specifications :



Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,





Factory Photos:

Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,





Solar Panel General Prduction Process(Simplified one):

Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Automatic Welding/ Soldering Production Line





Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Lay-up Process





Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Laminating





Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Curing





Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Test





Poly solar panel 255W with 156*156 solar cell for solar energy system home/commercial use covering TUV, IEC, UL, MCS, CE, CSA,

Packaging
