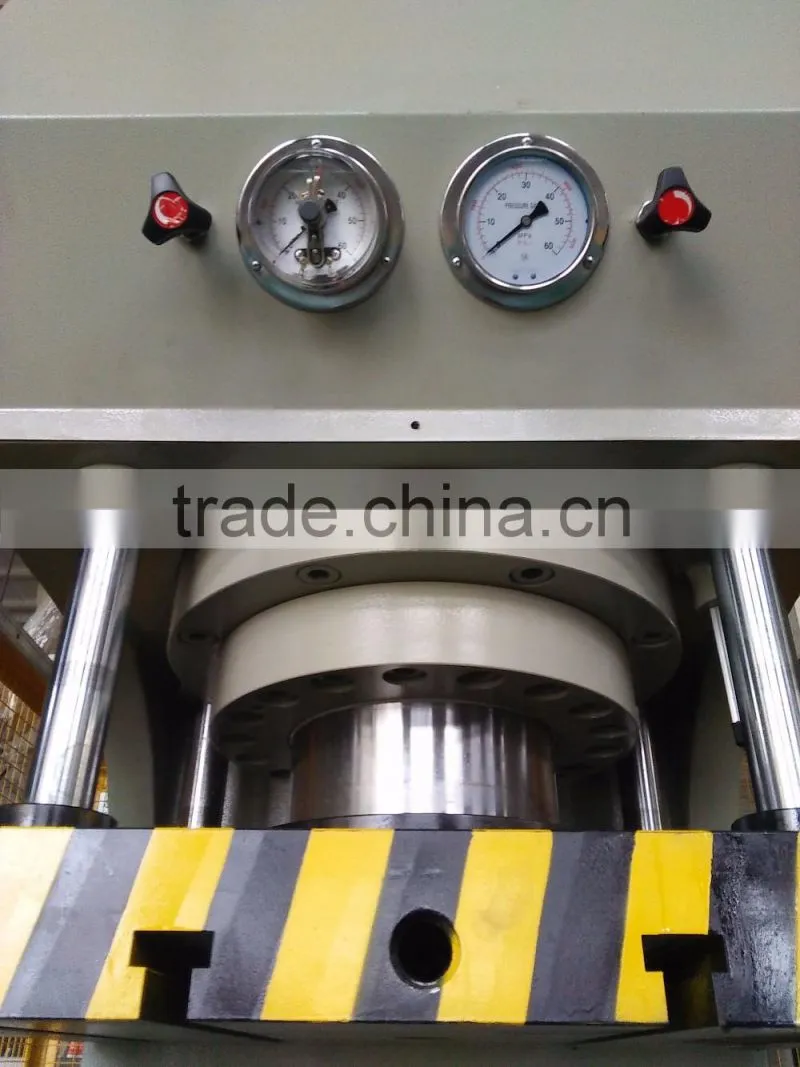

Direct Factory Hydraulic Press for Rubber Vulcanization

Name: Direct Factory Hydraulic Press for Rubber Vulcanization
Brand: MEILI
SKU: 119258485

US$ 999.00 - 999.00 MOQ: 1 Set

Key Specifications

Condition:

Used

Year:

2016

CNC or Not:

CNC

Wuxi Meili Hydraulic Pressure Machine Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Year 2016

CNC or Not CNC

Power Source Hydraulic

Place of Origin Jiangsu, China

Brand Name MEILI

Model Number Y41-160ton

Voltage 220V/380V(According

Power(W) 18kw

Weight 18T

Dimension(L*W*H) 1500*700*1800mm

Certification CE ISO

Warranty 2 Years

After-sales Service Provided Engineers available to service machinery overseas

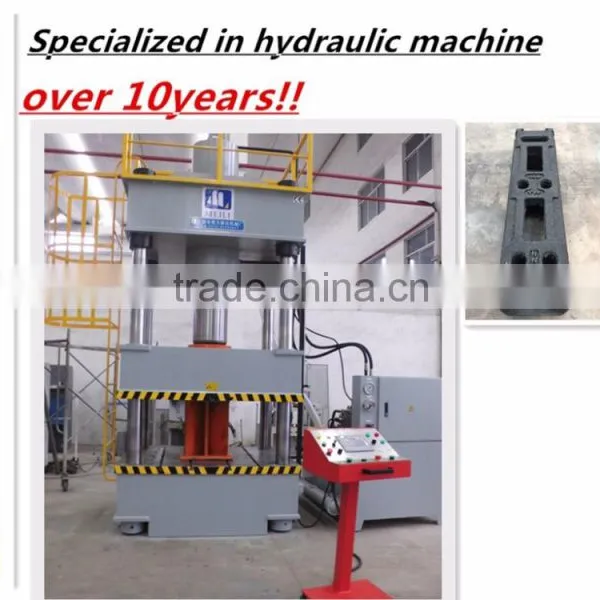

Y41BSeries four column hydraulic press is mainly applied to smaller auoto parts, bearings, electric appliance, plastic forming and train etc.

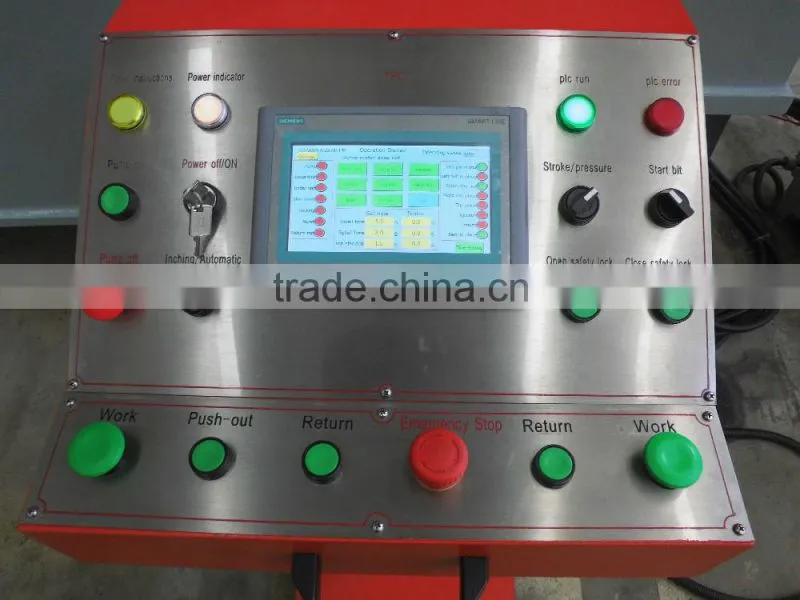

Controlled by PLC, double hands buttons and emergency button in automatic and manual.

Following are the specifications

Nominal Force		KN	1000	1600	1600	2500
Max. pressure of liquid		Mpa	25	25	25	25
Max. opening height		mm	800	800	800	800
Max. slide stroke		mm	500	500	500	500
Slider Speed	Downstream Speed	mm/s	200	210	260	210
	Working Speed	mm/s	10	18	7-15	12
	Return Speed	mm/s	180	250	240	200
Throat Depth		mm	320	330	330	330
Cushion Force		KN	400	630	630	1000
Cushion Stroke		mm	200	200	200	200
Cushion Size		mm	360x360	500x500	500x500	500x500
The force of upper ejector		KN	/	60	60	60
The stroke of upper ejector		mm	/	210	200	210
Upper Ejector Diameter		mm	/	140	140	140
Upper-table Size	F.B.	mm	500	600	600	600
Upper-table Size	L.R.	mm	550	800	800	800
Lower-table Size	F.B.	mm	600	650	650	650
Lower-table Size	L.R.	mm	800	900	900	1100
Cushion speed	Eject up	mm	/	/	80	/
Cushion speed	Return	mm	/	/	140	/
The height between worktable and the floor		mm	950	980	980	1100
Overall Dimensions (Approx)	L.R.	mm	1530	1630	1300	1700
	F.B.	mm	1530	1700	1600	2000
	Height above floor	mm	3300	3560	3600	3800
Motor Power		KW	7.5	11	18.5	15
Voltage			380V, 50Hz, 3 Phase
Operating Temperature		℃	0-40	0-40	0-40	0-40
Weight		Tons	6	9	9	12
Upper ejector			/	√	√	√
Movable protective net			√	√	√	√
Side supports			√	√	√	√
