Home > Products > JS Small modules > JS70w~JS90w Monocrystalline Panel

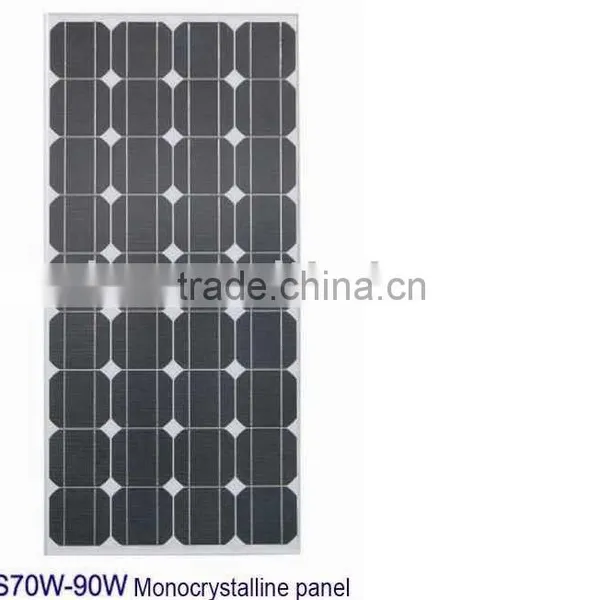

JS70w~JS90w Monocrystalline Panel
Negotiable
/ Piece
1 Piece(Min. Order)
You May Like
Product Details
| Place of Origin | China | Brand Name | JIASHENG SOLAR | |
| Model Number | JS70~90W | Material | Monocrystalline Silicon | |
| Size | 1194*542*35mm | Number of Cells | 36 | |
| Max. Power | 90w |
Product Description
Specifications
JS70w~JS90w Monocrystalline Panel| Cells | No. of cells | Dimension of module | Weight | Maximum Power | Open-Circuit voltage | Short-circuit current | Voltage at Pmax | Current at Pmax | |
| (mm) | (kg) | (Pm) | (Voc) | (Isc) | (Vmp) | (Imp) | |||
| JS070D | 125*125 | 4*9=36 | 1194*542*35 | 7.8 | 70Wp | 21.6V | 4.85A | 17.0V | 4.12A |
| JS075D | 125*125 | 4*9=36 | 1194*542*35 | 7.8 | 75Wp | 21.7V | 5.06A | 17.5V | 4.58A |
| JS080D | 125*125 | 4*9=36 | 1194*542*35 | 7.8 | 80Wp | 21.8V | 5.06A | 17.5V | 4.58A |
| JS085D | 125*125 | 4*9=36 | 1194*542*35 | 7.8 | 85Wp | 20.0V | 5.17A | 18.0V | 4.73A |
| JS090D | 125*125 | 4*9=36 | 1194*542*35 | 7.8 | 90Wp | 22.2V | 5.29A | 18.3V | 4.92A |
