Help CenterColor Steel and Aluminum Coil Slitting Machine
Related Products
Specifications
HT aluminum coil slitting machine1.speed : 10-12m/min
2.step of forming roller : 4 steps
3.chain : 19.05mm
4.cutter : 3sets
HT aluminum coil slittingmachine
1. main parameter of aluminum slitting machine
| 1 | Material of frame |
(high grade) 80mm H shape steel welding |
| 2 |
Thickness of middle plate |
12mm |
| 3 | Step of forming roller |
4steps |
| 4 | Diameter of shaft |
61mm |
| 5 |
Drive type |
drive by chain |
| 6 |
Chain |
19.05 mm (high grade) |
| 7 | Bearing |
6210 (high grade) |
| 8 | Reducer |
5# (high grade) |
| 9 |
Line speed |
about 10-12 m/min |
| 10 |
Feeding width |
1000-1200mm |
| 11 |
Suitable coil thickness |
0.35-0.50mm |
| 12 | Cutter | 3sets |
| 13 | Weight of machine | about 0.9T |
| 14 |
Appearance size of machine |
1.5m (length)*1.0m (width) *1.2m (height) |
| 15 |
Electrical parts |
DELIXI or CHINT |

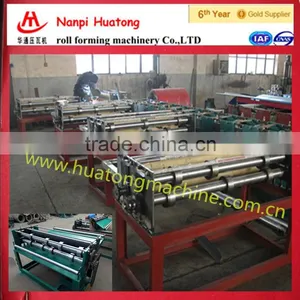

2.machines'photos
Delivery:
The machines will be ready within30 days from receipt of down payment as well as approval of sales contract, technical scheme and profile drawing. The shipment will be made within 10 days after the seller receives the balance by T/T.
Terms of payment:
30% of the contract amount as down payment after signed the contract; the balance is to be paid by T/T before shipment. Installation charge is to be paid before installation by T/T.
Cost of installation:
The buyer should pay the installation charges (USD 50 one man one day). to the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
Product warranty:
12 month, and we will provide the technical support for the whole life of the equipment.
3.certifications
l companys' information
l 1).Our machine can use galvanized steel sheet,colored armor plate or alumin eliable,endurable,maintence-free.
l 3).We can make and design what kinds of roll forming machine according to the request of customers.
l 4). OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
l 5). With 20 years professional manufacture experience
l 6). Prompt Delivery&Competitive Price
l um plate as the material plate.
l 2).Controlling by computer,PL display,operationis easy,running is steadyand r
l 7). Main markets: Middle East, Europe, North America, Africa,Southeast Asia, Latin America etc.
Our machine is different with other machine
1). Material of machine main frame: our is” I” beam, low price is “H” beam.
2). Size of machine main frame : our is 360mm, low price is 250-350mm.
3). Thickness of middle plate : our is 14mm, low price is 10-12mm.
4). Type of shaft : our is solid, low price is hollow, they use steel pipe instead of shaft.
5). Diameter of shaft : our is 74mm, low price is 50-60mm.
6). Material of shaft : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
7). Material of roller : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
8). Size of roller : our is bigger than low price machine
9). Treatment of roller surface: our is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated.
10). Size of chain : our is 25.4 mm (high grade and “DONGHUA BRAND”famous brand of China), low price is 19.05mm(not high grade and famous brand of China).
11). Bearing : 6210 (high grade and “HAERBIN BRAND”famous brand of China), low price is not high grade and famous brand of China.
12). Motor and Reducer : our is 5# cycloid reducer (high grade and “MENGNIU BRAND” famous brand of China), low price is 4#(not high grade and famous brand of China).
Note : we can customize the design and fabrication on the
particular type of machine according to the request of customer.
