Help CenterHT Aluminum Steel Panel Slitting Machine
Related Products
Specifications
HT aluminum coil slitting machine1.speed : 10-12m/min
2.step of forming roller : 4 steps
3.chain : 19.05mm
4.cutter : 3sets
HT aluminum coil slittingmachine
1. main parameter of aluminum slitting machine
| 1 | Material of frame |
(high grade) 80mm H shape steel welding |
| 2 |
Thickness of middle plate |
12mm |
| 3 | Step of forming roller |
4steps |
| 4 | Diameter of shaft |
61mm |
| 5 |
Drive type |
drive by chain |
| 6 |
Chain |
19.05 mm (high grade) |
| 7 | Bearing |
6210 (high grade) |
| 8 | Reducer |
5# (high grade) |
| 9 |
Line speed |
about 10-12 m/min |
| 10 |
Feeding width |
1000-1200mm |
| 11 |
Suitable coil thickness |
0.35-0.50mm |
| 12 | Cutter | 3sets |
| 13 | Weight of machine | about 0.9T |

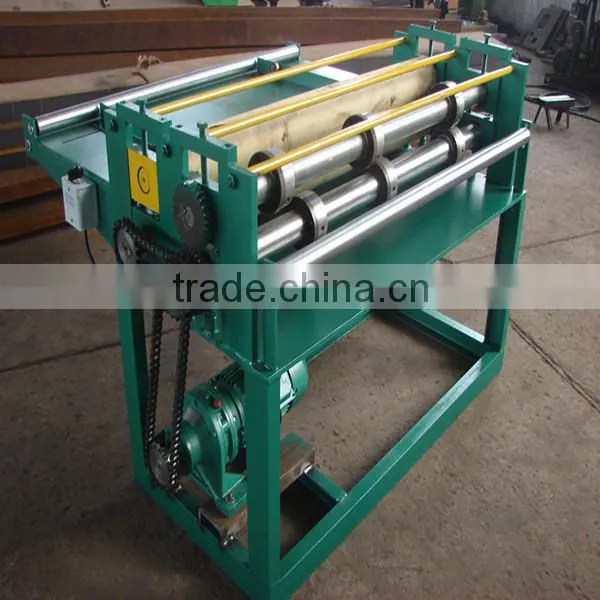

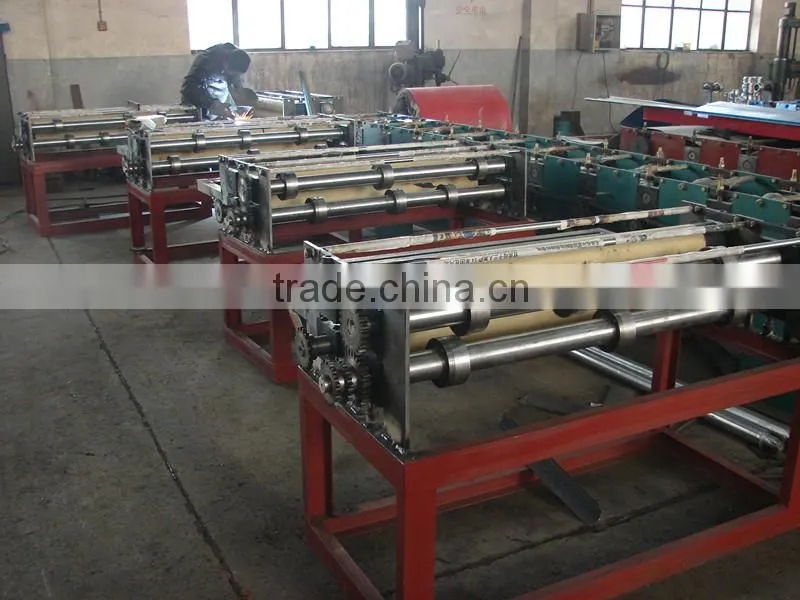

2.machines'photos

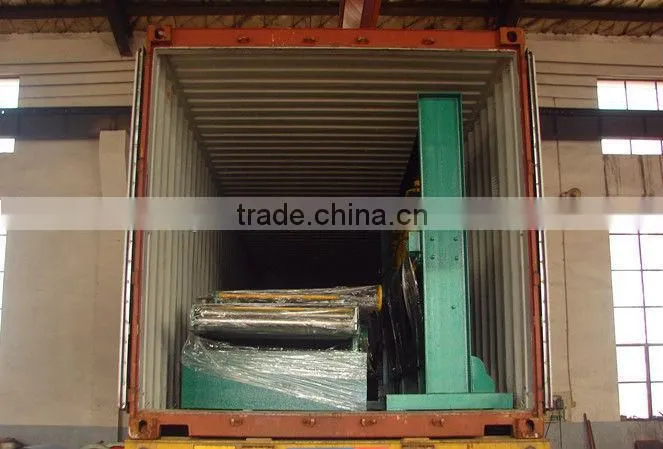

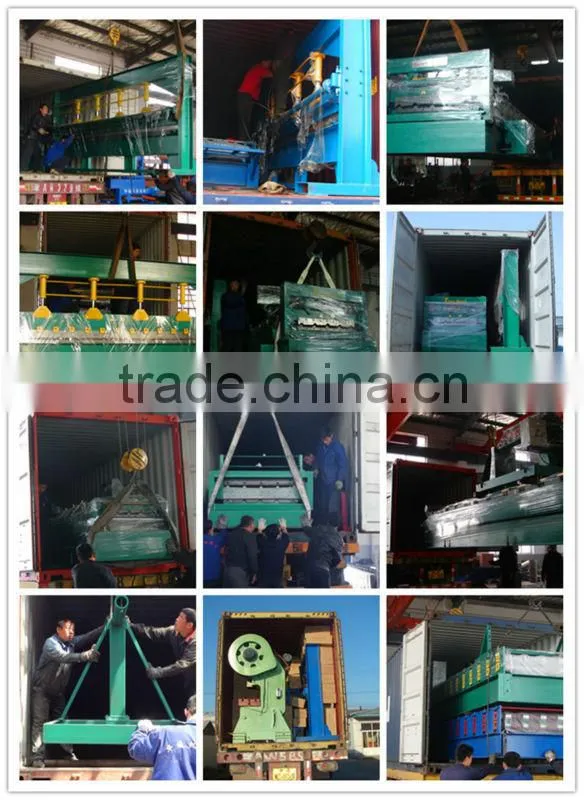

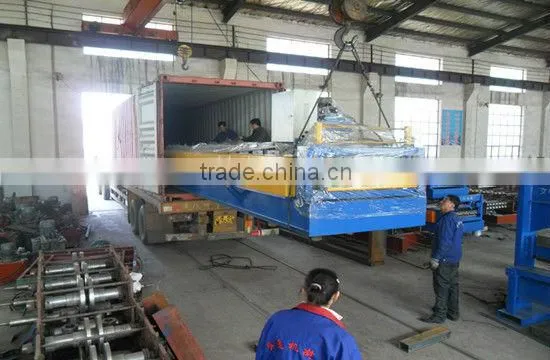

3.packaging &Shipping
1). Main aluminum coil slitting machine is covered by plastic film.
2). PLC computer control box, spare parts and other small parts
are packed by wooden carton box.
4. After-sales service:
1).We provide the technical support for whole life of our machines.
2).If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtrip ticket etc.
5.certifications
1).Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2).Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
3).We can make and design what kinds of roll forming machine according to the request of customers.
4). OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
5). With 20 years professional manufacture experience
6). Prompt Delivery&Competitive Price
7). Main markets: Middle East, Europe, North America, Africa,Southeast Asia, Latin America etc.
Note : we can customize the design and fabrication on the
particular type of machine according to the request of customer.
