Specifications
1. Rohs verified10w led emitter2. 50000h life span
3. 350mA 32-34V 1100-1200lm
4. 3 years warranty
5. Warm white 2500-2700K
Product Parameter of 10W LED emitter

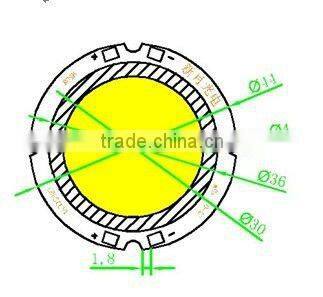

Notes:
1.All dimensions are in mm.
2.Tolerance is ±0.25 unless otherwise noted.
5W, 10W, 20W, 30W, 40 led emitter are all could be supplied.
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter
|
Symbol
|
Conditions
|
Min.
|
Avg.
|
Max.
|
Units
|
|
Luminous Intensity
|
Φ |
IF=700mA |
1100 |
|
1200 |
lm |
|
Color Temperature
|
CCT |
IF=700mA |
2500 |
|
2700 |
K |
|
Forward Voltage
|
VF |
IF=700mA |
32 |
|
34 |
V |
|
Color Rendering index
|
Ra |
IF=700mA |
70 |
|
75 |
− − |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
|
10 |
|
°C/W |
|
50% Power Angle
|
2q½ |
IF=700mA |
|
120 |
|
deg |
|
Reverse Current
|
IR |
VR=100V |
|
|
5 |
μA |

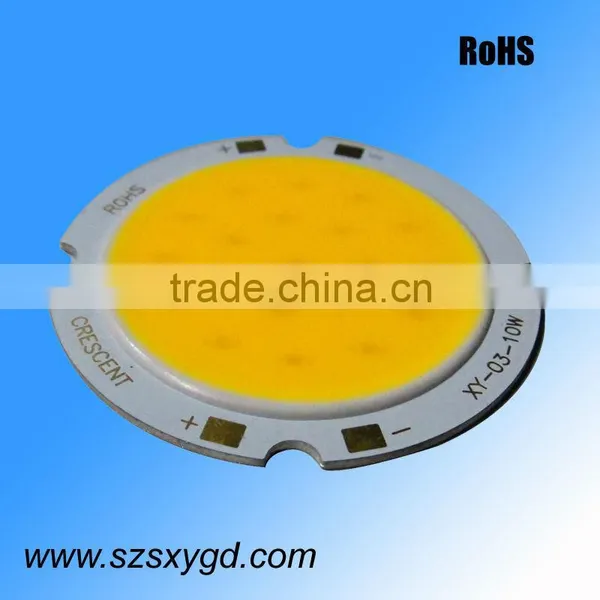

Information of 10W LED emitter
1.Advantages
New design
boarder emitting area
higher refractive index
softer light ray
Imported fluroscent powrder
high quantumn efficiency. low heat
2.Capsulation with silica gel, able to stand with high temperature, anti-fade, with high efficiency of reflection and transmission.
3. Insulation plastic material, bein able to stand high voltage and high temperature, no distortions.
4. Heat conductive base if made of aviation aluminum, fast in heat conductive.
5.Using high quality chip. Delicately arranged chip, to ensure unifor ray and quick heat dissipation.
