Specifications
1.Rohs Verified 10W COB2.50000h life span
3.350mA 32-34V
4. 3 years warranty
1. Product Parameter:
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter
|
Symbol
|
Conditions
|
Min.
|
Avg.
|
Max.
|
Units
|
|
Luminous Intensity
|
Φ |
IF=350mA |
800 |
|
900 |
lm |
|
Color Temperature
|
CCT |
IF=350mA |
3000 |
|
3100 |
K |
|
Forward Voltage
|
VF |
IF=350mA |
32 |
|
34 |
V |
|
Color Rendering index
|
Ra |
IF=350mA |
70 |
|
75 |
− − |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=350mA |
|
10 |
|
°C/W |
|
50% Power Angle
|
2q½ |
IF=350mA |
|
120 |
|
deg |
|
Reverse Current
|
IR |
VR=50V |
|
|
5 |
μA |
2. Product Features:
1). New design, broader emitting area, higher refractive index and softer light ray. Imported fluroscent powrder, high quantumn efficiency. low heat.
2).Capsulation with silica gel, able to stand with high temperature, anti-fade, with high efficiency of reflection and transmission.
3). Insulation plastic material, bein able to stand high voltage and high temperature, no distortions.
4). Heat conductive base if made of aviation aluminum, fast in heat conductive.
5). Using high quality chip. Delicately arranged chip, to ensure unifor ray and quick heat dissipation.

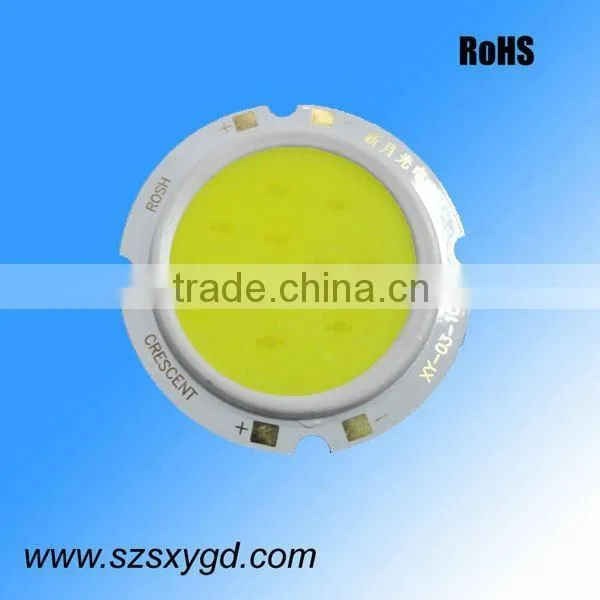

3. Prodcut Images:
