Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Deep Drawing Hydraulic Press With CE/ISO
Deep Drawing Hydraulic Press With CE/ISO
US$ 1 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
Used
Year:
2016
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Hydraulic Press With Much Higher PrecisionUS$ 1,000 - 100,000MOQ: 1 Set -
Hydraulic Machinery on SalesUS$ 999 - 9,999MOQ: 1 Set
-
500T Hydraulic Press Manufacturers for Aluminum/ SS Cookware MachineUS$ 999.00 - 999.00MOQ: 1 Set
-
Wheelbarrow Making Machine,160 Ton Hydraulic Press Vertical MachineUS$ 1,000 - 100,000MOQ: 1 Set
-
200ton Excellent Quality Hydraulic Metal Stamping Press MachineUS$ 999.00 - 999.00MOQ: 1 Set
Condition
Used
Year
2016
CNC or Not
CNC
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
MEILI
Model Number
Y32-315
Voltage
220V/380V(According
Power(W)
18kw
Weight
18T
Dimension(L*W*H)
2504*1790*3715mm
Certification
CE ISO
Warranty
2 Years
After-sales Service Provided
Engineers available to service machinery overseas

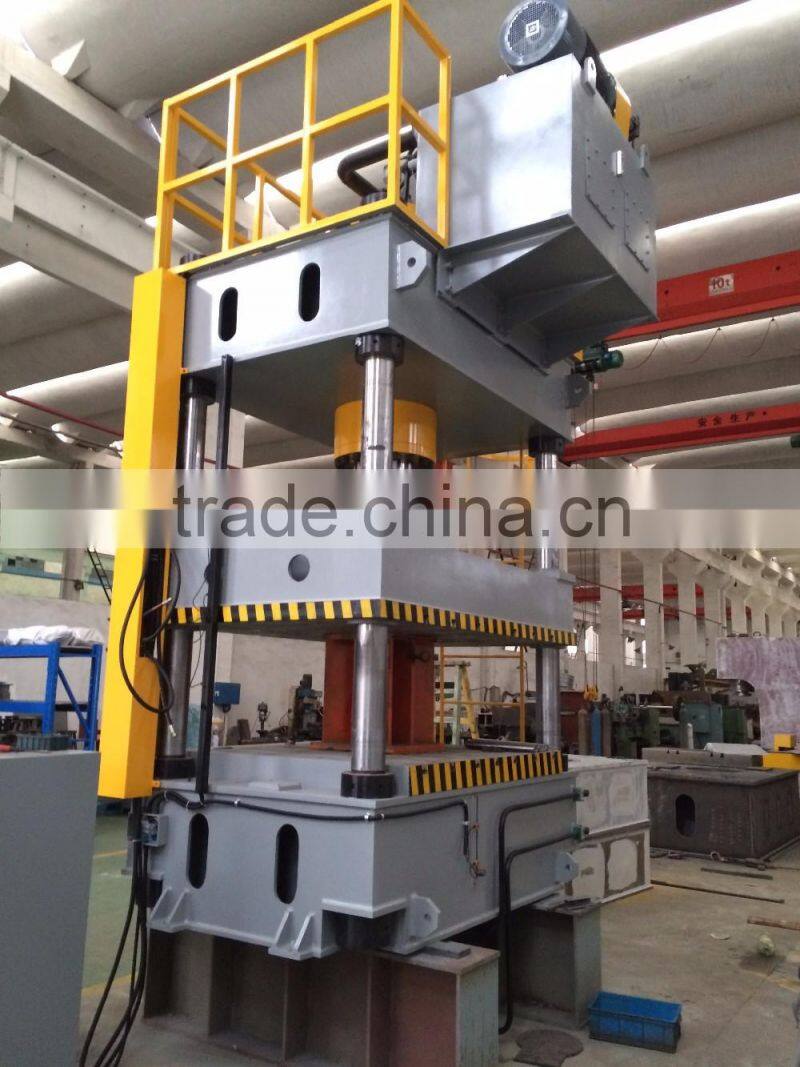

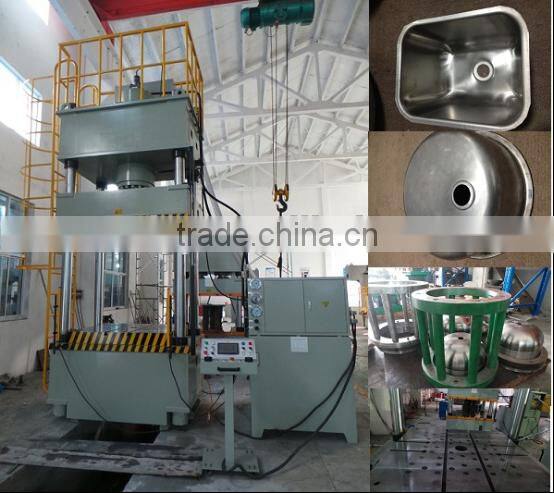

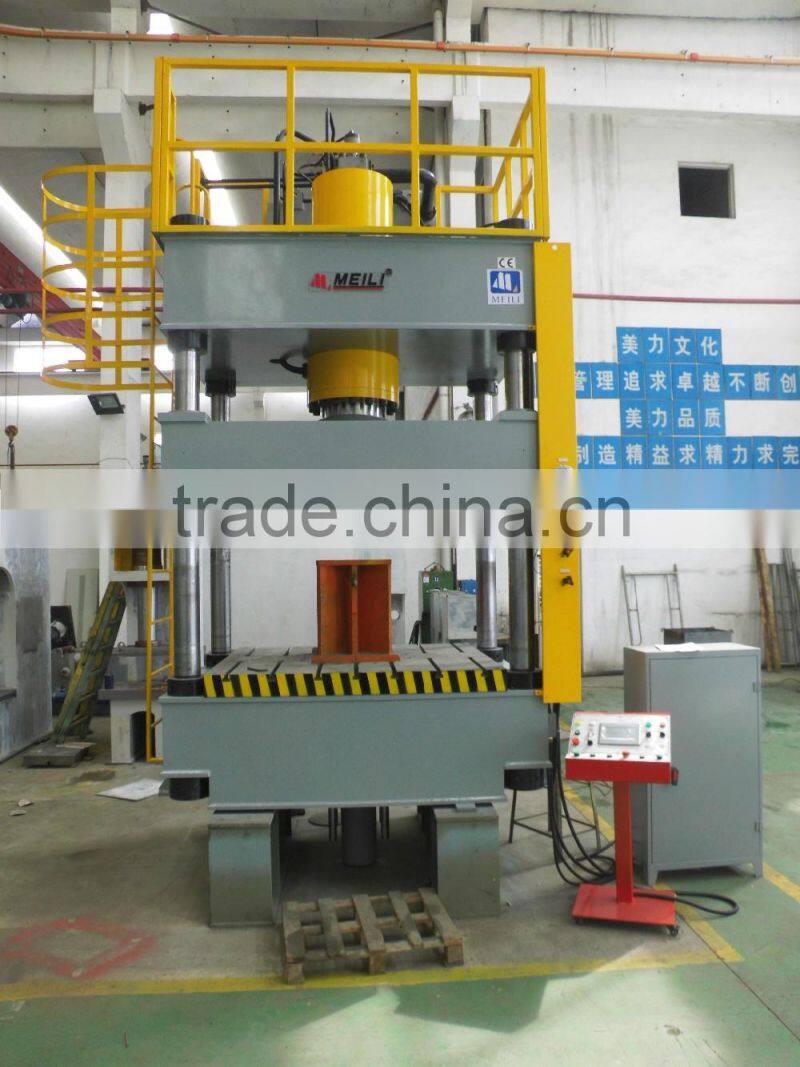

Y32 Series four column hydraulic press is mainly applied to motor, auoto parts, capped end, electric appliance, plastic forming and train etc.
Controlled by PLC, double hands buttons and emergency button in automatic and manual.
Following are the specifications
Description |
Unit |
315T |
|
Nominal force |
KN |
3150 |
|
Max liquid pressure |
Mpa |
25 |
|
Slide stroke |
mm |
800 |
|
Max. opening height |
mm |
1250 |
|
Cushion pressure |
KN |
630 |
|
Cushion stroke |
mm |
300 |
|
Cushion size |
mm |
500*500 |
|
Worktable size |
F.B. |
mm |
1200 |
L.F. |
mm |
1200 |
|
Ejection stroke |
mm |
300 |
|
Slide speed |
Idle |
mm |
100 |
Working |
mm |
8-15 |
|
Return |
mm |
70 |
|
Overall size |
F.B. |
mm |
3440 |
L.F. |
mm |
2220 |
|
Height |
mm |
3900 |
|
Motor power |
Kw |
22 |
|
Gross weight |
T |
15 |
|
Certifications:
Packing
