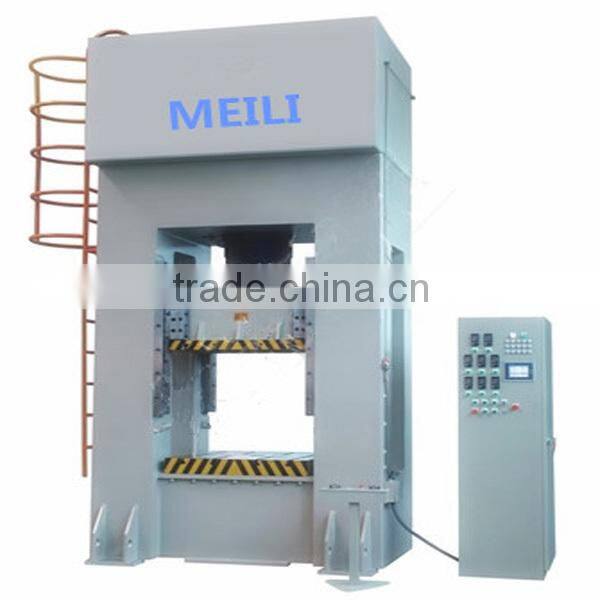

China Supply Y27 Vertical Frame Style Plastic Hot Press Machine
Specification
Item |
Hot Press Machine |
Model |
Hot Press Machine -Y27 - 2000T |
Type |
500T |
Nominal Force |
5000KN |
Ejector Force |
400KN |
Max. Pressure of Liquid |
24.4Mpa |
Ejector Stroke |
250mm |
Max. Opening Height |
1100mm |
Slide Stroke |
700mm |
Slide Speed |
Idle Stroke Down:100mm/s |
Working:8-15mm/s | |
Return:100mm/s | |
Table Size |
F.B:900mm |
L.R:900mm | |
Motor Power |
11KW |
Total Weight |
16T |
Warranty |
1 year |
Certificate |
CE, ISO9001 |
MOQ |
1 Set Hot Press Machine |
Delivery Time |
15-30days For Hot Press Machine |
Features
- Press the main frame of a four-post, the combination of frame, the overall frame of three, taking vibration aging treatment after welding, tempering rigidity, high accuracy
- Hydraulic control cartridge valve integrated system, a small impact, reliability, long life
- 4 corners using octahedral rail slide guide, good resistance to partial load performance
- Electrical system with PLC control
- Constant pressure can be achieved, given away two molding process, with Paul when rolling, dwell time is adjustable
- Working pressure, stroke can be adjusted according to process requirements within the specified range, easy to operate
Use
Automotive interior parts, auto parts, shipbuilding, glass steel products, household appliances, metal processing.
- Optional accessories or features
- Optoelectronic protective devices
- Moving table
- Retooling with floating rails and rolling bracket
- Mold clamping mechanism quickly
- Touch screen
- Stroke, pressure, speed digital numerical control device
- Hydraulic system cooling device, the displacement sensing device.

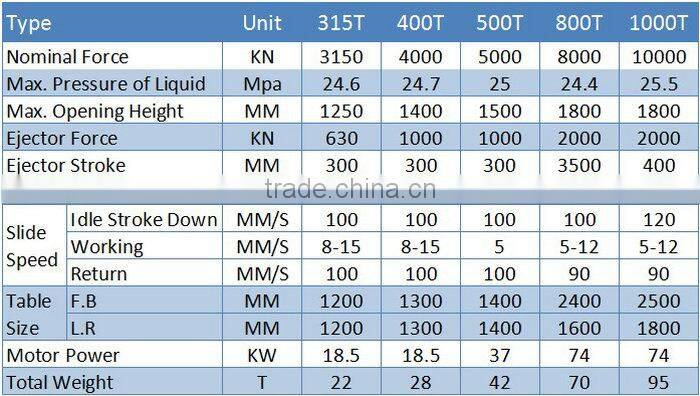

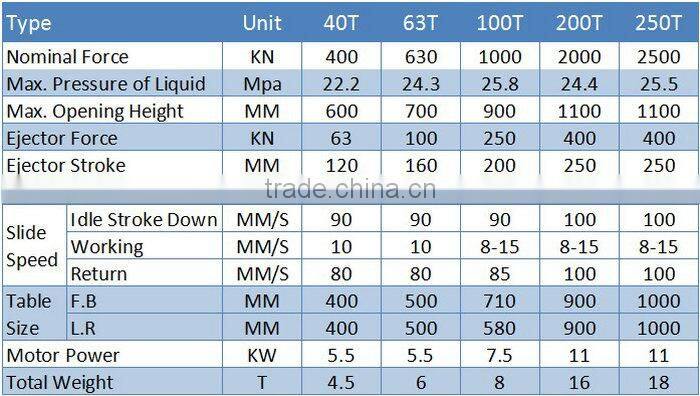

We offer other Hot Press Machine Specifications, such as follows:
We have passed the CE certificated for Hot Press Machine
Packaging
Hot Press Machine : Standard export packing or according to customers request
Shipping
By Sea
Payment Terms:30% advance payment,70% payment after receive the T/T single
Warranty: 1 year
1.Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer's country if you want, and the buyer must take charge of all the expenditure including airline tickets of our engineers when in the buyer's country to do the service!
2. Warranty period is 1 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by for ce injury) within 24 hours.
1. With 7 years of production experience
2. Producing all columns of hydraulic press. single-column hydraulic presses, double-column hydraulic machines, four-column hydraulic machines, hydraulic pressure management systems, hydraulic straightening machines, hydraulic machines and other machines, totally 8 series and 150 varieties.
3. Can be customized production of various types of non-standard Hot Press Machine
This is our factory for manufacture Hot Press Machine
This is our workshop for manufacture Hot Press Machine
