Specifications
1.Power of main motor : 7.5KW2.Feeding width : 0-1250mm
3.Color : Green
4.Certification : ISO9001;2000
5.Guarantee :1 year
TECHNICAL SCHEME
1. Name of machine:
HT Colored sheet metal straightening machine
2.Technical specification of straightening machine
(1) Thickness of middle plate : 60mm
(2) Shaft : 15
(3) Diameter of shaft (solid shaft): 105mm
(4) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and tempered treatment,hard chromize coated
(5) Drive type of roll forming machine : drive by chain
(6) Chain : 25.4 mm (high grade)
(7) Bearing : 6210 (high grade)
(8) Reducer : 6# cycloid reducer (high grade)
(9) Power of main motor : 7.5KW
(10) Voltage : 380V/50Hz/3phase
(11) Line speed : about 0-9 m/min
(12) Feeding width : 0-1250mm
(13) Suitable coil thickness : Max thickness for steel coil is 3.0mm.
(14) Appearance size of main machine : 1.5m (length)*1.2m (width) *1.2m (height)

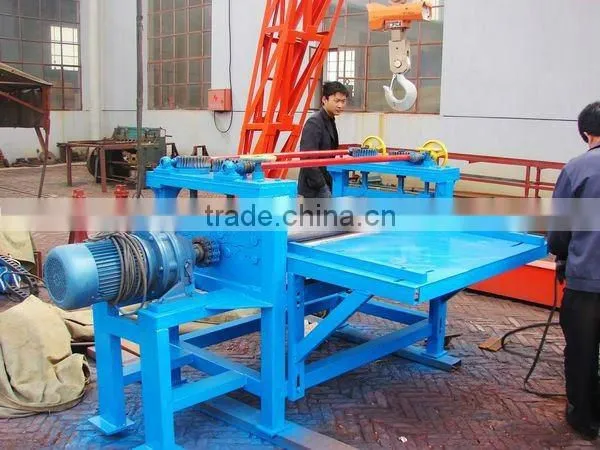

3.Picture of Colored sheet metal straightening machine
4.Certification of iso 9001;2000 for metal straightening machine
