Colored Steel Tile Leveling Machine

Colored Steel Tile Leveling Machine thumbnail-1
Colored Steel Tile Leveling Machine photo-1
US$ 18,417 - 41,465 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Use:
Wall
Contact Supplier Request Quote Chat Now
Nanpi Huatong Roll Forming Machinery Manufacturing Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang port TianJin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Colored Steel
Use Wall
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT Tile leveling machine
Certification ISO 9001:2000
Voltage 380V/50Hz/3phase

Specifications

1.Power of main motor : 7.5KW
2.Feeding width : 0-1250mm
3.Color : Green
4.Certification : ISO9001;2000
5.Guarantee :1 year

TECHNICAL  SCHEME

1. Name of machine:

HT  Colored steel tile checking leveling machine



2.Technical specification of leveling machine

(1) Thickness of middle plate : 60mm

(2) Shaft : 15

(3) Diameter of shaft (solid shaft): 105mm

(4) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and tempered treatment,hard chromize coated

(5) Drive type of roll forming machine : drive by chain

(6) Chain : 25.4 mm (high grade)

(7) Bearing : 6210 (high grade)

(8) Reducer : 6# cycloid reducer (high grade)

(9) Power of main motor : 7.5KW

(10) Voltage : 380V/50Hz/3phase

(11) Line speed : about 0-9 m/min

(12) Feeding width : 0-1250mm

(13) Suitable coil thickness : Max thickness for steel coil is 3.0mm.

(14) Appearance size of main machine : 1.5m (length)*1.2m (width) *1.2m (height)

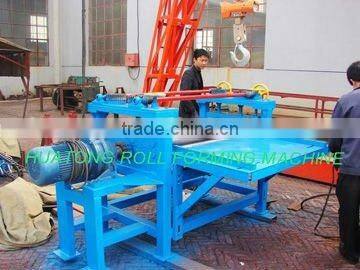

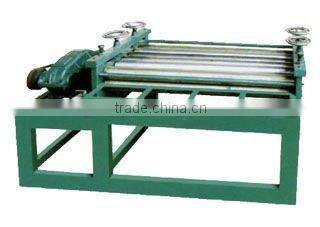

3.Picture of level machine

 Colored steel tile leveling machine

 Colored steel tile leveling machine

 4.Certification of iso 9001;2000 for tile leveling machine

Colored steel tile leveling machine
