Specifications
1.HT sheet leveler machine2.Speed: 0-9m/min
3.Color: blue etc
4:Certificate: ISO9001:2000
5.Control by PLC
Russian style level machine
NO. |
Item |
Parameter |
1 |
Thickness of middle plate |
60mm |
2 |
Shaft |
15 |
3 |
Diameter of shaft (solid shaft) |
105mm |
4 |
Material of shaft (solid shaft) |
(high grade) 45# Steel, quenched and tempered treatment,hard chromize coated |
5 |
Drive type of roll forming machine |
drive by chain |
6 |
Chain |
25.4 mm (high grade) |
7 |
Bearing |
6210 (high grade) |
8 |
Reducer |
6# cycloid reducer (high grade) |
9 |
Power of main motor |
7.5KW |
10 |
Voltage |
380V/50Hz/3phase |
11 |
Line speed |
about 0-9 m/min
|
12 |
Feeding width |
0-1250mm |
13 |
Suitable coil thickness |
Max thickness for steel coil is 3.0mm |
14 |
Appearance size of main machine |
1.5m (length)*1.2m (width) *1.2m (height)
|

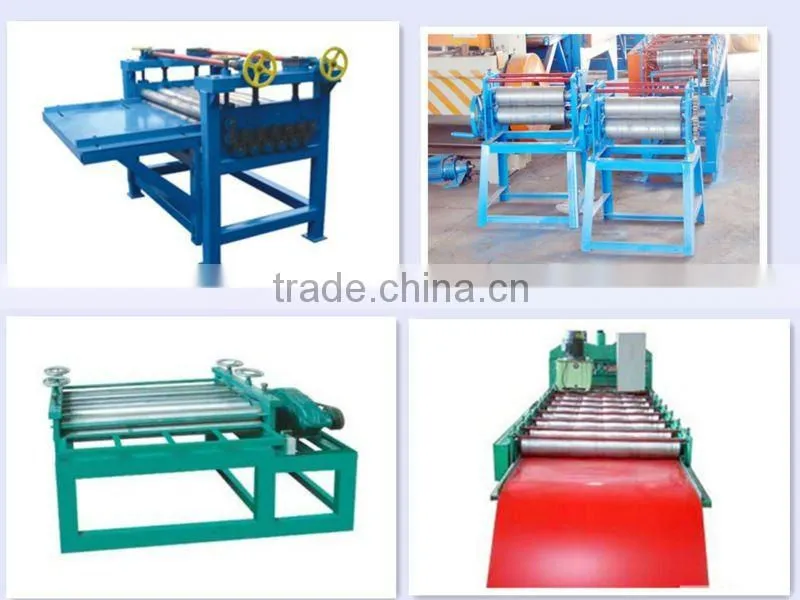

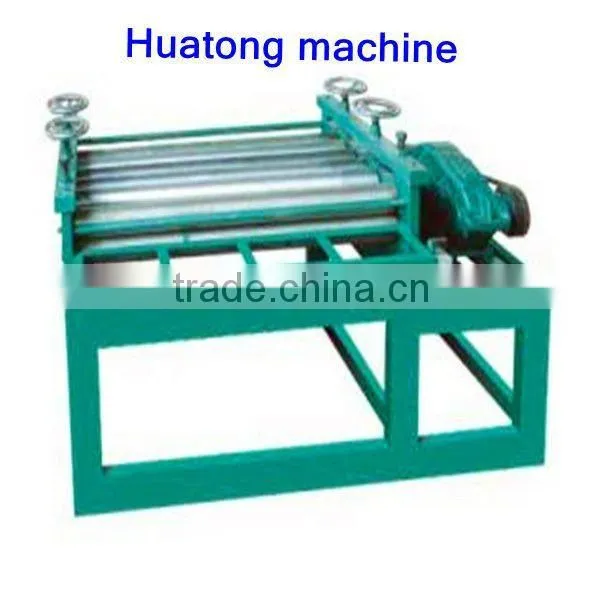

Picture of leveler machine
Certification of our company
OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
With 20 years professional manufacture experience
Prompt Delivery&Competitive Price
Main markets: Middle East, Europe, North America, Africa,Southeast Asia.
Welcome your inquiry
