Colored Steel Sheet Leveling Machine

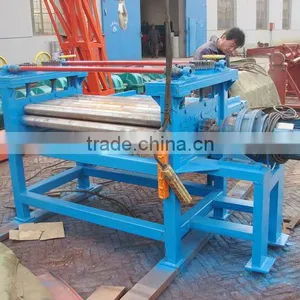

Colored Steel Sheet Leveling Machine thumbnail-1
Colored Steel Sheet Leveling Machine photo-1
US$ 18,417 - 41,465 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Nanpi Huatong Roll Forming Machinery Manufacturing Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang port TianJin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Wall
Production Capacity HUATONG
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT Colored steel sheet leveling machine
Power(W) 3KW
Voltage 380V/50Hz/3phase, 380V/50Hz/3phase
Dimension(L*W*H) 1.5m (length)*1.2m (width) *1.2m (height)
Weight 1Tons
Certification ISO 9001:2000, ISO 9001:2000
Warranty 1 year, whole life technical support

Specifications

1.Power of main motor : 3KW
2.Feeding width : 0-1250mm
3.Color : Green
4.Certification : ISO9001;2000
5.Guarantee :1 year

TECHNICAL  SCHEME

1. Name of machine:

HT Colored steel sheet leveling machine



2.Technical specification of steel sheet leveling machine

(1) Thickness of middle plate : 60mm

(2) Shaft : 15

(3) Diameter of shaft (solid shaft): 105mm

(4) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and tempered treatment,hard chromize coated

(5) Drive type of roll forming machine : drive by chain

(6) Chain : 25.4 mm (high grade)

(7) Bearing : 6210 (high grade)

(8) Reducer : 6# cycloid reducer (high grade)

(9) Power of main motor : 3KW

(10) Voltage : 380V/50Hz/3phase

(11) Line speed : about 0-9 m/min

(12) Feeding width : 0-1250mm

(13) Suitable coil thickness : Max thickness for steel coil is 3.0mm.

(14) Appearance size of main machine : 1.5m (length)*1.2m (width) *1.2m (height)

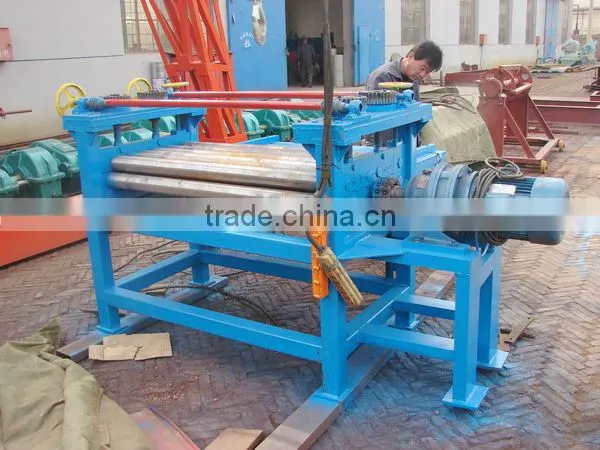

3.Picture of steel sheet leveling machine

Colored steel sheet leveling machine



 4.Certification of ISO 9001;2000

Colored steel sheet leveling machine
