Specifications
HT steel panel leveling machine1.Shaft: 15 steps
2.Line speed : about 0-9m/min
3.Easy control
4.Drive by gear
HT Steel panel and Aluminum plate leveling machine
1). we designed the parameters of machine for you as follow :
NO. |
Item |
Parameter |
1 |
Thickness of middle plate |
60mm |
2 |
Shaft |
15 |
3 |
Diameter of shaft (solid shaft) |
105mm |
4 |
Material of shaft (solid shaft) |
(high grade) 45# Steel, quenched and tempered treatment,hard chromize coated |
5 |
Drive type of roll forming machine |
drive by chain |
6 |
Chain |
25.4 mm (high grade) |
7 |
Bearing |
6210 (high grade) |
8 |
Reducer |
6# cycloid reducer (high grade) |
9 |
Power of main motor |
7.5KW |
10 |
Voltage |
380V/50Hz/3phase |
11 |
Line speed |
about 0-9 m/min
|
12 |
Feeding width |
0-1000mm |
13 |
Suitable coil thickness |
Max thickness for steel coil is 3.0mm |
14 |
Appearance size of main machine |
1.5m (length)*1.2m (width) *1.2m (height)
|
2). we can customize the design and fabrication on the particular type of machine according to the request of customer.

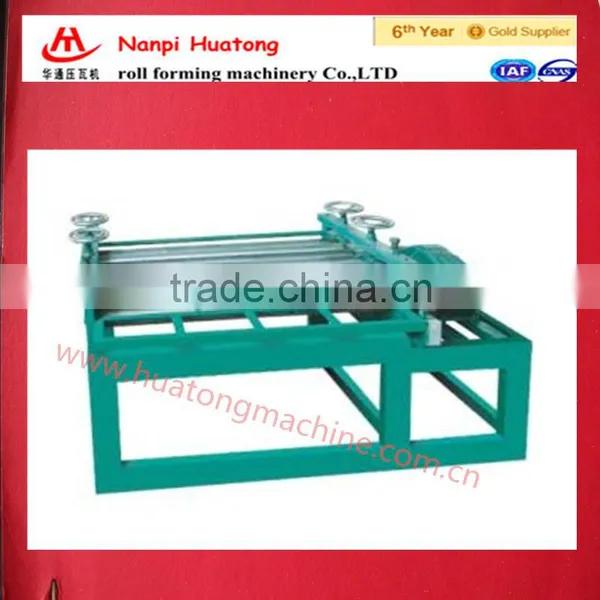

photo of leveling machine ( Photos just for reference )
Delivery:
The machines will be ready within 60 days from receipt of down payment as well as approval of sales
contract, technical scheme and profile drawing. The shipment will be made within 10 days after the
seller receives the balance by T/T.
Terms of payment:
30% of the contract amount as down payment after signed the contract; the balance is to be paid by
T/T before shipment. Installation charge is to be paid before installation by T/T.
Cost of installation:
The buyer should pay the installation charges (USD 50 one man one day). to the seller’s appointed
account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s
technicians travel cost outside China, including round air tickets fee, accommodation and food,
provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
Product warranty:
12 month, and we will provide the technical support for the whole life of the equipment.
Other terms:
Attached please see the technical scheme
Electric uncoiler
Manual uncoiler
Steel panel Slitting machine

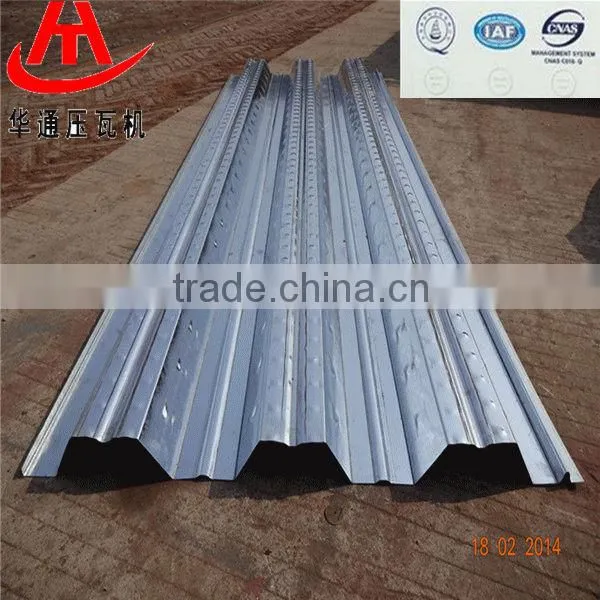

Floor Deck roll forming machine
Punching machine for decoration
Buckle panel roll forming machine
Double layer roll forming machine
Up-layer(Glazed tile roll forming machine )
Down-layer (Steel Wall Panel roll forming machine )

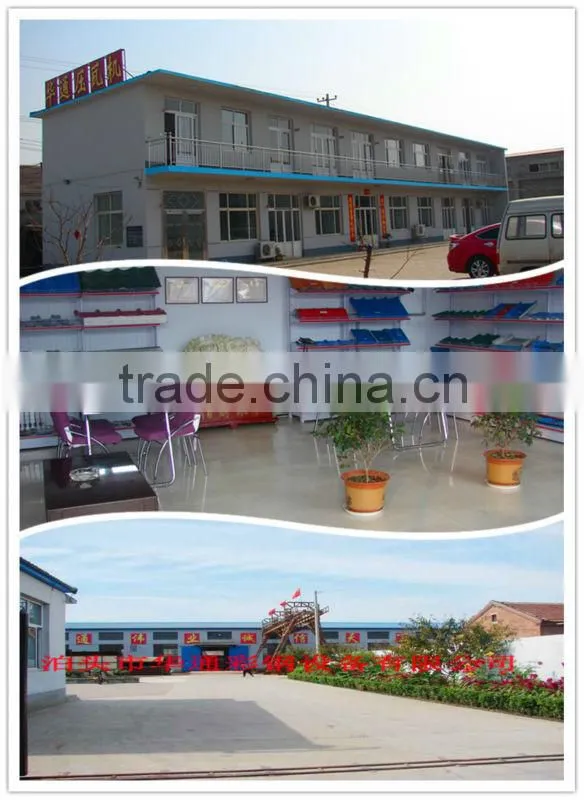

companys' information
1).Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2).Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
3).We can make and design what kinds of roll forming machine according to the request of customers.
4). OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
5). With 20 years professional manufacture experience
6). Prompt Delivery&Competitive Price
