Automatic Alignment Sheets Machine

Automatic Alignment Sheets Machine photo-1
US$ 19,879 - 45,895 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HUATONG
Model Number:
HT Automatic alignment sheets machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT Automatic alignment sheets machine
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic alignment sheets machine
1.Color : blue.
2.Cutter : 3.
3.Power : 2.2kw.
4.Effective width : 1.2m.

 Automatic alignment sheets machine



1. Name of production line :



Automatic alignment sheets machine

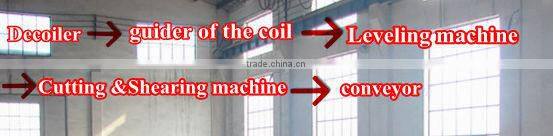

2.Flow Chart of the Automatic alignment sheets machine



Automatic alignment sheets machine



3. Leveler line : (separately describe  )



1). un-coiler (Optional devices)  :



(1). Use of un-coiler : to support and uncoil the steel coil, tenses the coil. Inner  diameter of coil: φ 450 -550mm,  Max  outer  diameter  of coil :

φ1000mm-1250mm. Capacity of un-coiler: 5T

(2).Optional type :

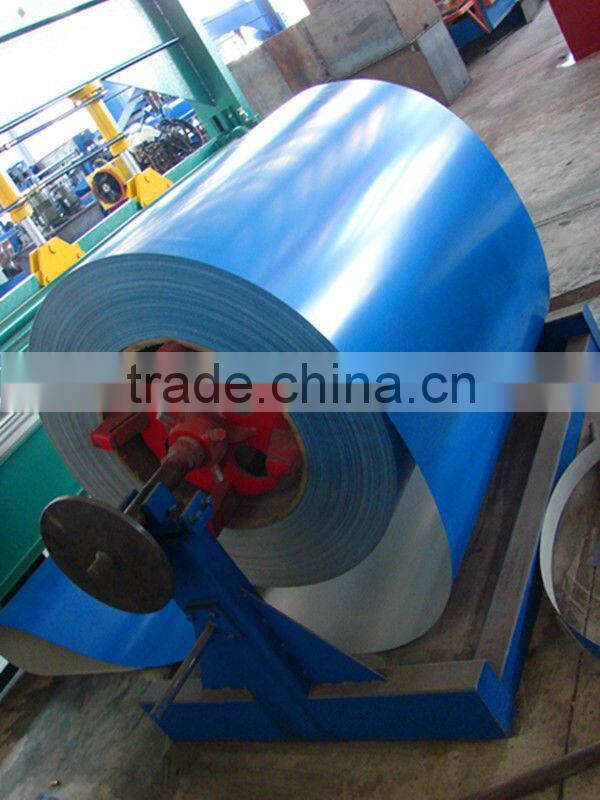

<1>. Manual un-coiler



Automatic alignment sheets machine





<2>. Electric un-coiler Automatic alignment sheets machine

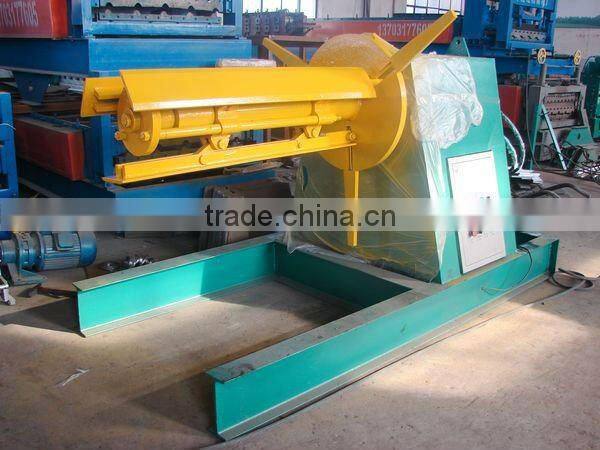

<3>. Hydraulic un-coiler

Automatic alignment sheets machine

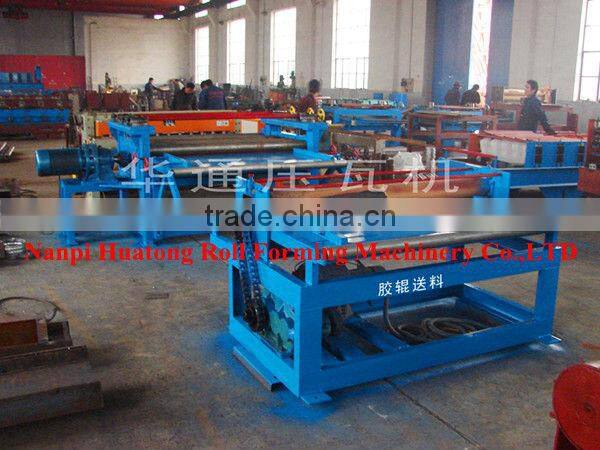

2)Guide of The coil with Roller



 Automatic alignment sheets machine

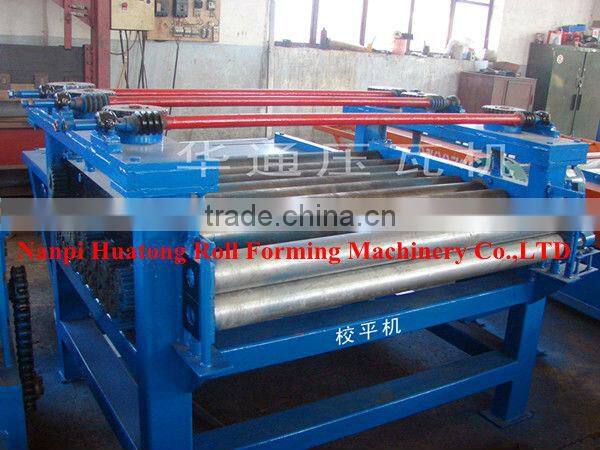

3).Leveler machinery :



Automatic alignment sheets machine





(1) Step of leveler roller : 15 steps

(2) Dia of roller : 95mm

(3) Power : 5.5kw

(4) Effective width : 1.2m

(5) Thickness of material (plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)

(6) Appearance size : 1.2m (length)*1.5m (width)*1.2m (height)

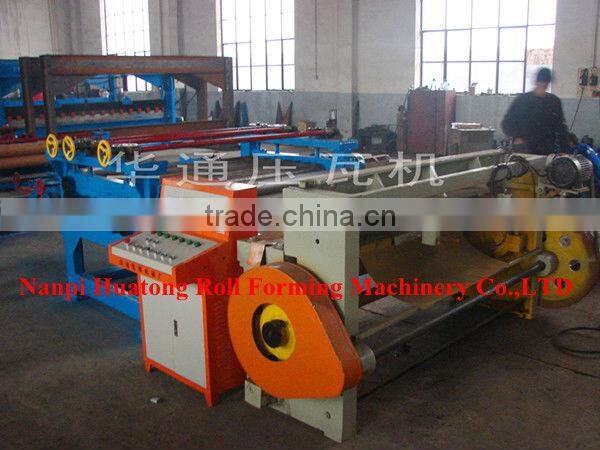

4).Cutting & Shearing machinery :Automatic alignment sheets machine





(1) Form of shearing machinery : mechanical form

(2) Power : 2.2kw

(3) Effective width : 1.2m

(4) Thickness of material(plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)

(5) Appearance size : 0.6m (length)*1.8m (width)*1.2m (height)

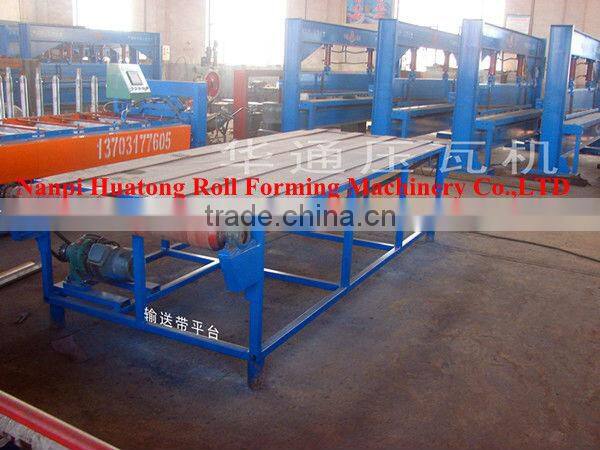

5).Conveyer machinery :



Automatic alignment sheets machine



(1) Shuangjiao roller

(2) Power : 3kw

(3) Effective width : 1.2m

(4) Appearance size : 1.0m (length)*1.7m (width)*1.0m (height
