Help CenterHydraulic Steel 10 Ton Decoiler
Related Products
-
Electric Uncoiler MachineUS$ 2,100 - 5,510MOQ: 1 Set -
Good Price and MOQ of Steel Uncoiling MachineUS$ 2,896 - 6,765MOQ: 1 Set
-
CE Automatic Sheet Decoiler MachineUS$ 2,896 - 6,765MOQ: 1 Set
-
2013 Newest Design Electric DecoilerUS$ 2,896 - 6,765MOQ: 1 Set
-
High Efficiency Steel Uncoiling MachineUS$ 2,896 - 6,765MOQ: 1 Set
Specifications
1.HT 10 ton decoiler2.Motor power:11 kw
3.Width of coil:1600 mm
4.Guarantee:1 year
5.Certification:ISO9001:2000
Hydraulic steel 10 ton uncoiler
1. Main Technical Data of hydraulic 10 ton decoiler machine
| Motor power of decoiler | 11kw |
| Motor power of Hydraulic station | 11kw |
| Inside dia of coil | φ508mm,φ610mm |
| Outside dia of coil | φ1800mm |
| Width of coil | 1600mm |
| Weight of coil | 25T |
| Speed of decoiling | 0-20m/min |
| Pressure of hydraulic system | 10Mpa |
| Voltage of control | 3P/440V/60HZ |
| Voltage of hydraulic pressure | DC24V |
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 11KW
(3) Motor power of Hydraulic station : 11KW
(4) Inside dia of coil : φ508mm,φ610mm
(5) Outside dia of coil : φ1800mm
(6) Width of coil : 1600mm
(7) Weight of coil : 25T
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1700mm×1800mm
(12) Voltage of control : 3P/440V/60HZ
(13) Voltage of hydraulic pressure : DC24V

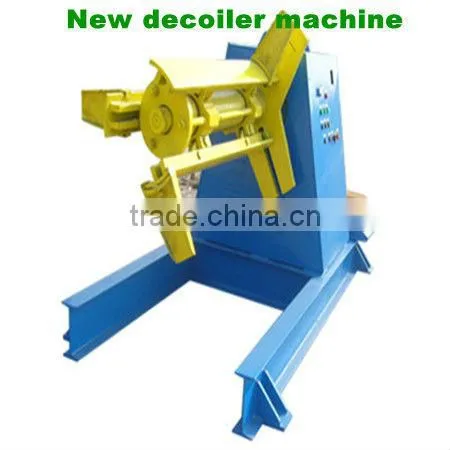

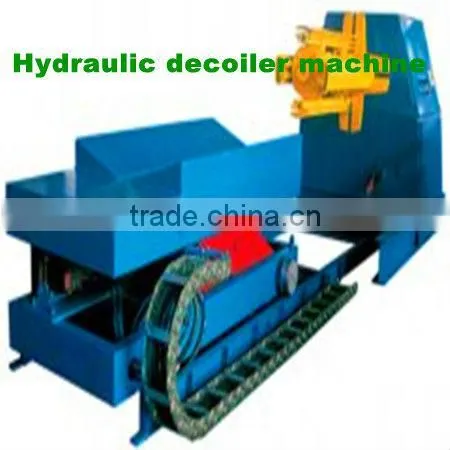

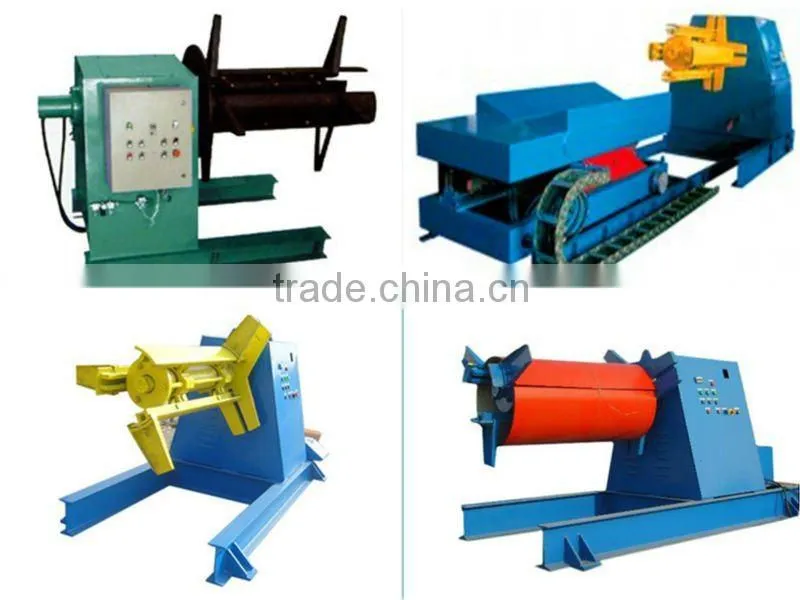

2. Picture of machine: hydraulic 10 ton decoiler
3. Certificaion
4. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
5. With 20 years professional manufacture experience
6. Prompt Delivery&Competitive Price
7. Main markets: Middle East, Europe, North America, Africa,Southeast Asia.
Welcome your inquiry.
