Specifications
1.10 years experience;2.500 sets of machines produced;
3.CE certificate passed;
4.steel uncoiler;
5.ISO.
1. Name of production line :

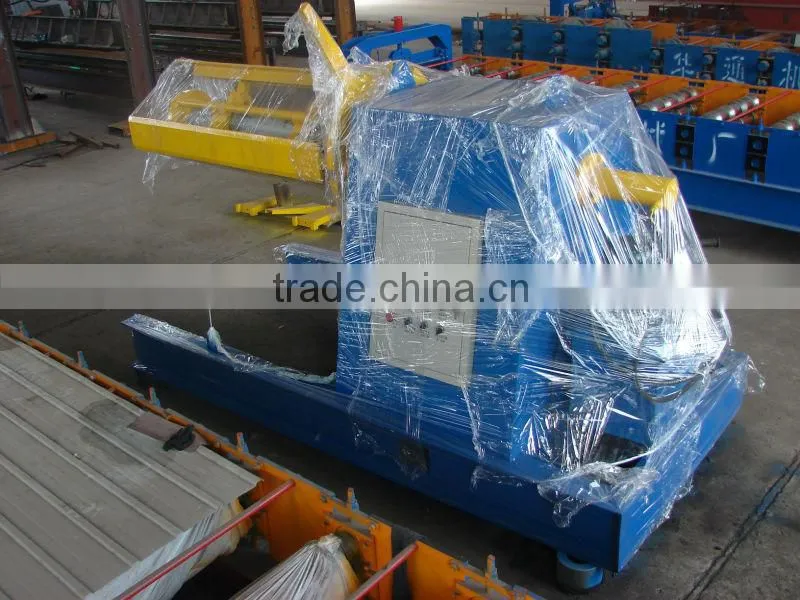

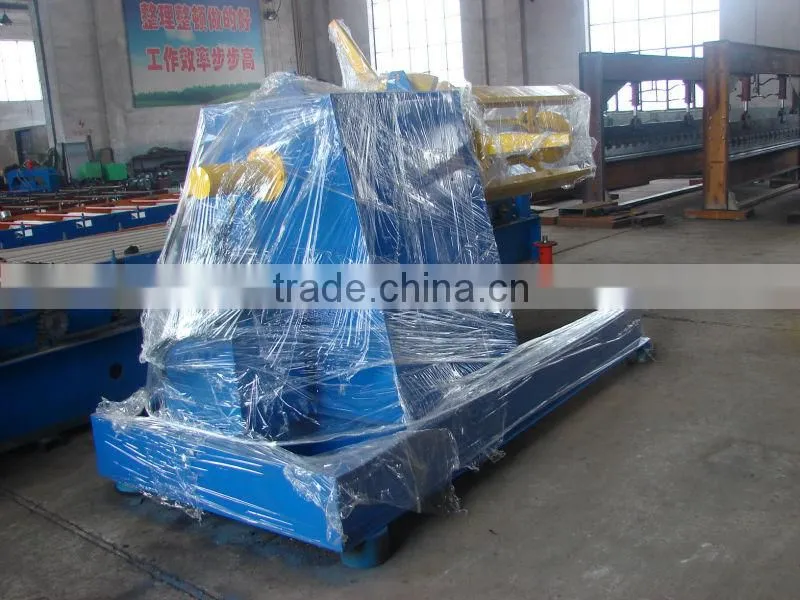

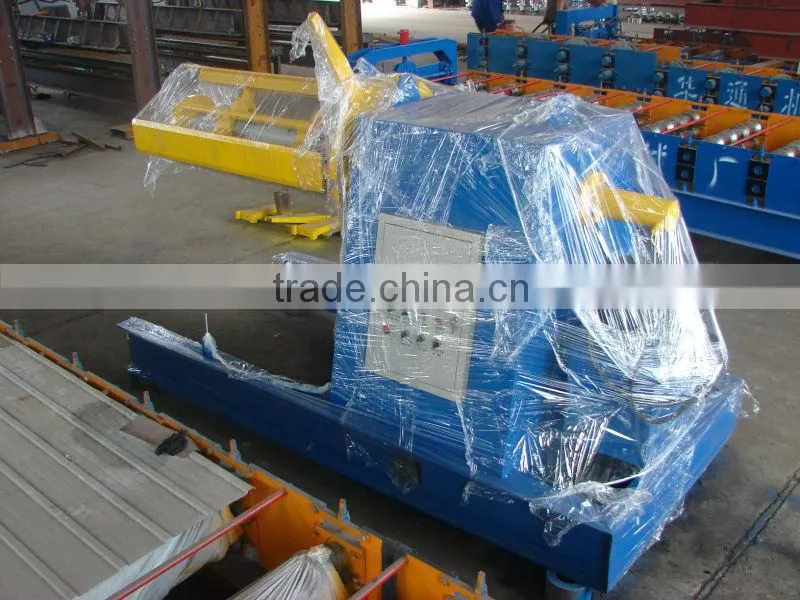

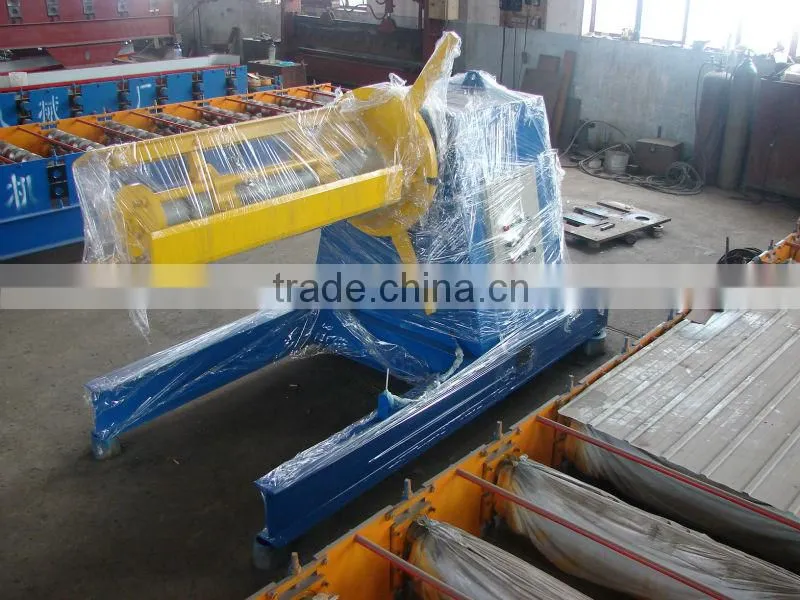

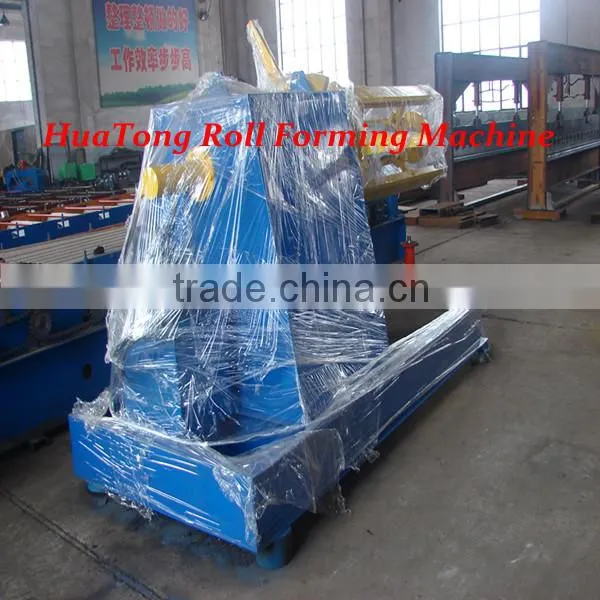

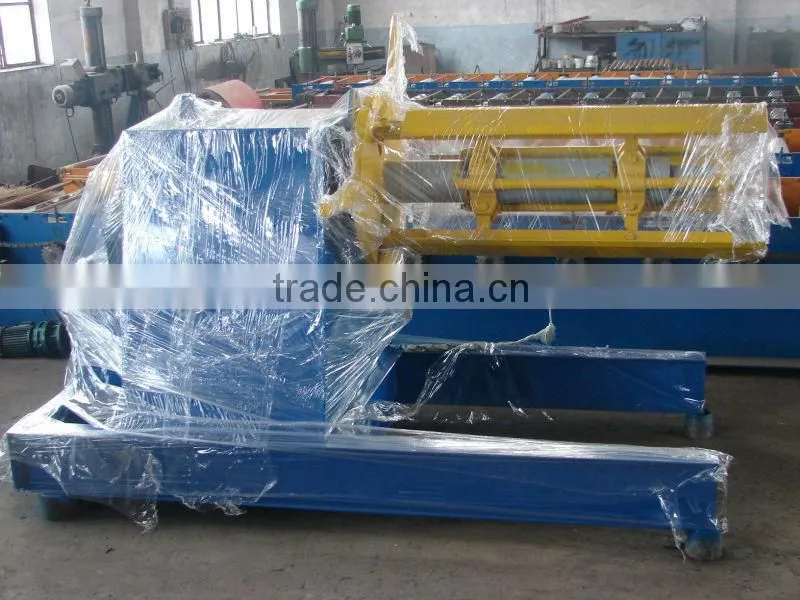

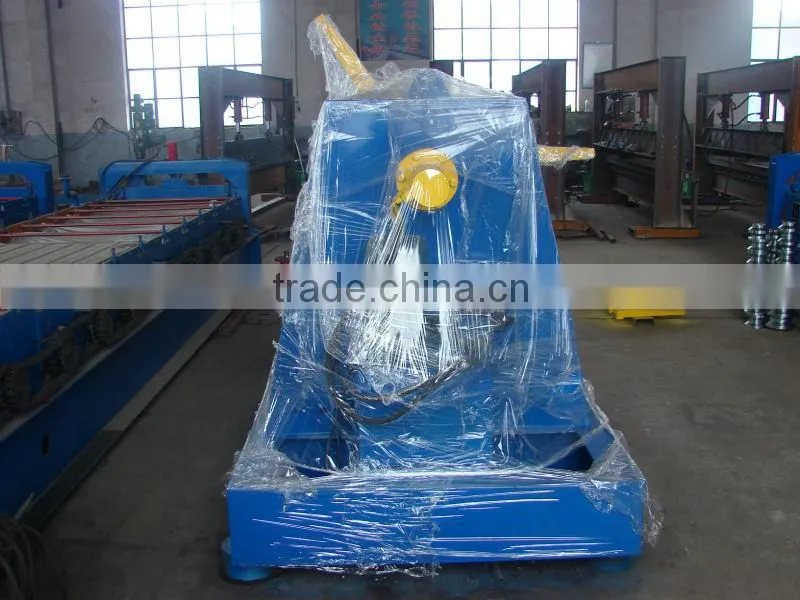

Steel Uncoiler
2. Technical specification:
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 3KW
(3) Motor power of Hydraulic station : 2.2KW
(4) Inside dia of coil : 500-530mm
(5) Outside dia of coil : 1300mm
(6) Width of coil : 1250-1300mm
(7) Weight of coil : 6T
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1250mm×1800mm
(12) Voltage of control : 3P/440V/60HZ
3.Details :
4. With 20 years professional manufacture experience
5. Prompt Delivery&Competitive Price
6. Main markets of steel uncoiler : Middle East, Europe, North America, Africa,Southeast Asia.
7. After-sales service :
1).We provide the technical support for whole life of our machines.
2).If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtrip ticket etc.
Note:Inquiries are typically answered within 24 hours.
Welcome your inquiry.
