Prevent Thief Alarm With LED Display,soft Keypad Buttons

Specifications

Prevent thief alarm
1.4-ways of arm/disarm
2.8 wired zones optional
3.One-key arm function
4.Led display,Upgrade design

Prevent thief alarm system with LED screen display,soft keypad buttons
Model:CX-3B



Brief Description:

1.LED displays, Rubber keypad buttons ,Upgrade design
2.4-ways of arm/disarm
3.One-key arm function, easy operation
4.15 wireless zones, 1 dedicated zones for remote ,8 wired zones optional

5. Low-voltage Indicators

6. One-key arm function, easy operation

7. Upto 6 groups of telephone numbers

8. Supports CID uploading to CMS



Basic Functions:

1.Blue LCD looks nice and upgraded .More comfortable operation with soft keypad buttons.
2. Upto 6 phone numbers(2 for management center,4 for personal) can be pre-stored,and then dial in sequence when alarming.
3. 15 wireless zones(Each zone supports up to 4 sensors) + 1 dedicated zones for remote (supports up to 10 remotes). 8 wired zones can be extended,and each wired zone can be separately armed and disarmed.
4. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.

5. 4-ways of arm/disarm: remote controller, built-in keypad, wireless keypad (optional device), phone call.
6. Non-volatile chip, information stored automatically when off power.
7. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
8. Built-in Li-Ion backup batter, available in ACDC. System self-check , alert of phone line disconnection, low backup battery power and no external power.

9. Available in both AC/DC with Low-voltage Indicators.
10. One-key arm function. Learning sensors to alarm host, very easy operation.
11. Supports CID uploading to CMS(Center monitoring Station).
12.Wireless or wired siren are optional for louder alarming sound.

13.More functions can be realized with more optional accessories(Note: consultation in advance is necessary)



Extended Functions:

8 wired zones

Specifications/Technical Parameters:

1. Power supply: AC=110~240V, DC=9~15V 1A
2. Static current: ≤60mA
3. Alarm current: ≤380mA
4. Working condition: Temperature: -10ºC ~ 50ºC Humidity: <80%
5. Wireless frequency: 315Mhz/433Mhz
6. Product dimension (Host): 180*120*38 (mm)

7. Maximum available quantity of remote controllers: 10 PCS

8. Maximum available quantity of wireless sensors: 60 PCS

9. Back-up battery: Li-ion battery,4.8V/600MA

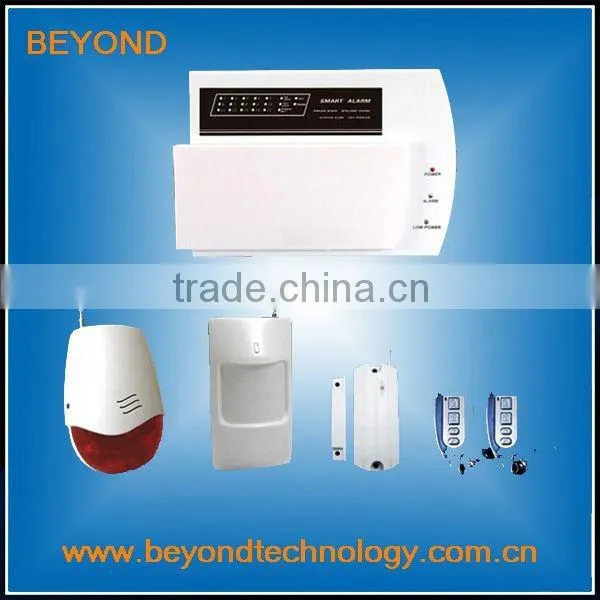

Accessories in standard package:

1. alarm host *1pc

2. wireless wide-range PIR detector *1pc

3. wireless door magnet *1pc

4. wireless indoor siren *1pc

5. remote control/key chain * 2pcs

6. power adaptor *1pc



Optional Accessories:

1.Gas alarm

2.Smoke alarm

3.Wireless out door siren

4.Wireless keypad

5.GSM dialer

6.Wireless curtain PIR sensor



Packing figure:
